Door Lock/Indicator Schematics

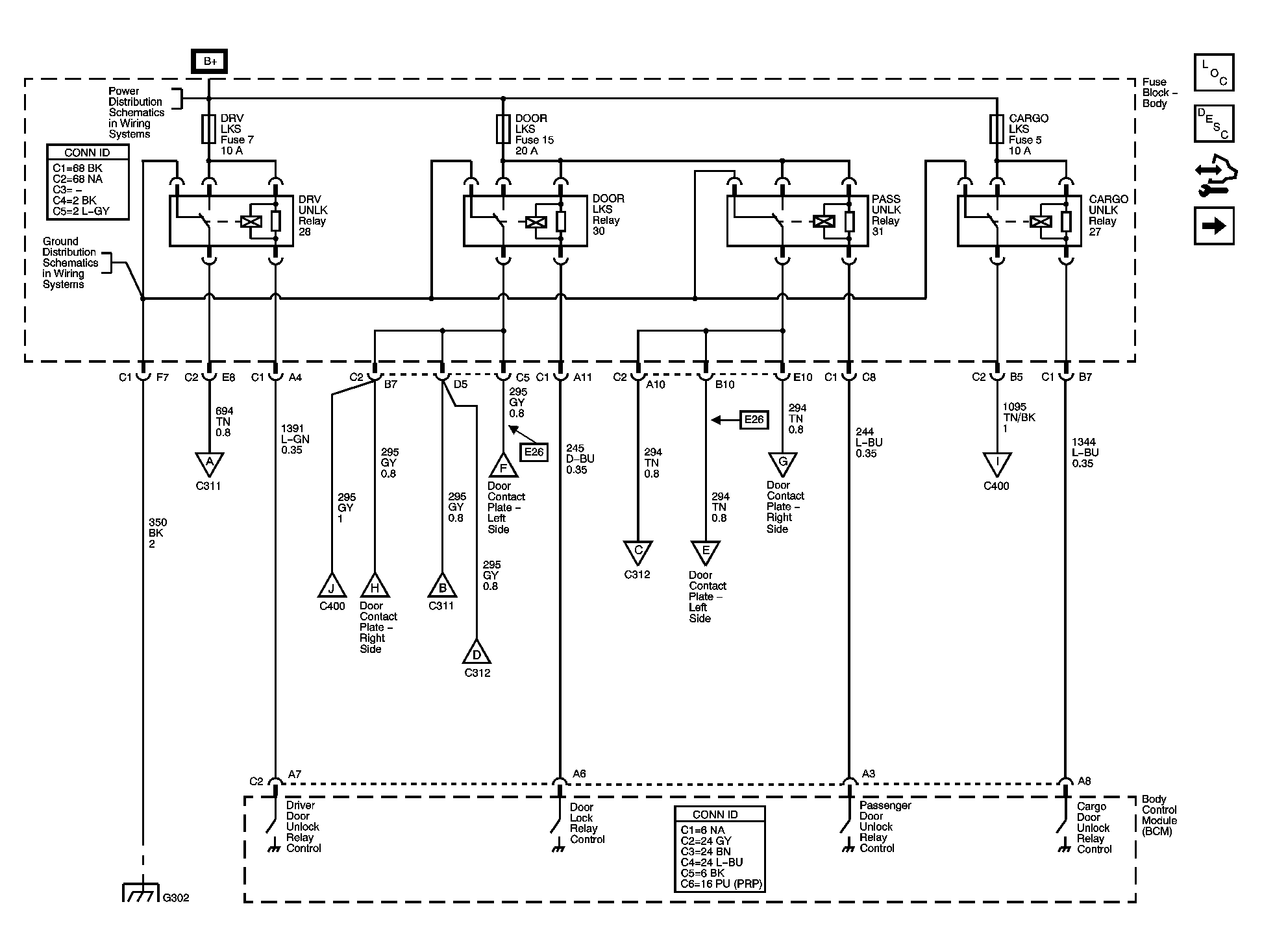

Fig 1: Lock and Unlock Control Schematics
GM1409462Courtesy of GENERAL MOTORS CORP.

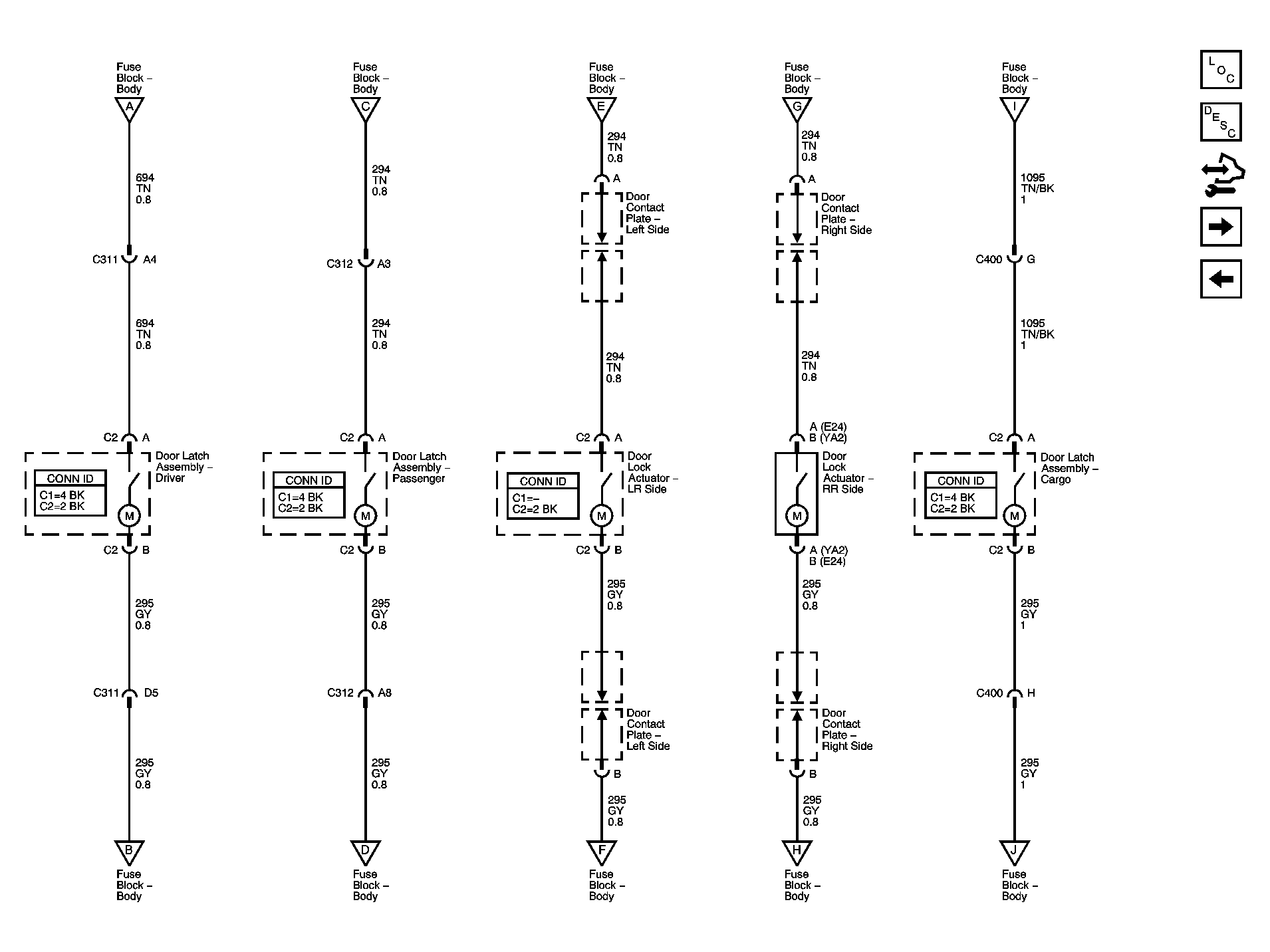

Fig 2: Door Latches and Actuators Schematics
GM1409463Courtesy of GENERAL MOTORS CORP.

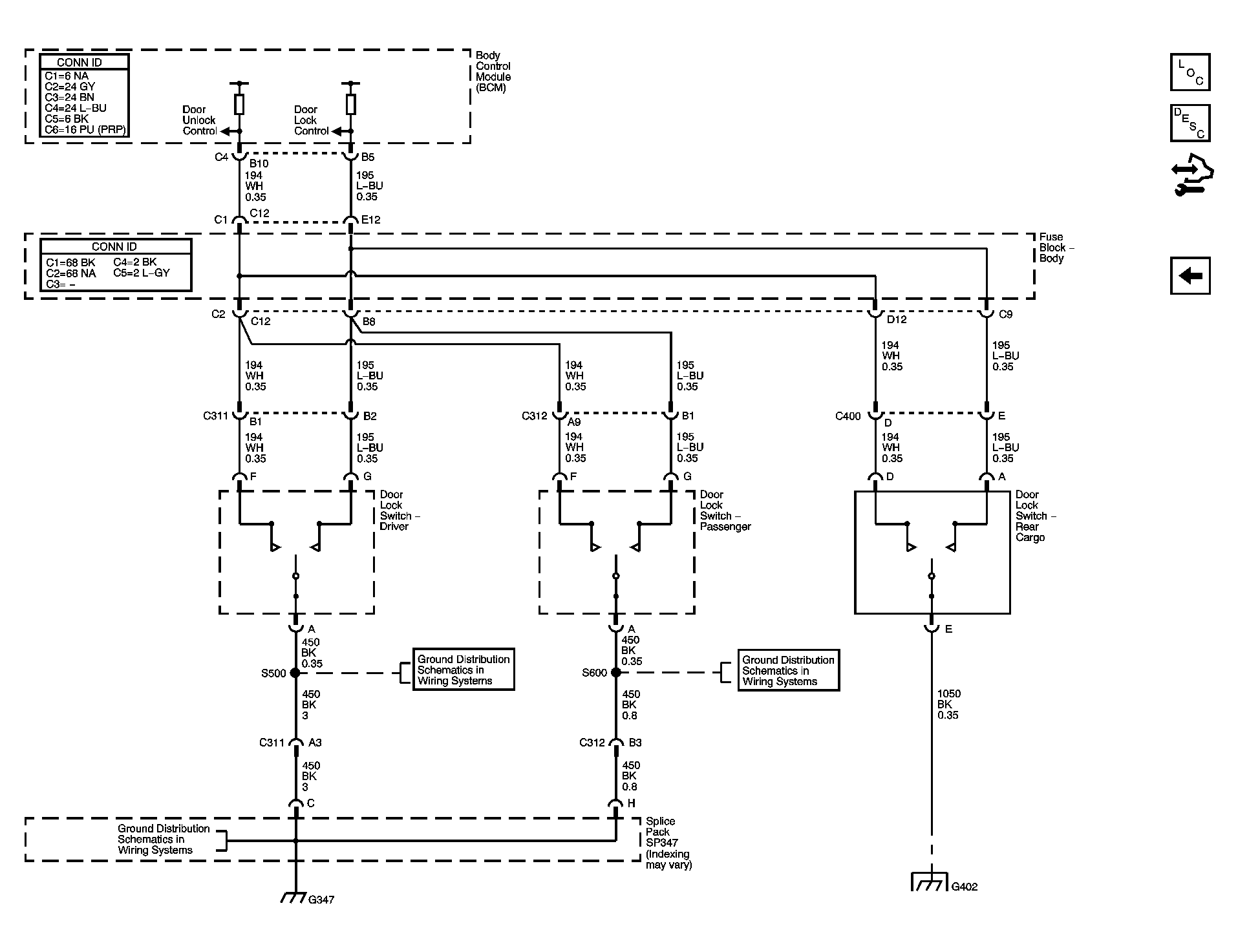

Fig 3: Switches Schematics
GM1409464Courtesy of GENERAL MOTORS CORP.
