Installation Procedure

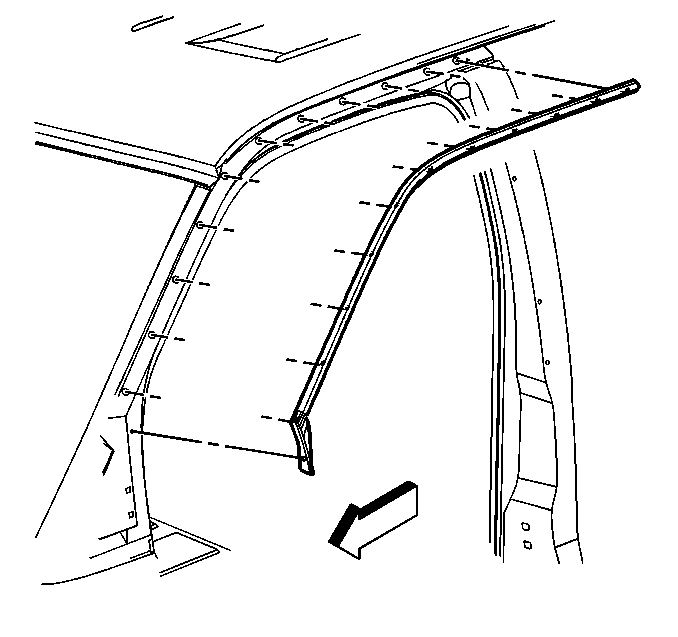

    Fig 1: Drip Rail Weatherstrip
    GM312484Courtesy of GENERAL MOTORS CORP.
  1. Place the weatherstrip into the roof rail.
  2. Press the retainers into the weatherstrip and then into the holes in the roof rail.
