Removal Procedure

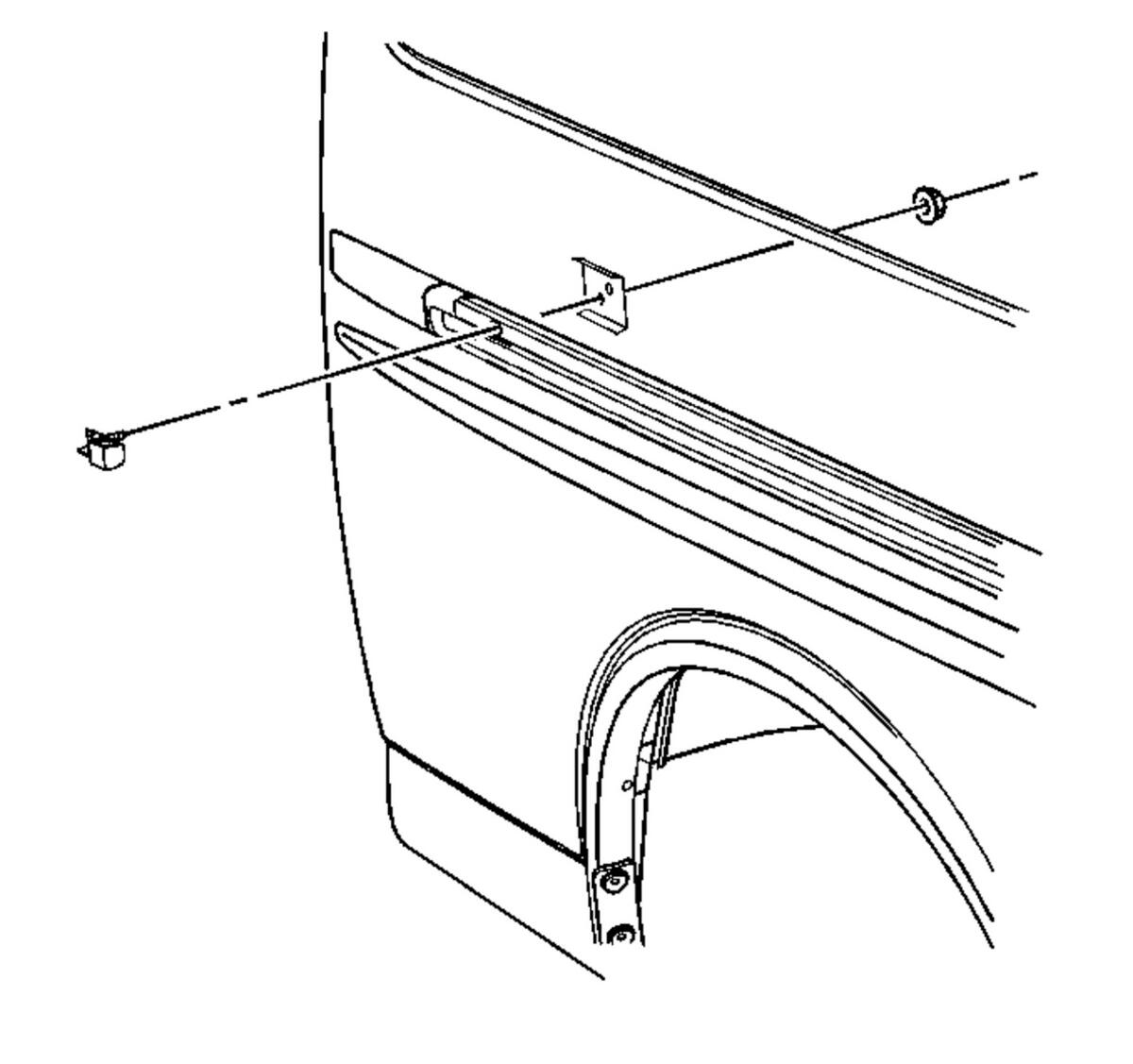

    Fig 1: Sliding Door Stop
    GM334046Courtesy of GENERAL MOTORS CORP.
  1. Remove the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side in Interior Trim.
  2. Remove the nut that retains the sliding door stop to the body.
  3. Remove the sliding door stop from the vehicle.
