Installation Procedure

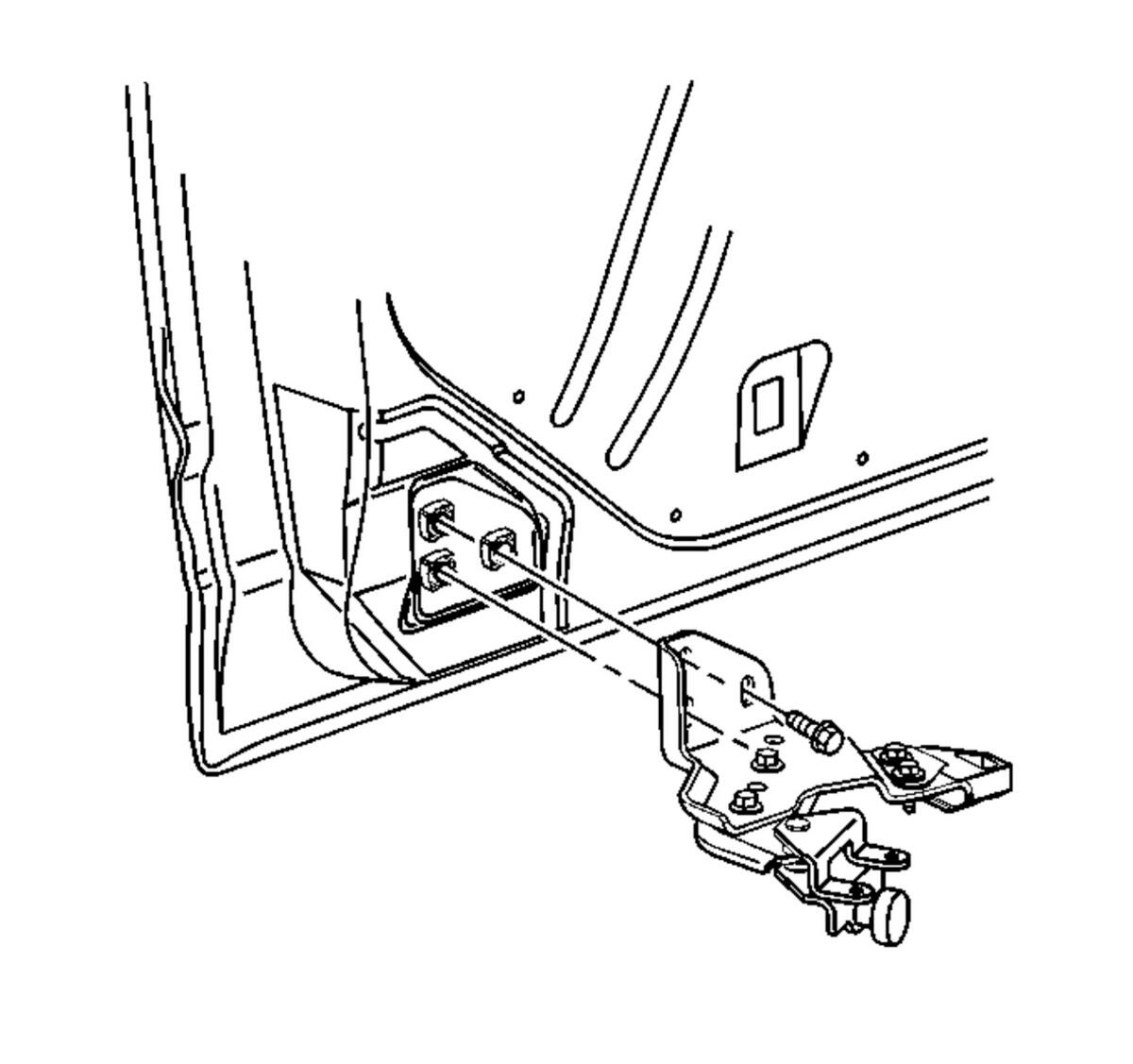

    Fig 1: Sliding Side Door Lower Roller Bolts
    GM334048Courtesy of GENERAL MOTORS CORP.
  1. Install the sliding door lower roller bracket to the vehicle.
  2. Install the sliding door lower roller bracket to the track.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts that retain the sliding side door lower roller bracket to the door.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  4. Install the sliding side door check assembly. Refer to Sliding Door Check Replacement .
  5. Install the side door stepwell mat. Refer to Mat Replacement - Stepwell in Interior Trim.
