Installation Procedure

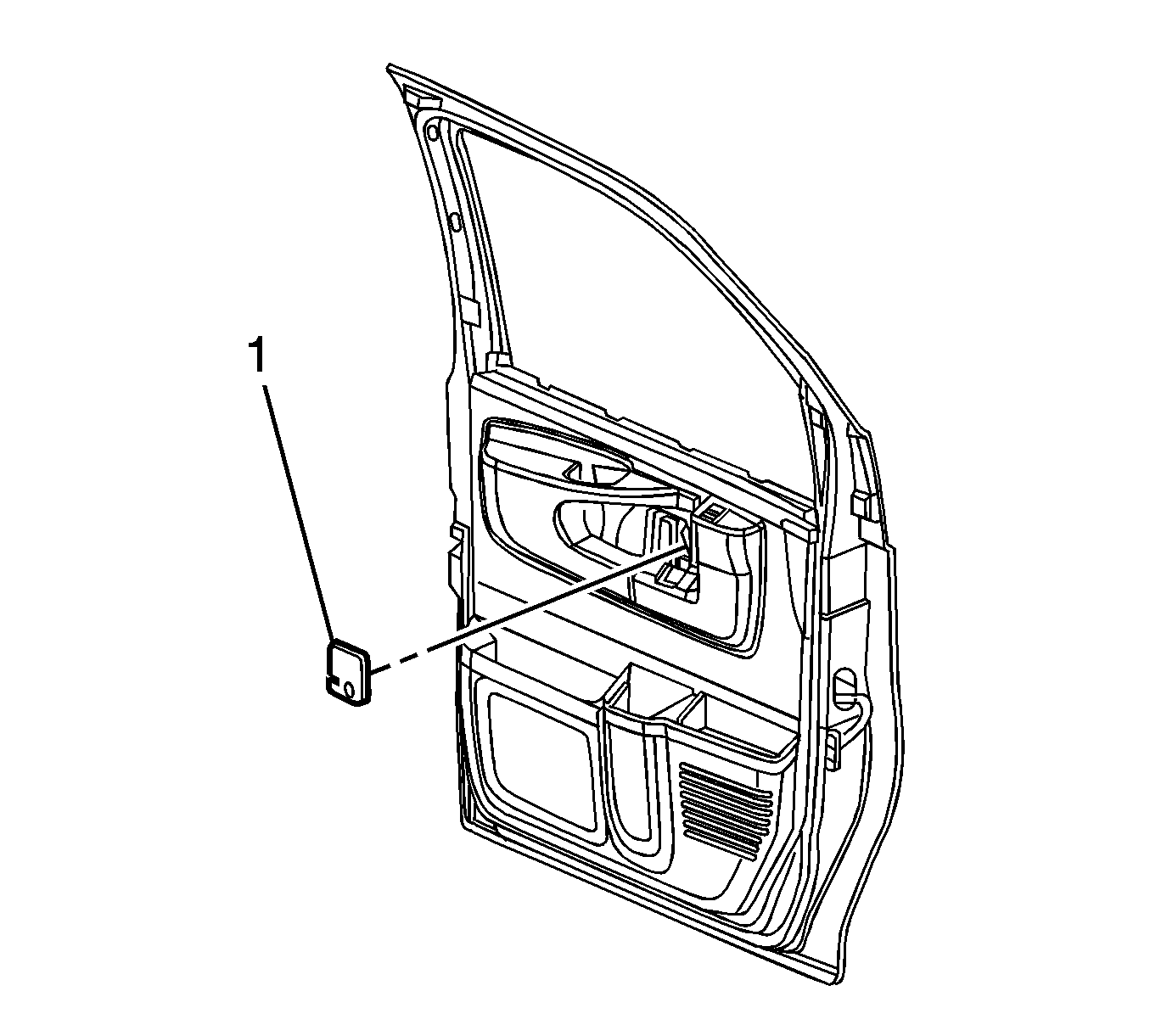

    Fig 1: Inside Front Door Handle Bezel
    GM879671Courtesy of GENERAL MOTORS CORP.
  1. Align the inside door handle bezel (1) to the front door trim plate.
  2. Press the door handle bezel towards the door trim panel in order to engage the retaining tab.
