Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .

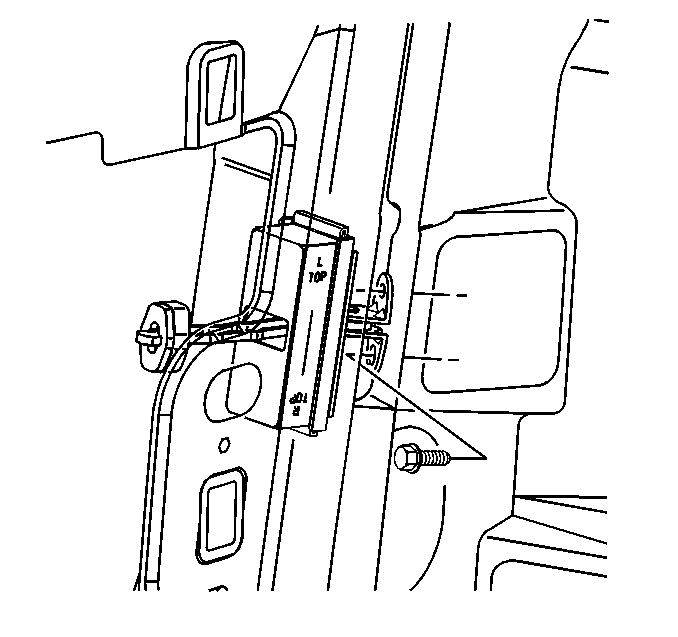

    3. Fig 1: Front Door Link To Door Jamb
    GM333951Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts that retain the door link to the door jamb.

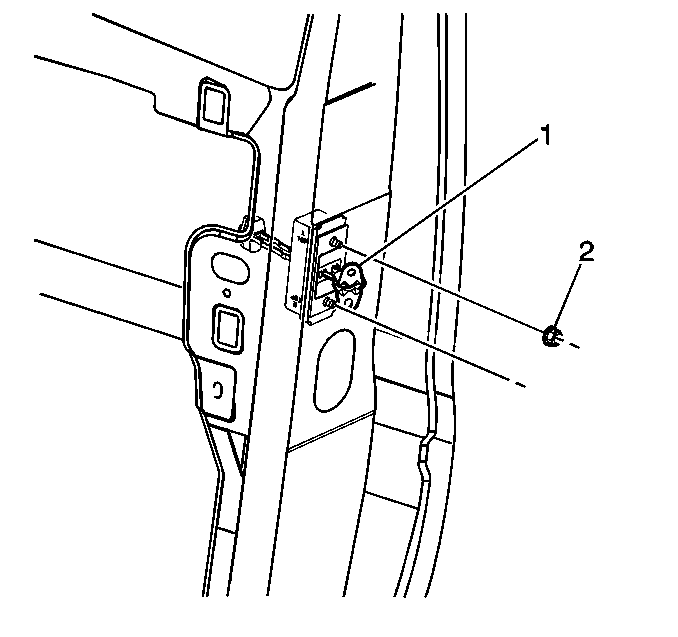

    4. Fig 2: Front Door Link Nuts
    GM333952Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts (2) that retain the door link (1) to the door.
  5. Remove the door link (1) from the door.
