Removal Procedure

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Open and support the cargo door.
NOTE: Refer to Liftgate/Hood Assist Rod Notice in Cautions and Notices.

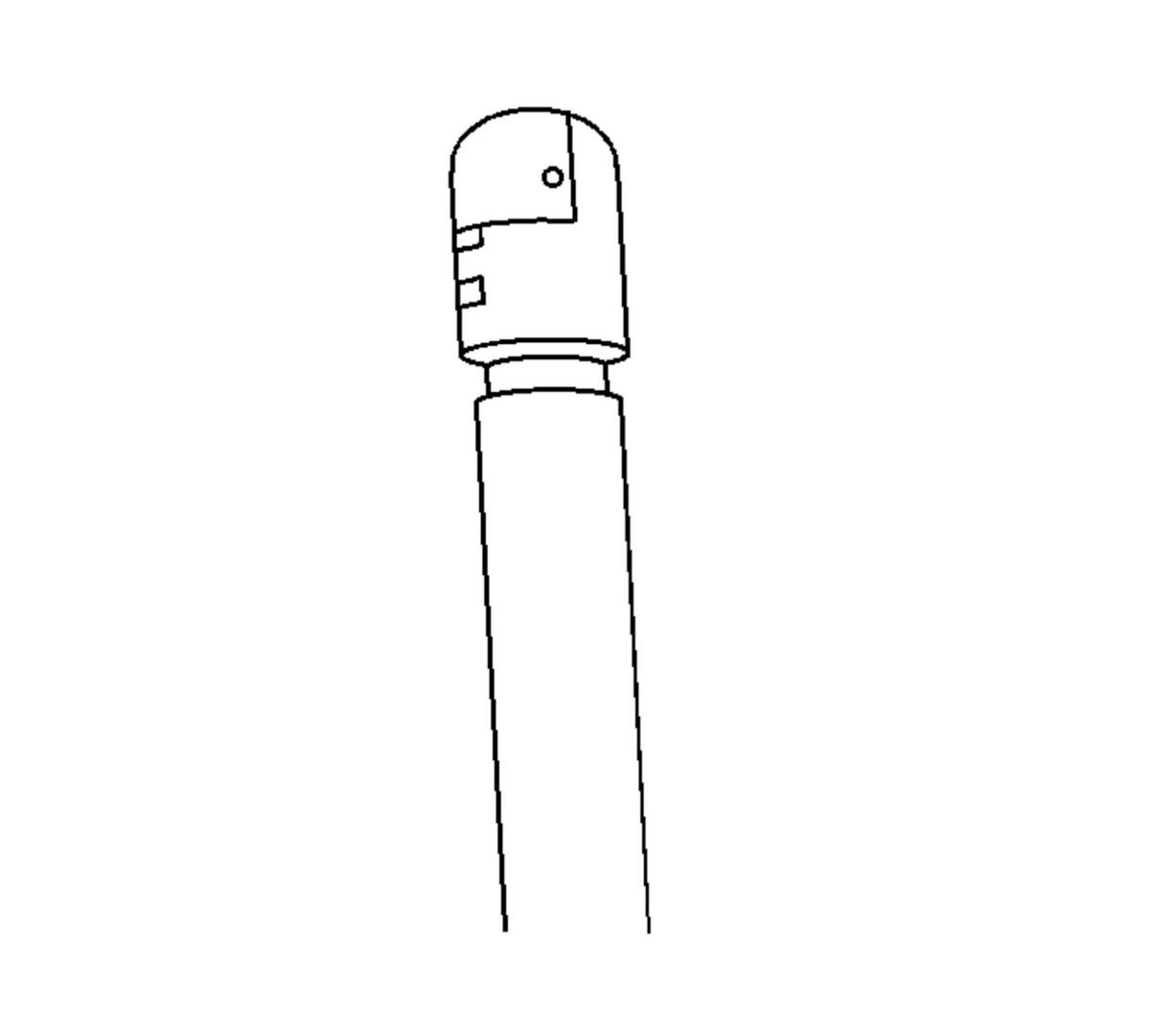

Fig 1: Ball Stud Socket & Retainer Clip

Courtesy of GENERAL MOTORS CORP.

Using a flat bladed tool pry the retainer clip away from the ball stud socket.

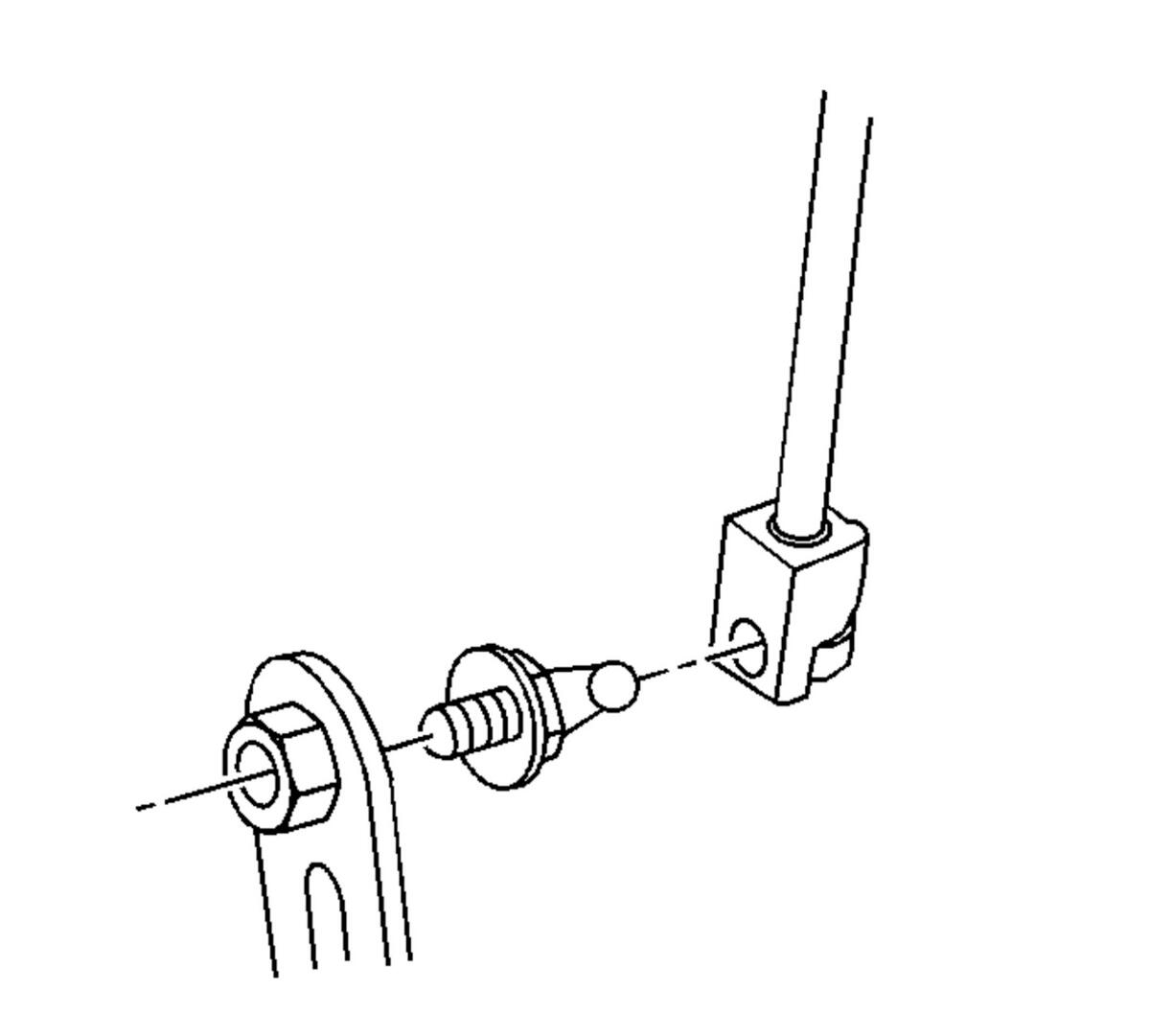

Fig 2: Assist Rod Upper End

Courtesy of GENERAL MOTORS CORP.

Remove the upper end of the assist rods from the ball stud.

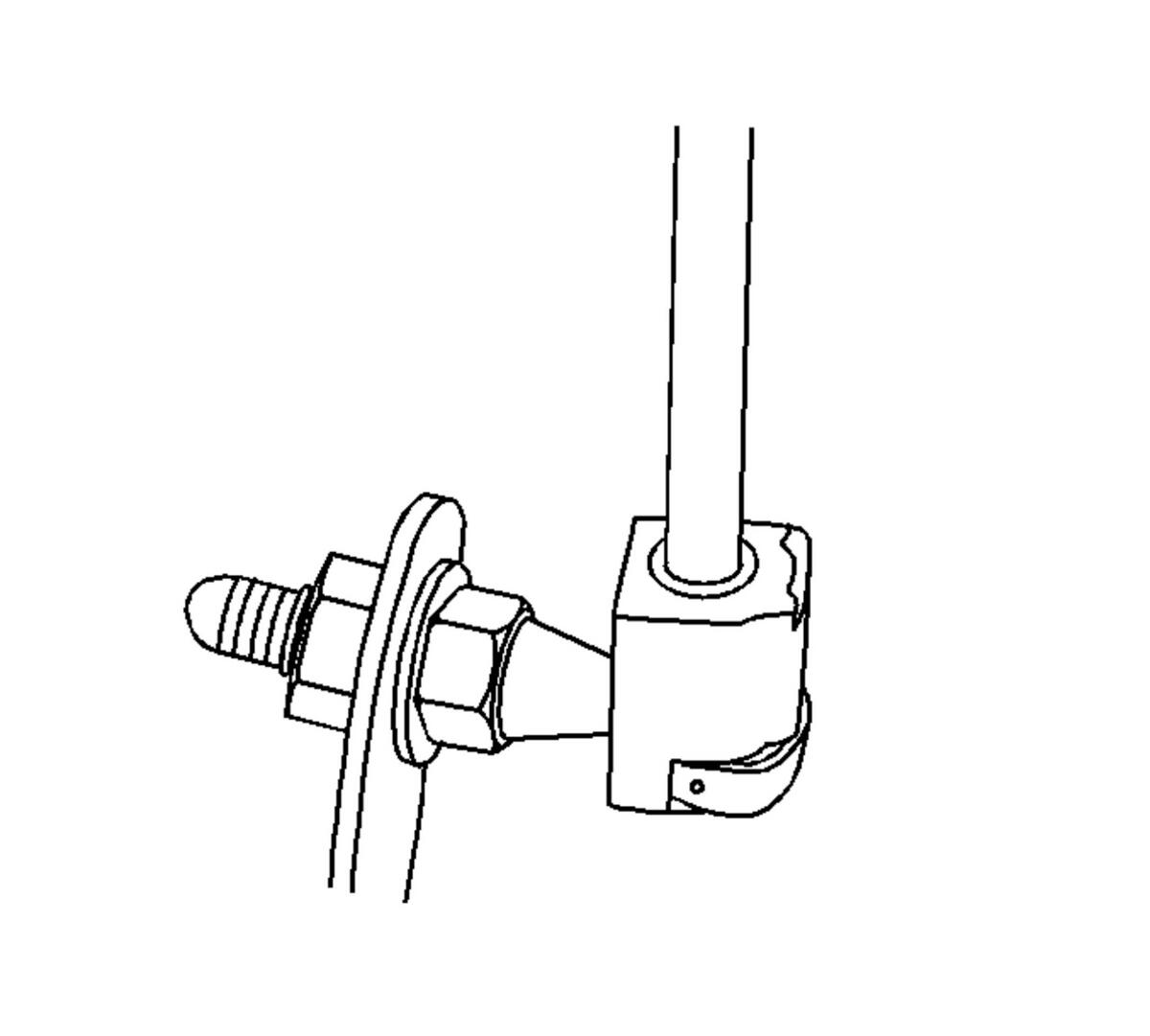

Fig 3: Assist Rod Lower End

Courtesy of GENERAL MOTORS CORP.

Remove the lower end of the assist rods from the ball stud.
Remove the assist rods from the cargo door.

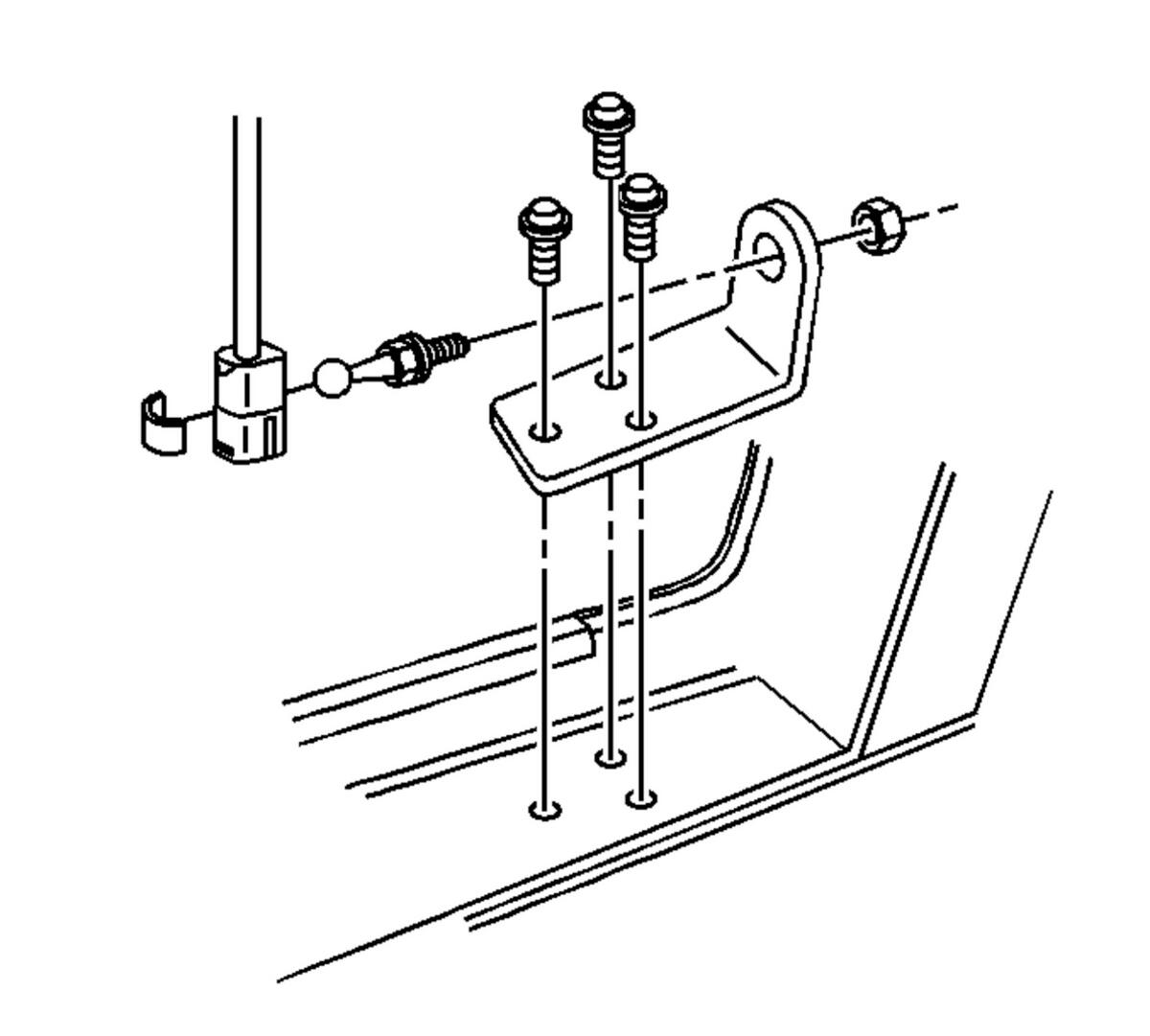

Fig 4: Ball Stud Bracket & Bolts

Courtesy of GENERAL MOTORS CORP.

Remove ball stud bolts.
Remove ball stud bracket.
