Installation Procedure

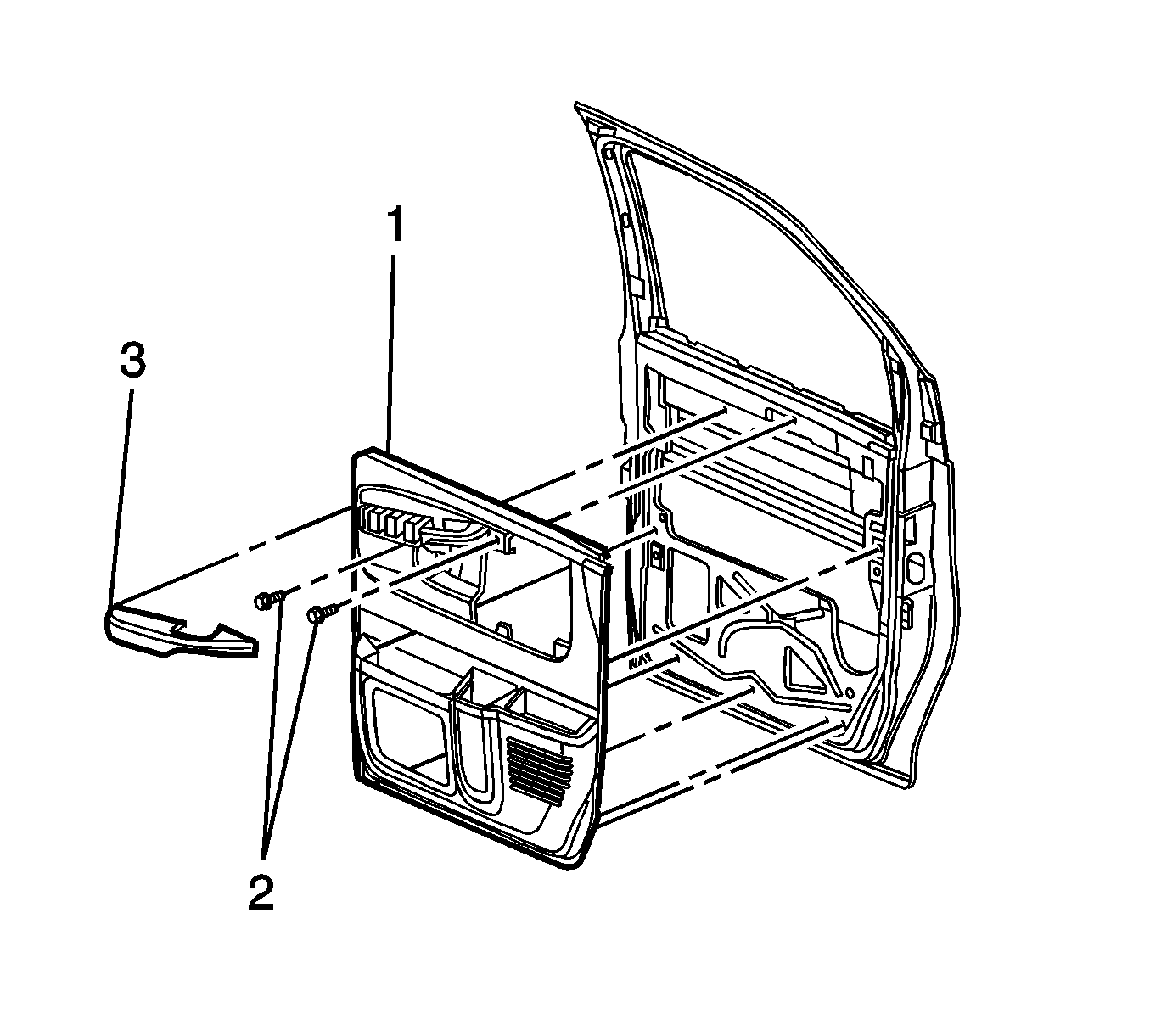

    Fig 1: Armrest, Door Trim Panel Screws & Door Trim Panel
    GM879678Courtesy of GENERAL MOTORS CORP.
  1. Align the armrest (3) to the front door panel.
  2. Press the armrest (3) towards the door trim panel in order to engage the armrest clips.
