Power Door Systems Component Views

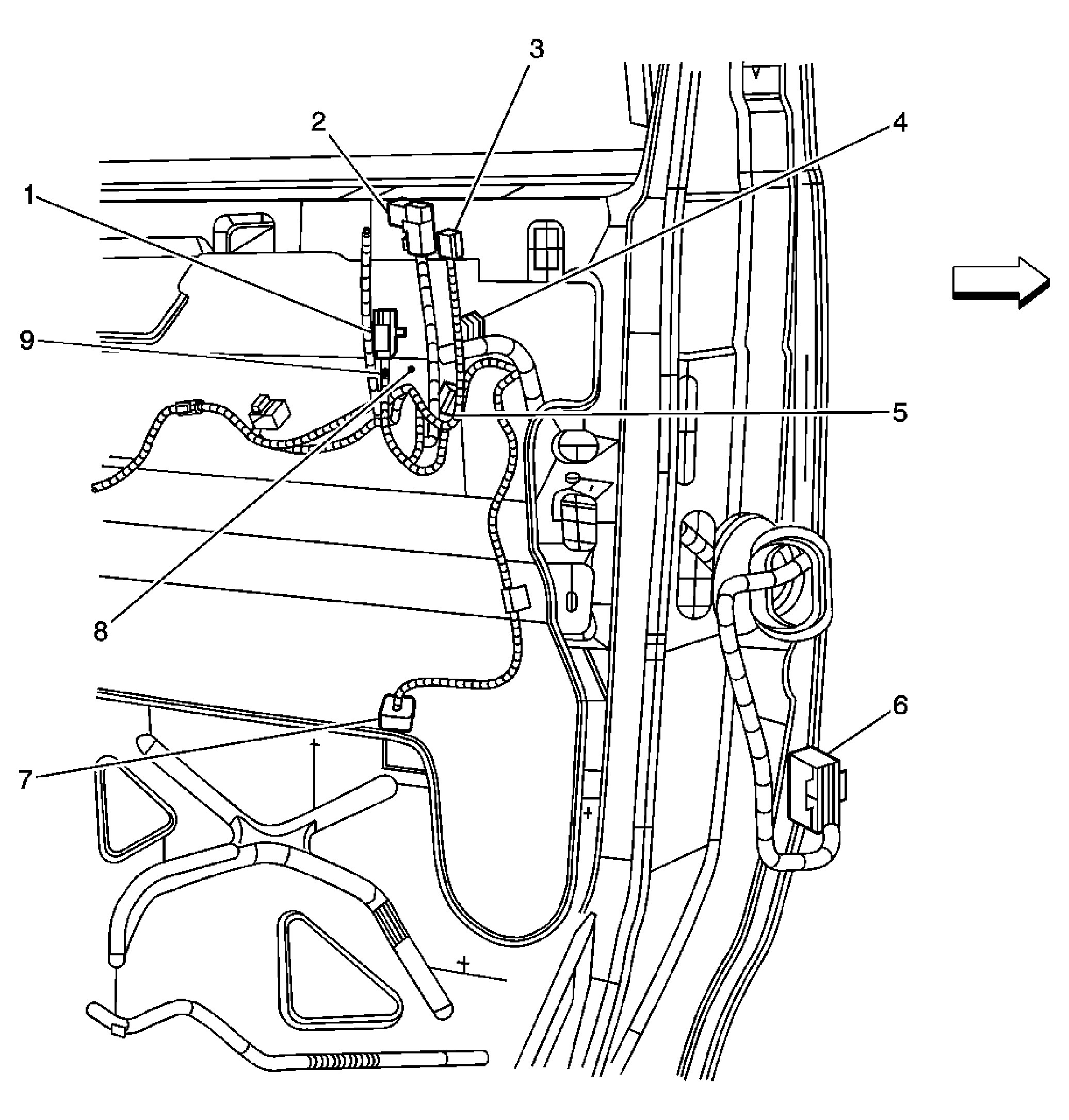

Fig 1: Component View - Driver Door Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Connector - Driver (DE5/DE7)
2	Window Switch Connector - Driver (A31)
3	Outside Rearview Mirror Switch Connector (DE5/DE7)
4	Window Motor Connector - Driver (A31)
5	Door Lock Switch Connector - Driver (AU3)
6	C311
7	Speaker Connector - LF Door
8	S500 (AU3)
9	S502 (DE5/DE7)

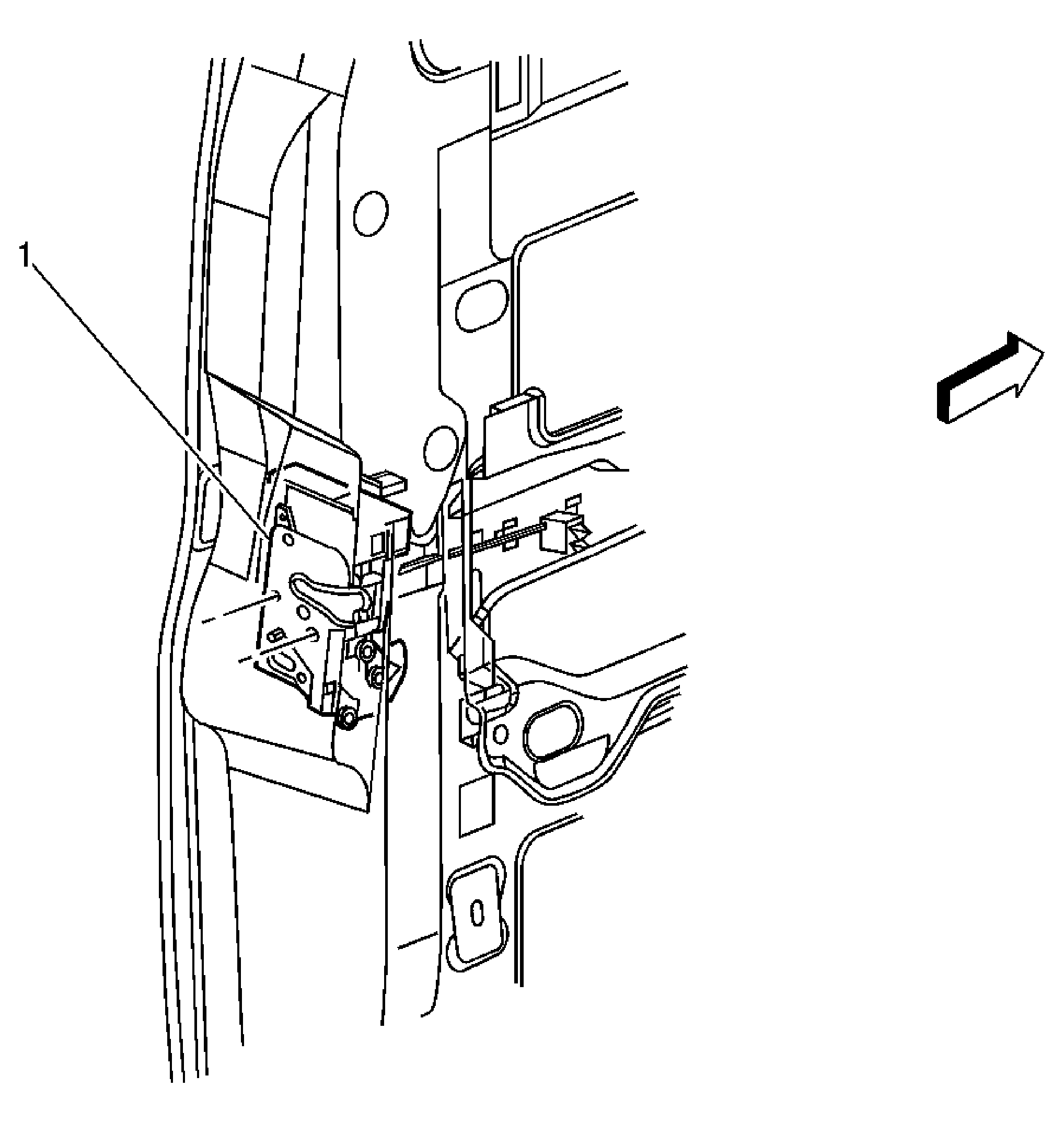

Fig 2: Component View Of Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Driver

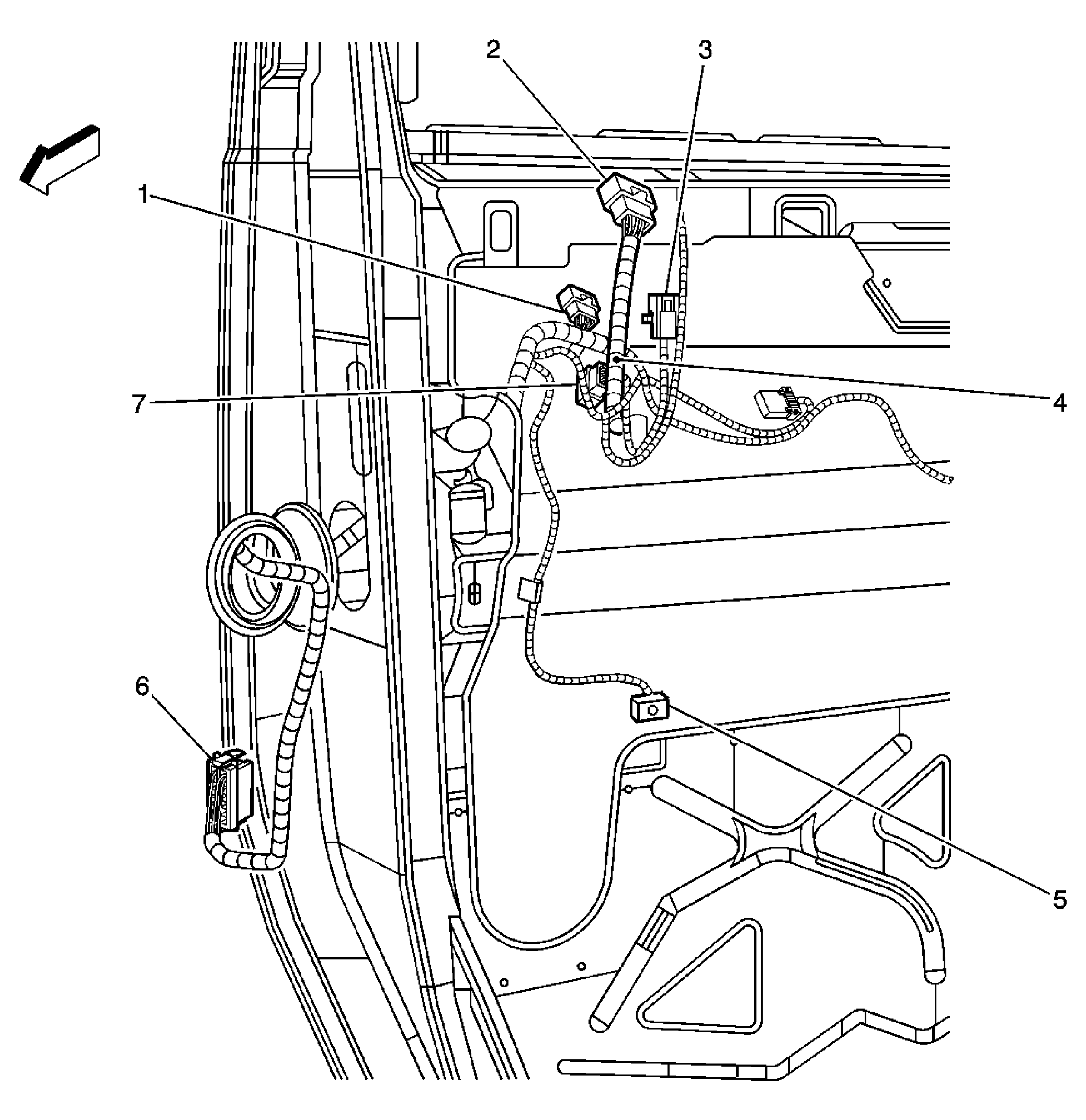

Fig 3: Component View - Passenger Door Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor Connector - Front Passenger (A31)
2	Window Switch Connector - Front Passenger (A31)
3	Outside Rearview Mirror Connector - Passenger (DE5/DE7)
4	S600 (AU3)
5	Speaker Connector - RF Door
6	C312
7	Door Lock Switch Connector - Front Passenger (AU3)

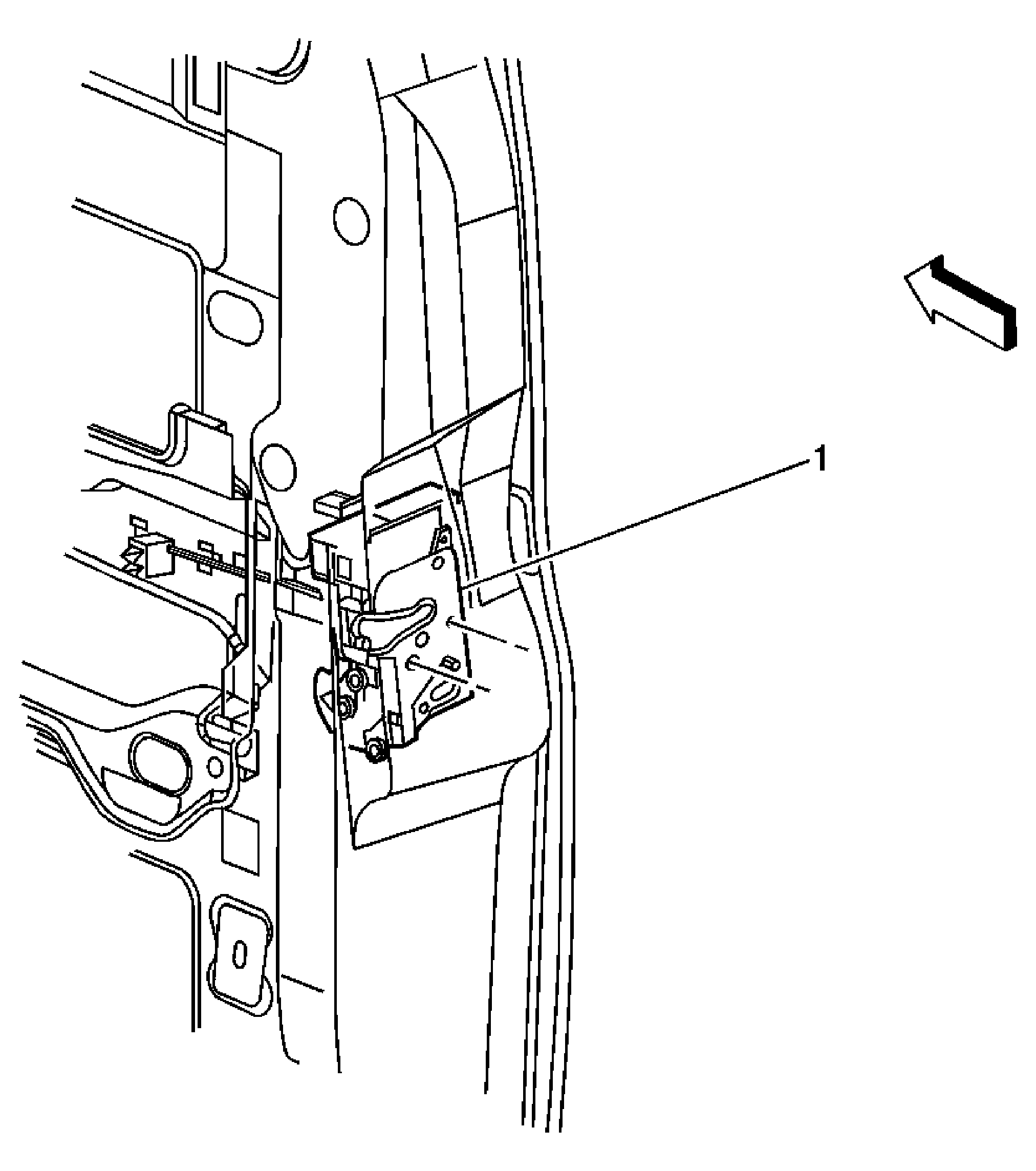

Fig 4: Component View Of Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Passenger

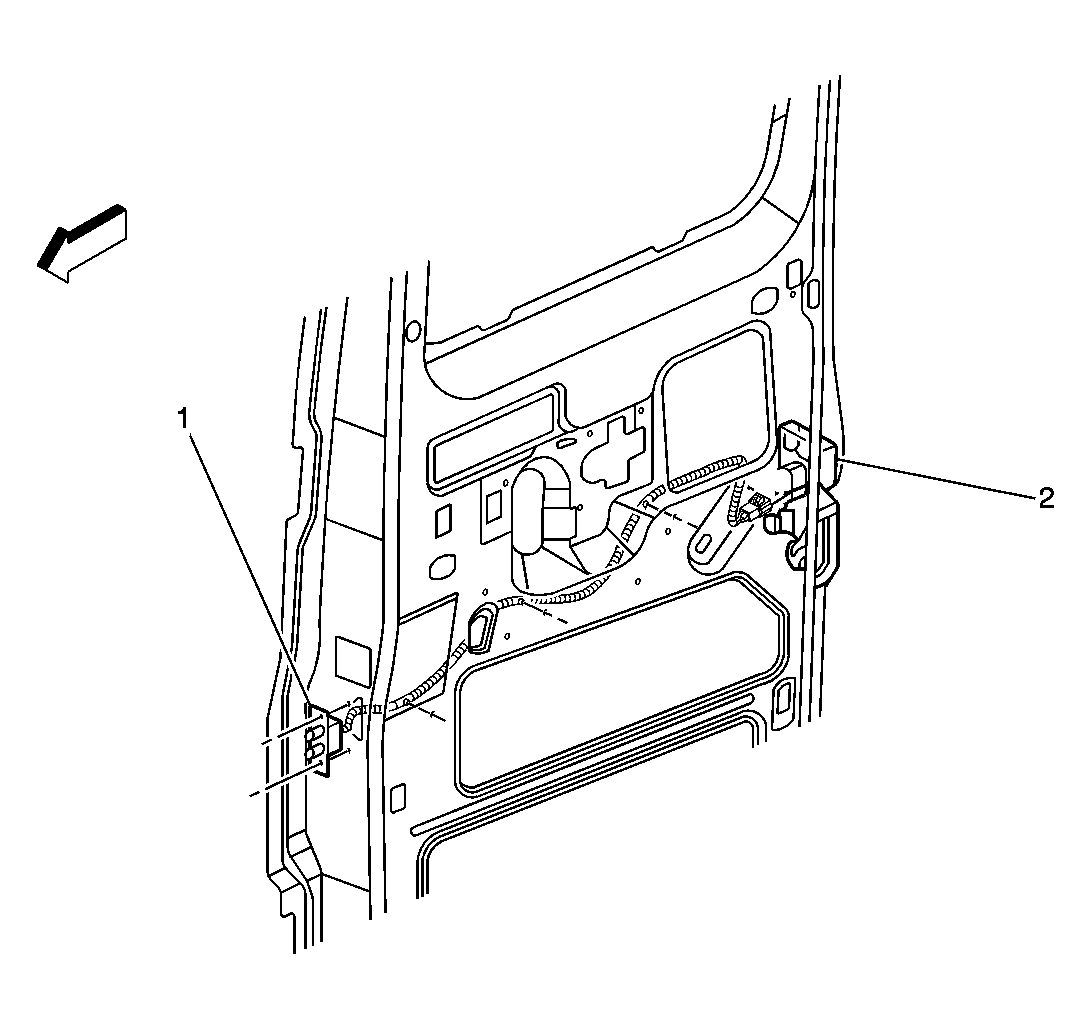

Fig 5: Component View Of Left Side Door (E26)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - LR Side (AU3)
2	Door Contact Plate - Left Side (AU3)

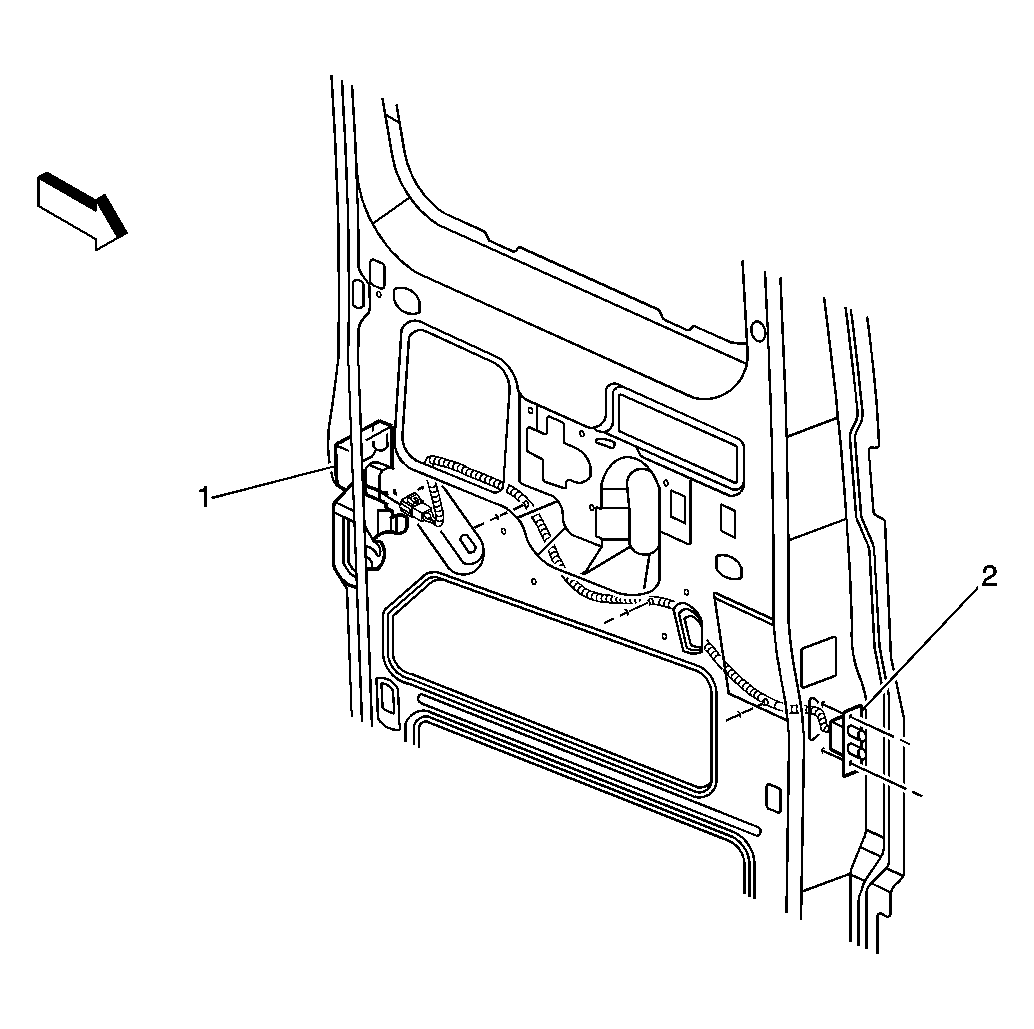

Fig 6: Component View Of Right Side Door (E24)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Contact Plate - Right Side (AU3)
2	Door Lock Actuator - RR Side (AU3)

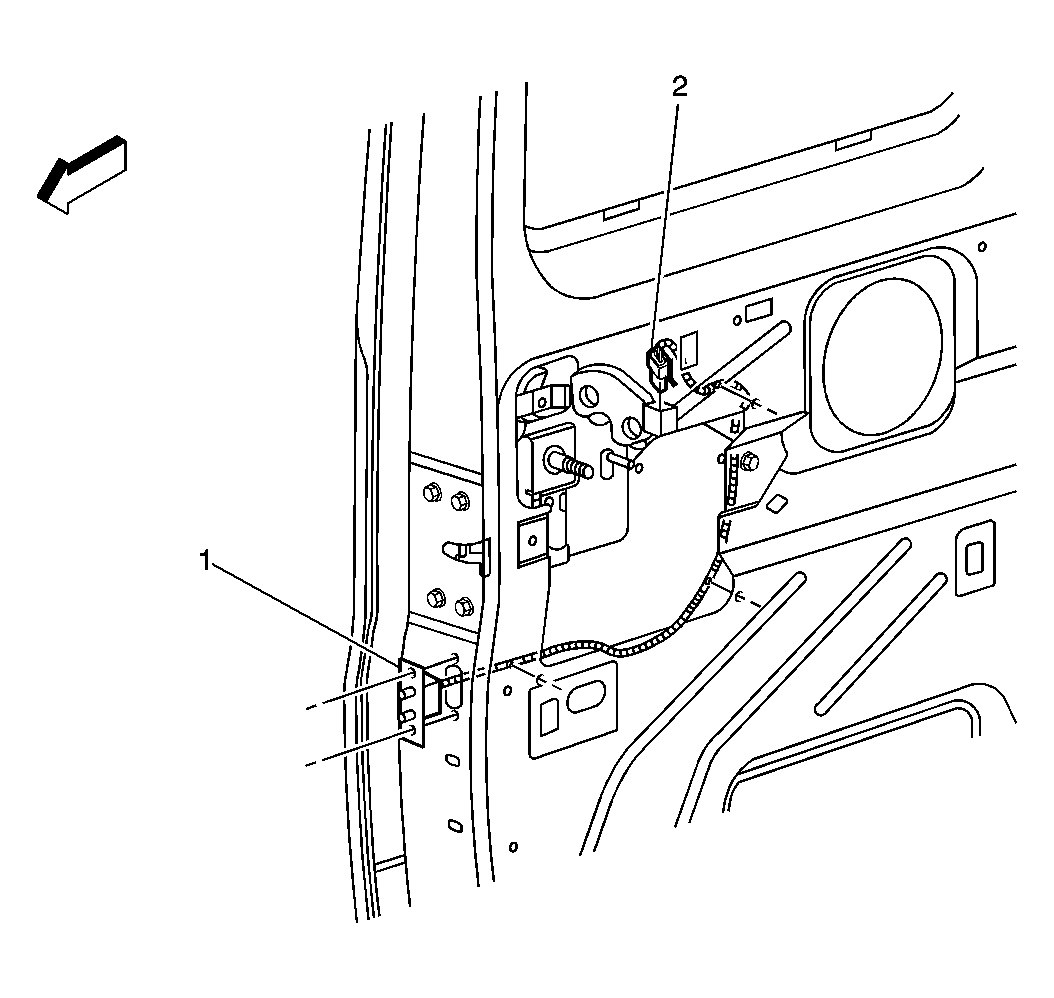

Fig 7: Component View Of Right Sliding Door (YA2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Contact Plate - Right Side (AU3)
2	Door Lock Actuator Connector - RR Side (AU3)

Fig 8: Component View - Right Rear Cargo Door Harness Routing (Passenger/Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid Connector - Right (C49)
2	Door Latch Assembly - Cargo
3	Door Lock Switch Connector - Rear Cargo (AU3)
4	License Lamp Connector
5	S902
6	Speaker Connector - RR Door (UB1/UC6)
7	C412
8	C400

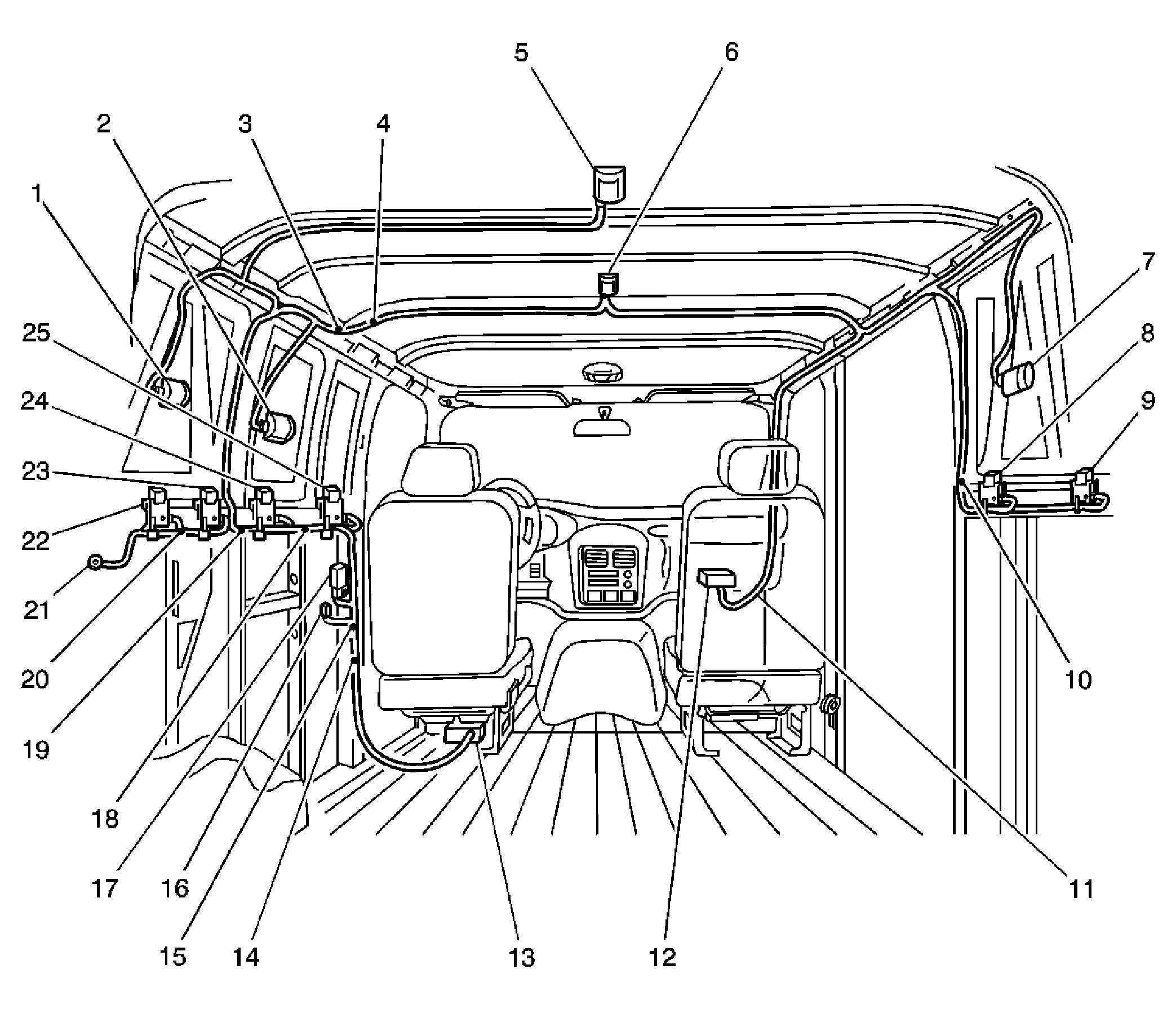

Fig 9: Component View - Pro Harness & Components (PRP)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Fluorescent Work Lamp - LR (UF2)
2	Dome Fluorescent Work Lamp - LF (UF2)
3	S350 (UF2)
4	S348 (UF2)
5	Dome Fluorescent Work Lamp - 2 (UF2)
6	Dome Fluorescent Work Lamp - 1 (UF2)
7	Dome Fluorescent Work Lamp - RH (UF2)
8	Access Panel Actuator - Right Side Front
9	Access Panel Actuator - Right Side Rear
10	S409
11	Pro Wiring Harness
12	Body Control Module (BCM)
13	Fuse Block - Body
14	S302 (UF2)
15	S303
16	Dome Fluorescent Work Lamps Relay (UF2)
17	Fuse Block - Rear
18	S309
19	S300
20	S408
21	G403
22	Access Panel Actuator - Left Rear Side Rear
23	Access Panel Actuator - Left Rear Side Front
24	Access Panel Actuator - Left Front Side Rear
25	Access Panel Actuator - Left Front Side Front
