Computer/Integrating Systems Component Views

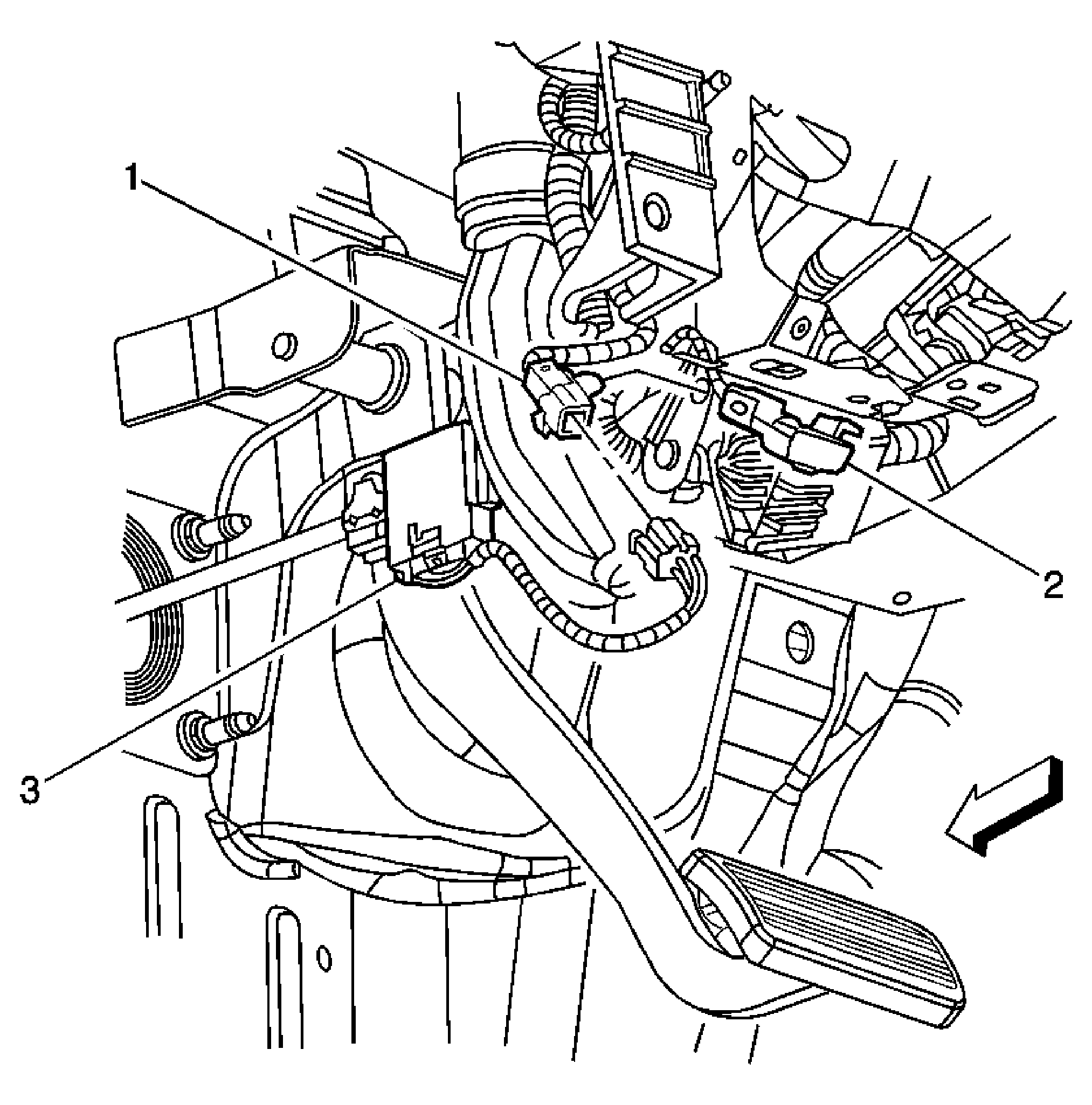

Fig 1: Component View Of I/P Harness Routing - Left Side Of I/P
GM883616Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C221
2 Data Link Connector (DLC)
3 Stop Lamp Switch Connector

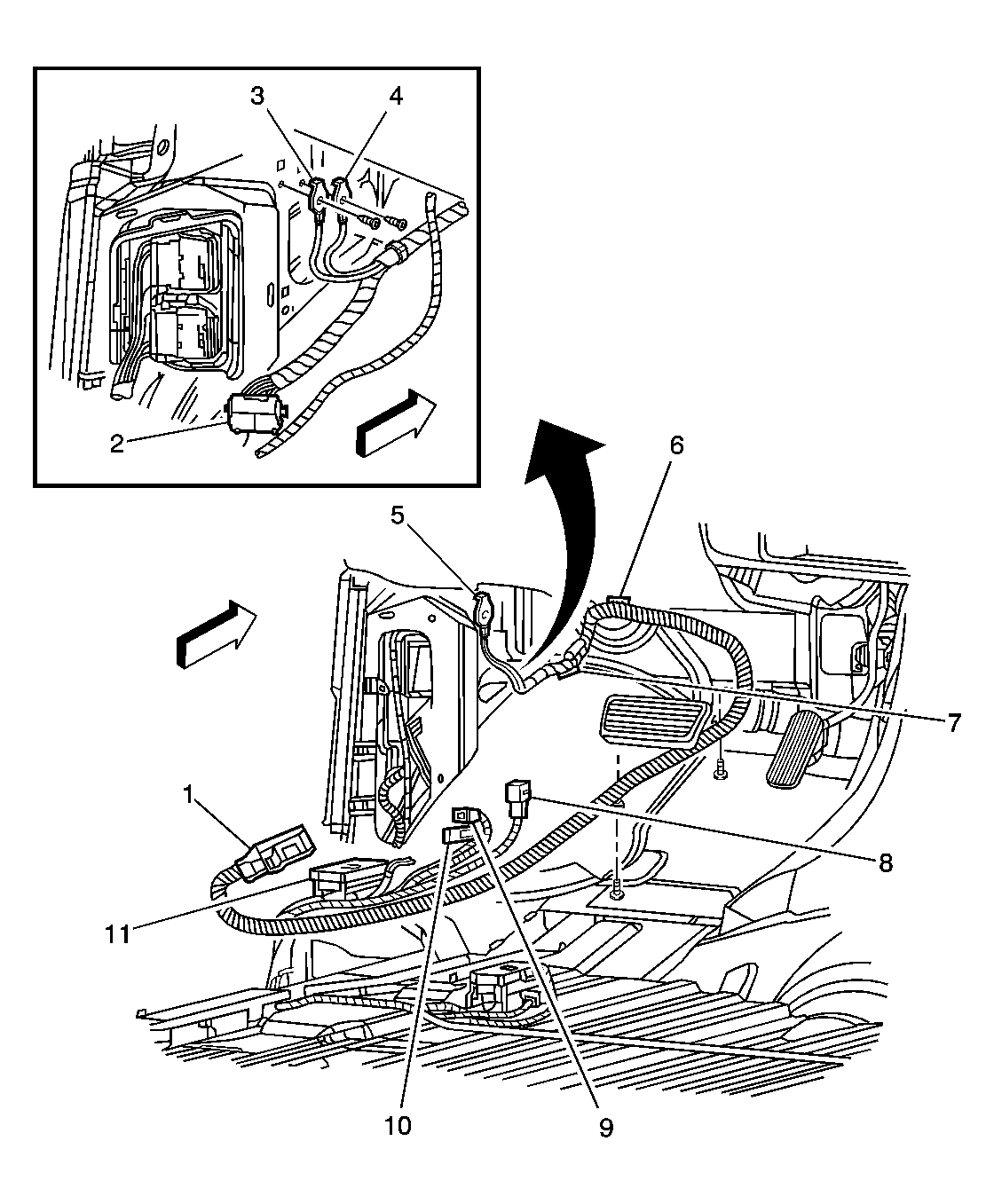

Fig 2: Component View Of I/P Harness Routing - Lower Left Side Of Passenger Compartment
GM883613Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
2 C318
3 G301
4 G302
5 G303
6 SP200
7 C222 (YF7)
8 Seat Belt Pretentioner Connector - LF (Light Duty - Early Production)
9 C300 (Light Duty - Early Production)
10 Fuse Block Body - C5 (YF7)
11 Fuse Block Body - C3

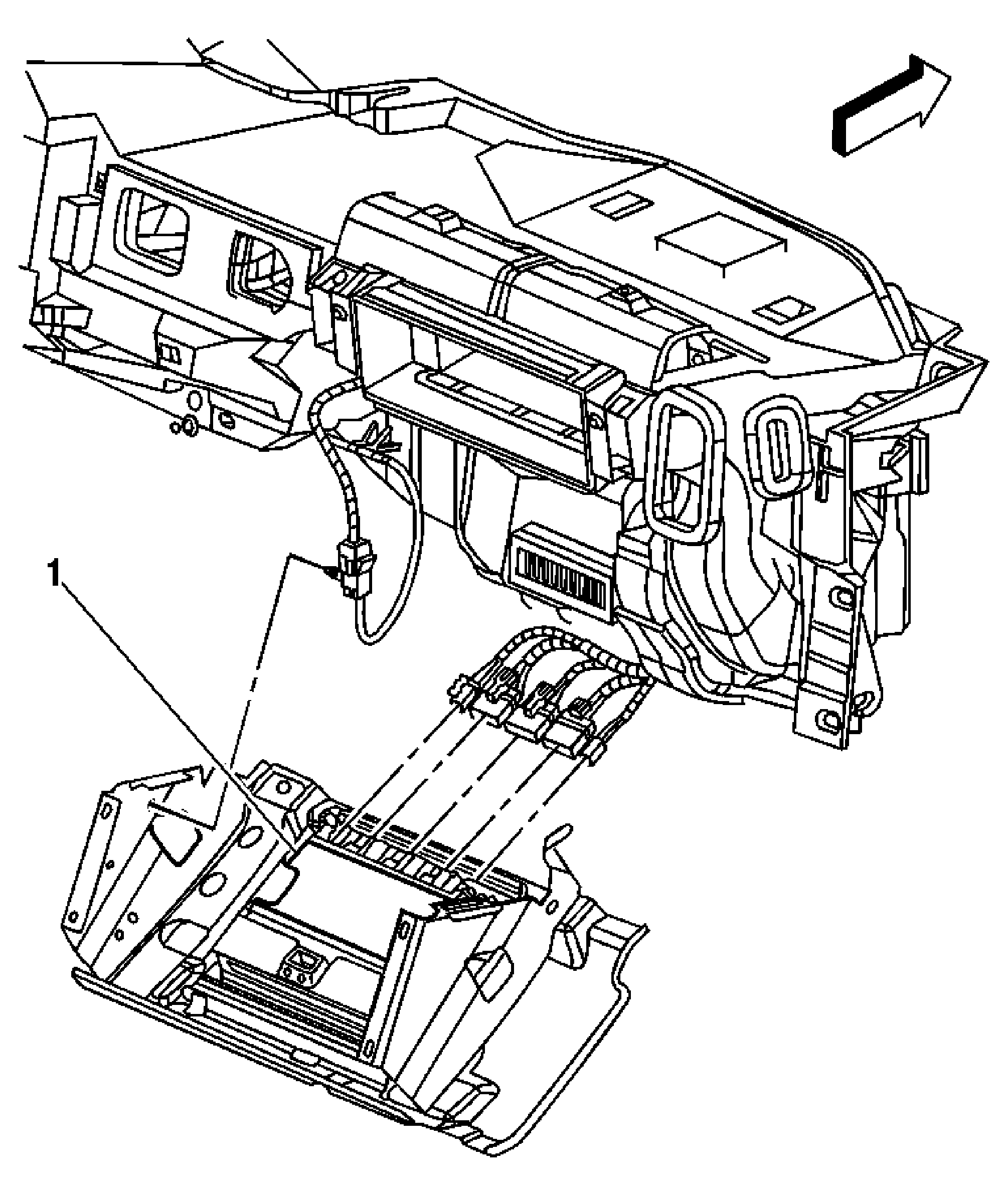

Fig 3: Component View - Right Side of the I/P
GM1208924Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
