Automatic Transmission Controls Schematics

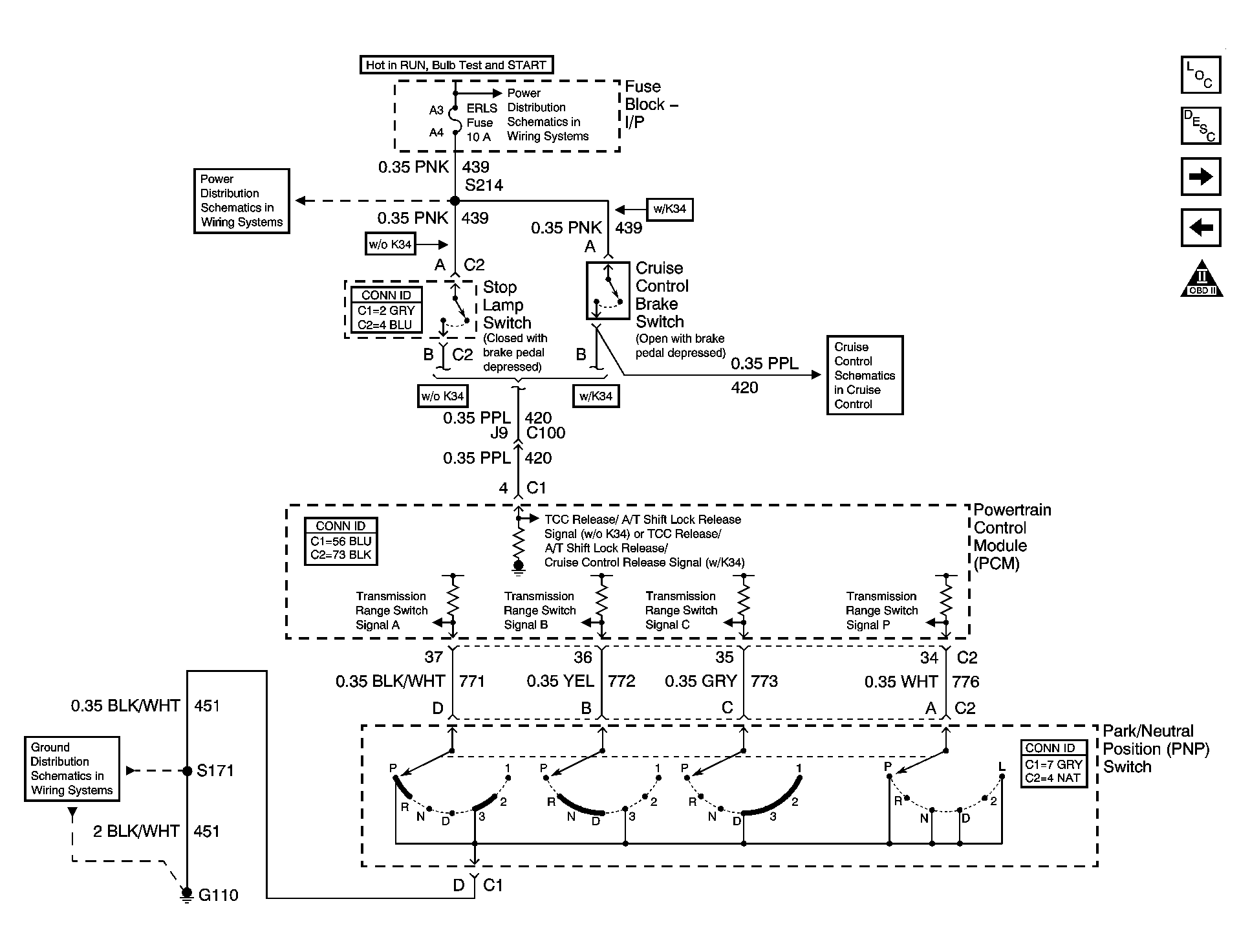

Fig 1: Automatic Transmission Controls Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 2: PNP Switch and TCC Release Signal Schematics

Courtesy of GENERAL MOTORS CORP.

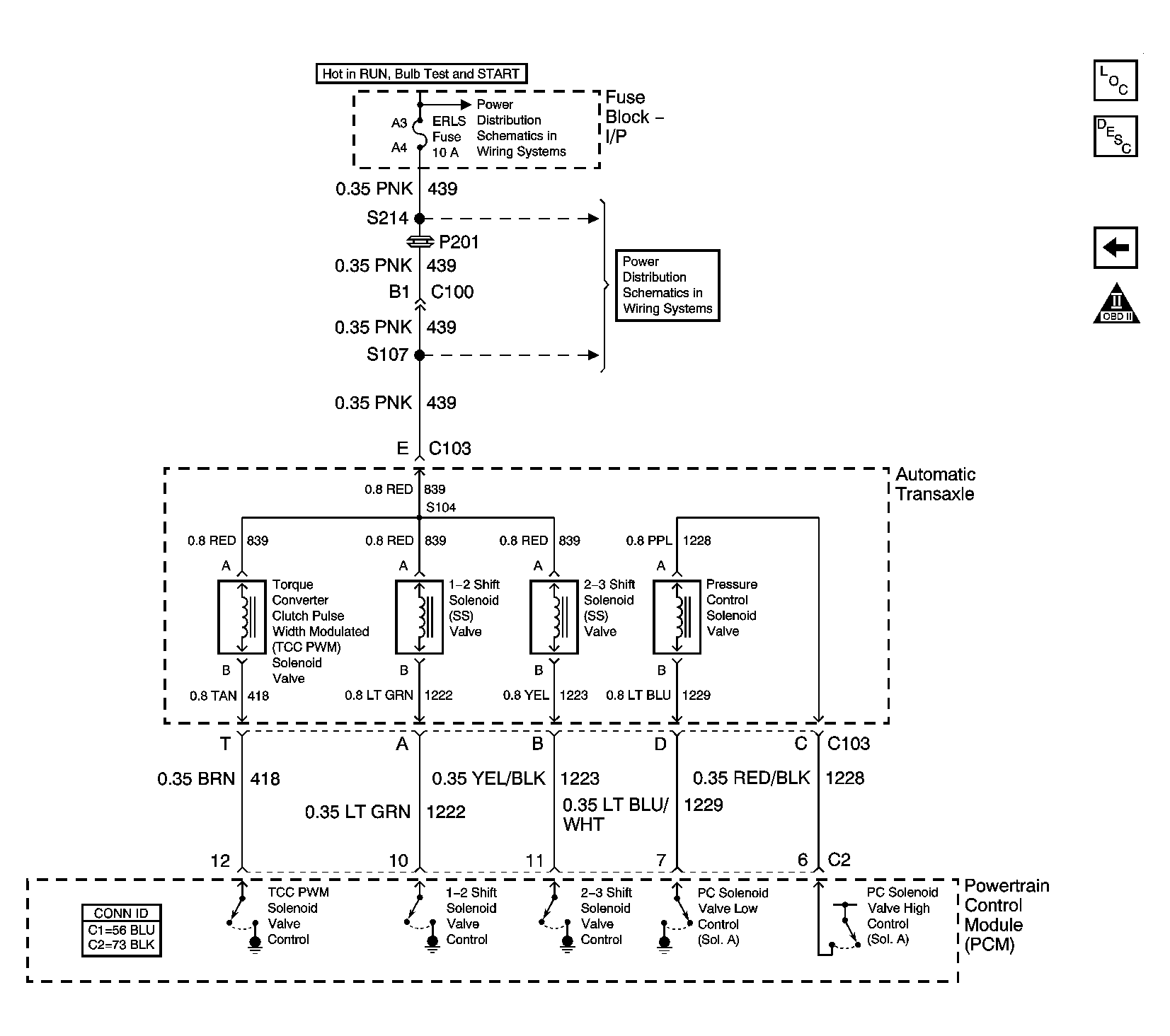

Fig 3: Solenoid Controls Schematics

Courtesy of GENERAL MOTORS CORP.
