Installation Procedure
WARNING: This page is about a different car, the 2005 GMC Safari and 2005 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

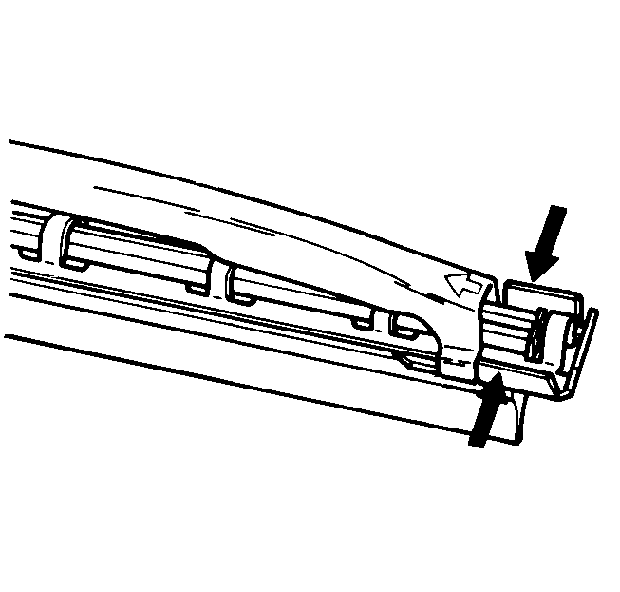

- Slide the wiper blade element through the bottom claw of the wiper blade.
- Guide the wiper blade element through the wiper blade claws until both of the locking tabs engage the bottom claw set.
- Install the wiper blade on the wiper arm. Refer to Wiper Arm Blade Replacement .
