Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Safari and 2005 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

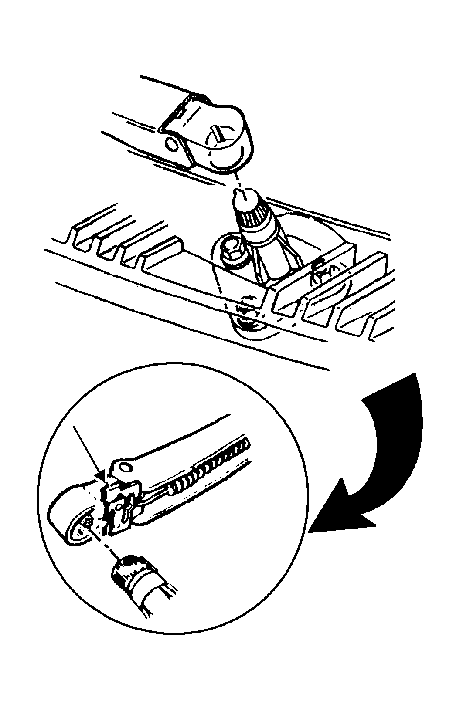

    Fig 1: Expanded View Of Wiper Arm
    GM348772Courtesy of GENERAL MOTORS CORP.
  1. Position the wiper arm assembly on the drive shaft and press in the retaining latch so that the wiper blade aligns with the mark made before the removal.
  2. Install the washer hose.
