Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Safari and 2005 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

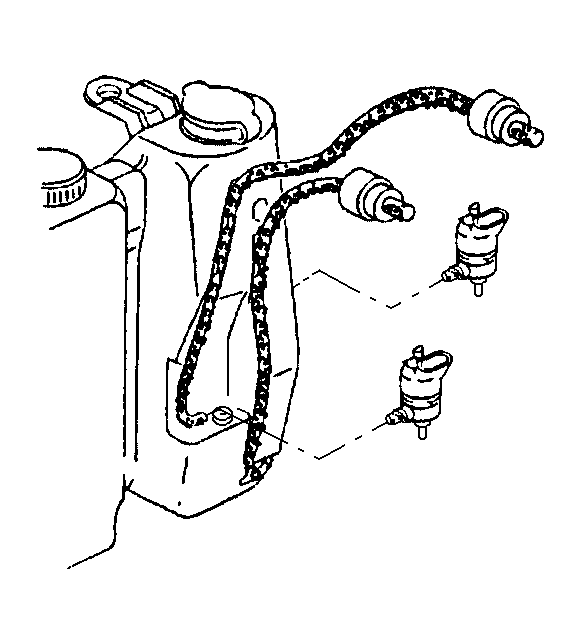

    Fig 1: Expanded View Of Washer Pump Hoses
    GM501957Courtesy of GENERAL MOTORS CORP.
  1. Install the washer pump(s) in the washer solvent container.
  2. Connect the washer hose(s).
  3. Install the washer solvent container.
  4. Install the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement in Engine Cooling.
