Installation Procedure

WARNING: This page is about a different car, the 2005 GMC Safari and 2005 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

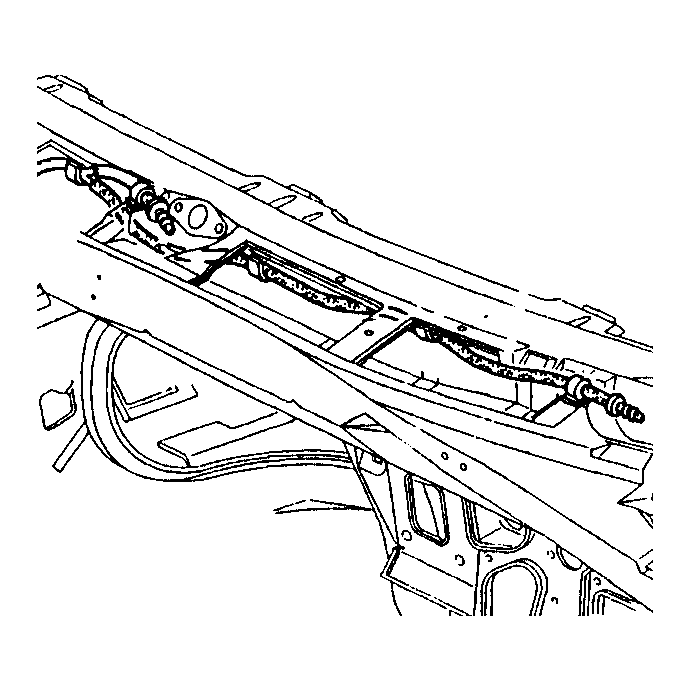

    Fig 1: Identifying LH Washer Nozzle Hose
    GM501961Courtesy of GENERAL MOTORS CORP.
  1. Install the LH washer nozzle hose with the hose clip.
  2. Install the LH washer nozzle hose in the 2 plenum clips.

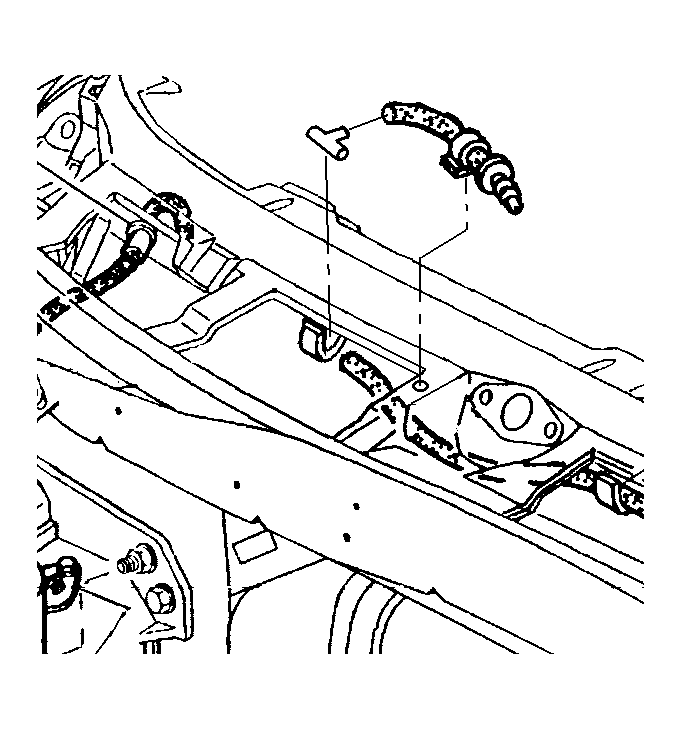

    3. Fig 2: View Of Washer Hose Connector
    GM501960Courtesy of GENERAL MOTORS CORP.
  3. Install the RH washer nozzle hose with the hose clip.
  4. Install the washer hose connector in the plenum clip.

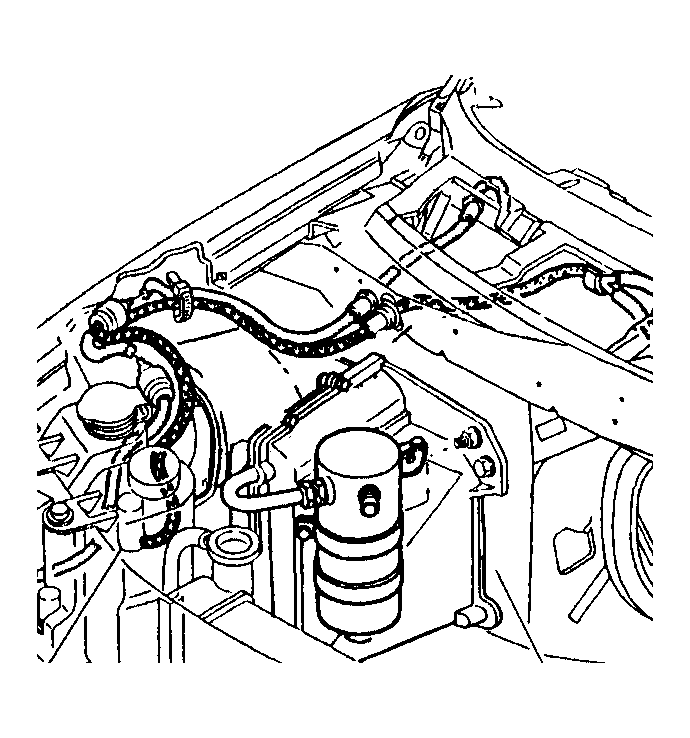

    5. Fig 3: Locating Front Washer Hose
    GM501958Courtesy of GENERAL MOTORS CORP.
  5. Install the front washer hose and strap.

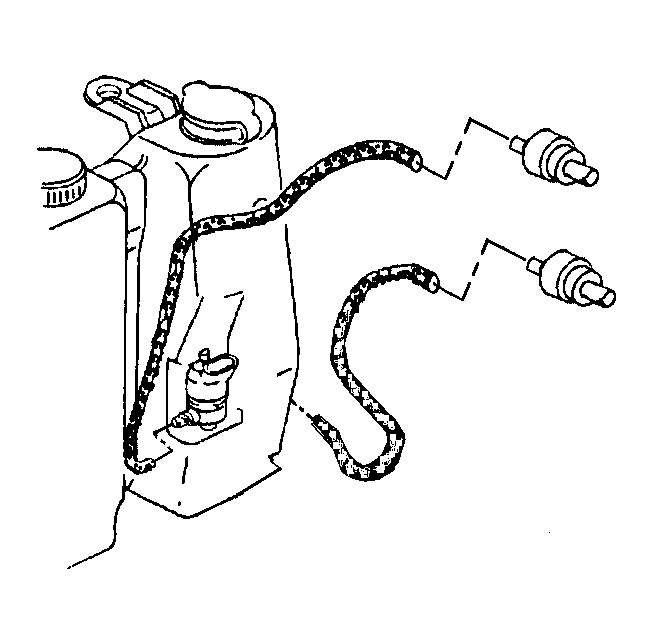

    6. Fig 4: Identifying Washer Check Valve
    GM501959Courtesy of GENERAL MOTORS CORP.
  6. Install the front washer check valve.
  7. Install the washer hose from the front washer pump to the front washer check valve.
  8. Install the rear washer check valve.
  9. Install the washer hose from the rear washer pump to the rear washer check valve.
  10. Install the washer solvent container.
  11. Install the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement in Engine Cooling.
