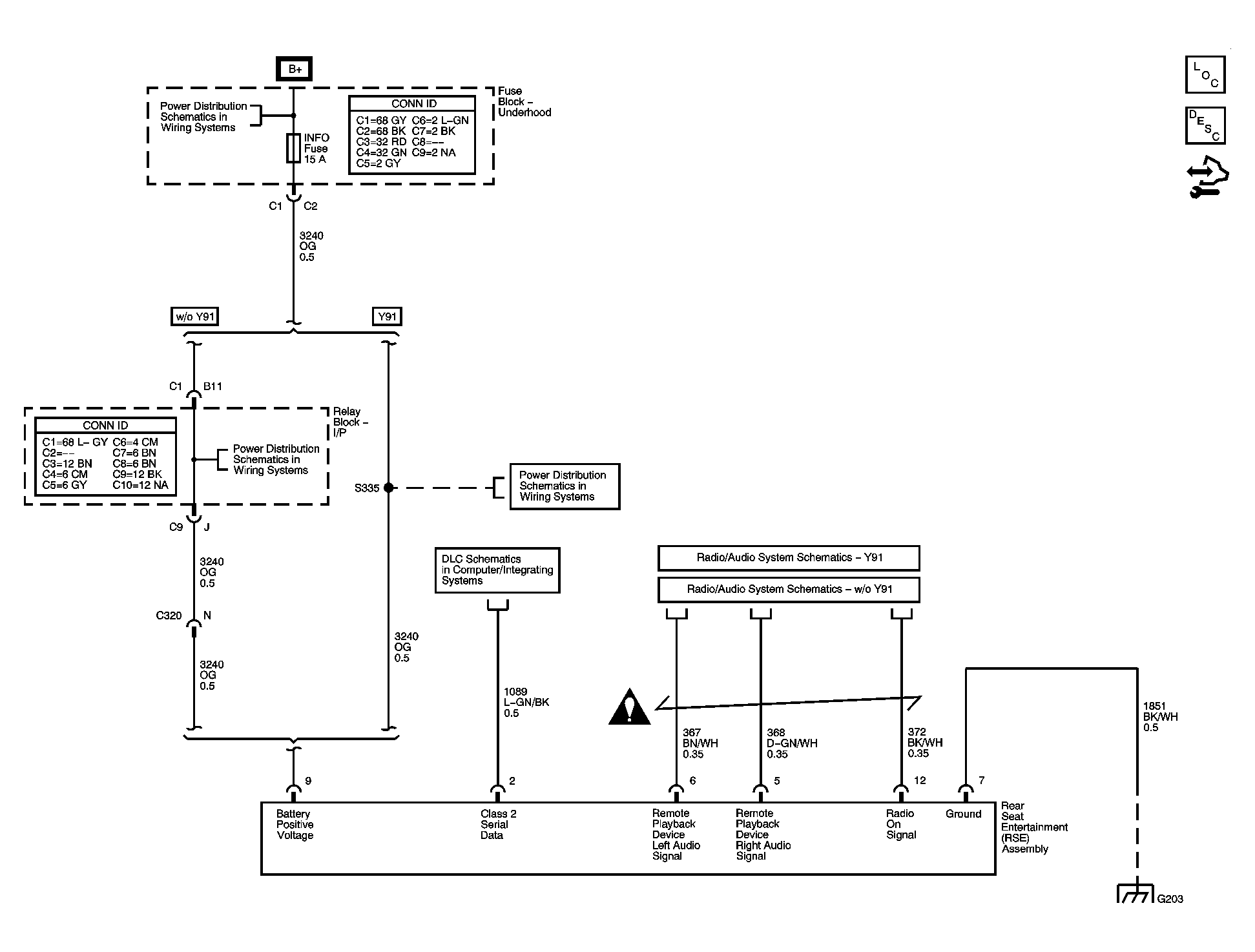

Video System Schematics

WARNING: This page is about a different car, the 2005 GMC Sierra and 2005 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
