Power Window Schematics

WARNING: This page is about a different car, the 2005 GMC Sierra and 2005 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

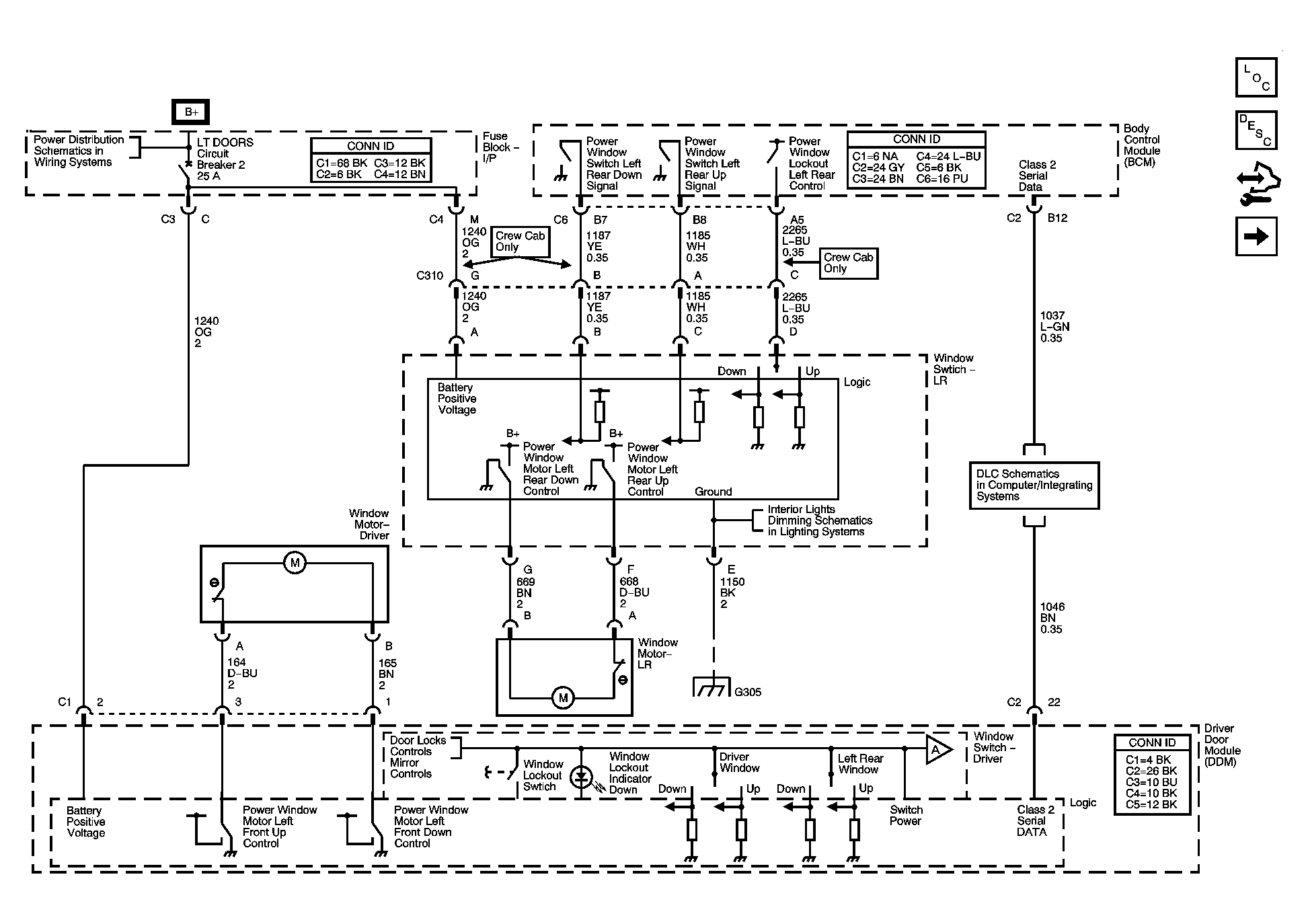

Fig 1: Left Doors Schematic

Courtesy of GENERAL MOTORS CORP.

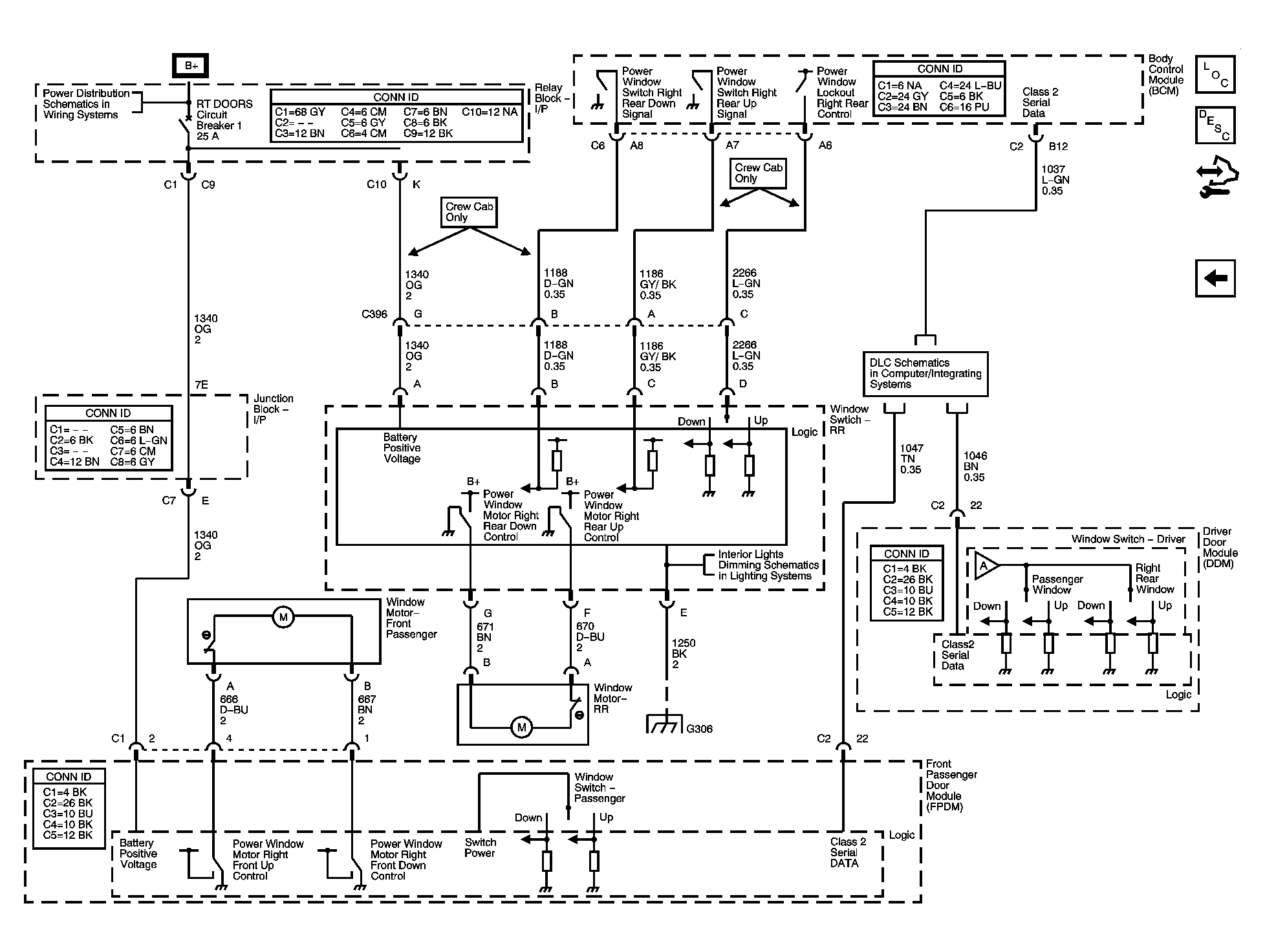

Fig 2: Right Doors Schematic

Courtesy of GENERAL MOTORS CORP.
