Defogger Schematics

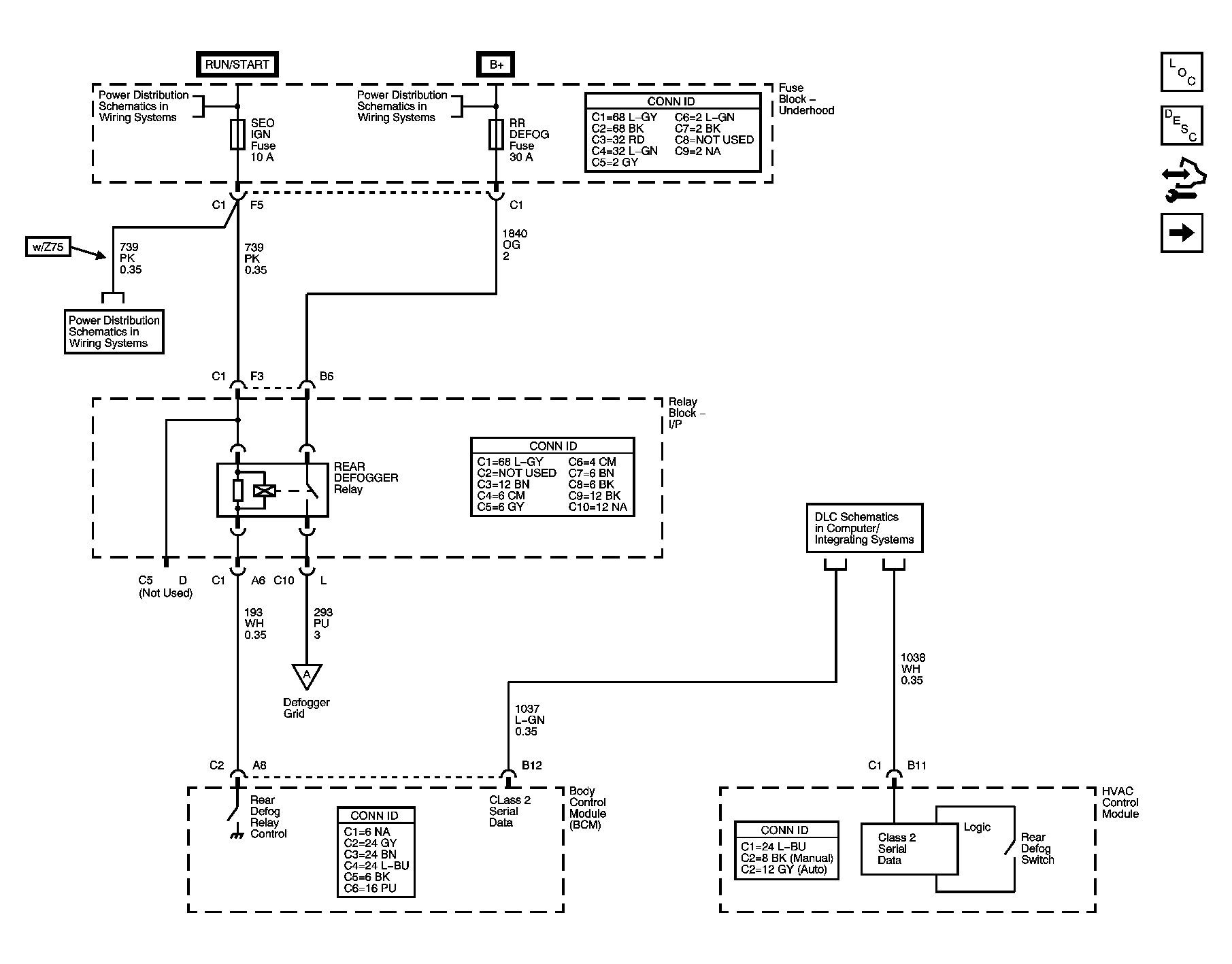

Fig 1: Rear Window Defogger Controls Schematics

GM1464586

Courtesy of GENERAL MOTORS CORP.

Fig 2: Defogger Grid and Ground Schematics

GM1464587

Courtesy of GENERAL MOTORS CORP.
