Installation Procedure

  1. Install the armrest cover to the armrest, if the cover was removed.

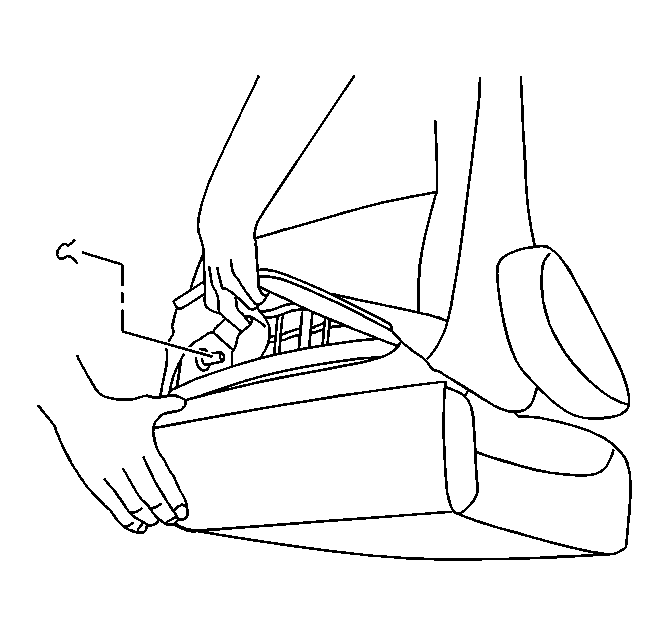

    2. Fig 1: Locating Armrest Retaining Clip (YC7)
    GM300196Courtesy of GENERAL MOTORS CORP.
  2. Reach inside the seat back and insert the armrest retaining clip into the seat back frame.
    • Install the retaining clip with the opening facing down.
    • Observe the fit of the clip once installed. If the clip is loose when fitted in the groove in the seat back frame, remove the clip and crimp the clip closed slightly.

      Repeat this procedure until the clip fits snugly in the groove, or install a new clip.

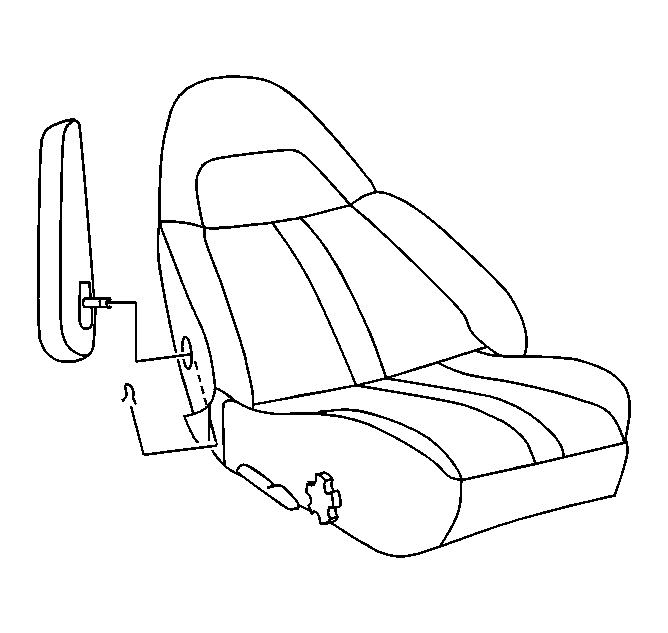

    3. Fig 2: Identifying Armrest Post (YC7)
    GM300194Courtesy of GENERAL MOTORS CORP.
  3. Insert the armrest into the seat back until the armrest retaining clip engages the groove on the armrest post.

    Pull on the armrest in order to verify that the clip is holding.

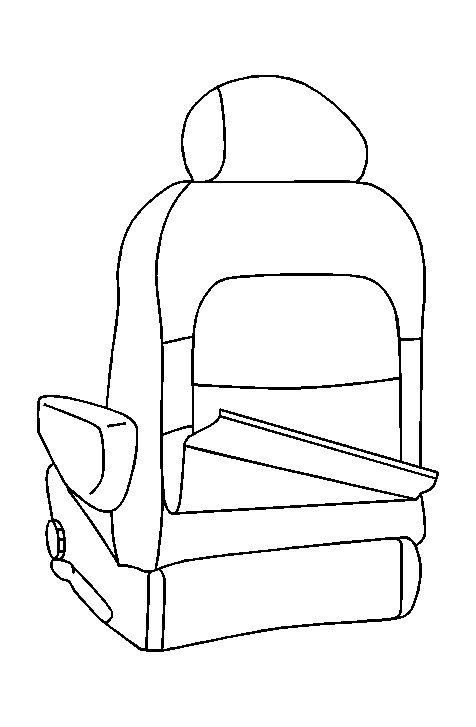

    4. Fig 3: View Of Seat J-Hook (YC7)
    GM300207Courtesy of GENERAL MOTORS CORP.
  4. Attach the halves of the J-hook along the bottom edge of the seat back.
  5. Install the bucket seat in the vehicle. Refer to Seat Replacement - Bucket .
