Installation Procedure

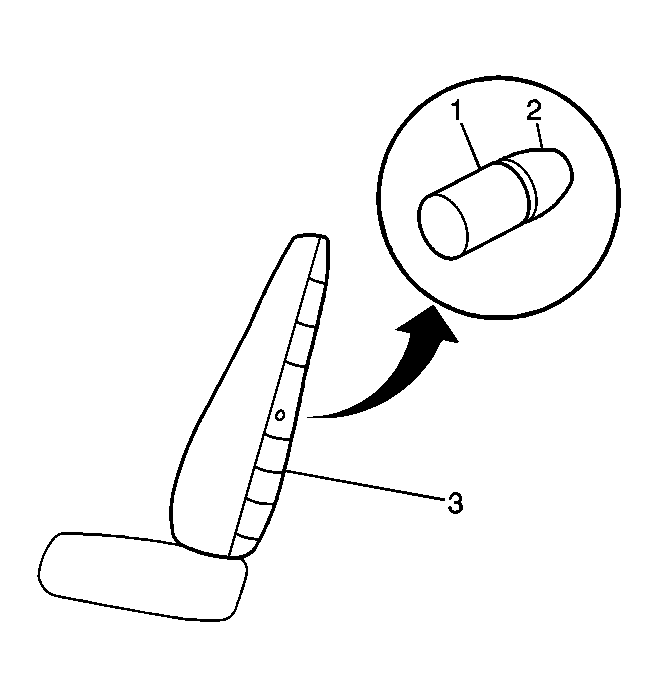

    Fig 1: Identifying Seat Post (YC6)
    GM555361Courtesy of GENERAL MOTORS CORP.
  1. Install the armrest by setting it at approximately 45 degrees.
  2. Press the armrest until fully engaged into the groove of the seat post (1).
