Installation Procedure

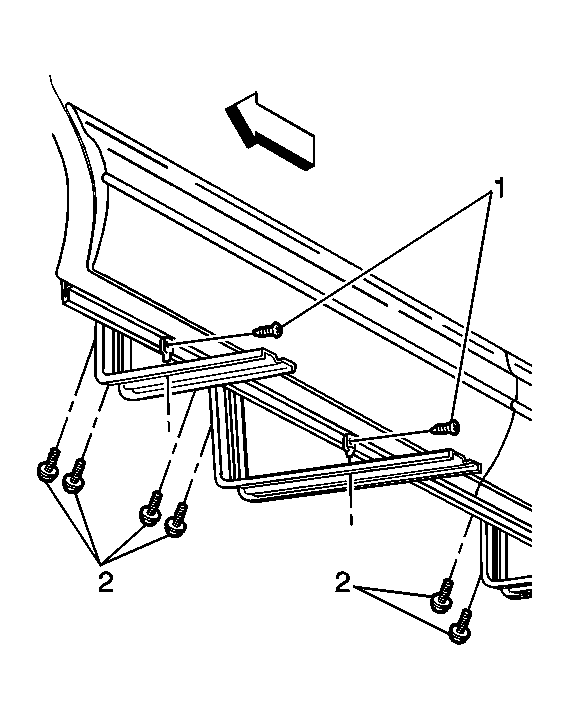

    Fig 1: Locating Assist Step Support Bracket Bolts
    GM350685Courtesy of GENERAL MOTORS CORP.
  1. Install the assist step brace.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the nuts and bolts (1) that attach the assist step brace to the assist step support bracket

    Tighten:  Tighten the nuts and bolts (1) that attach the assist step brace to the assist step support bracket to 10 N.m (89 lb in).

  3. Lower the vehicle.
