Installation Procedure

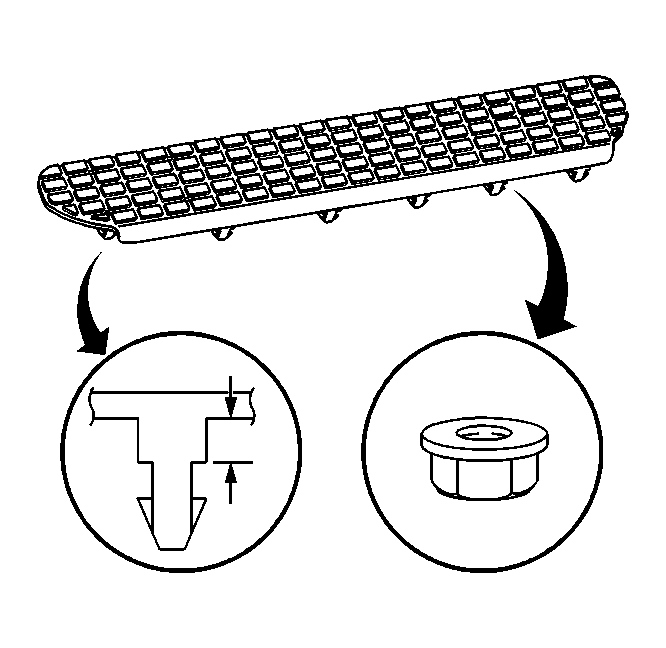

    Fig 1: Expanded View Of Assist Step Pad Nuts
    GM350651Courtesy of GENERAL MOTORS CORP.
  1. Install the assist step pad as follows:
    1. Align the assist step pad to the assist step plate and press downward firmly until seated.
    2. The assist step pad nuts are to be hand torque.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the assist step pad nuts

    Tighten:  Tighten the assist step pads nuts to 8 N.m (71 lb in).

  3. Lower the vehicle.
