Installation Procedure

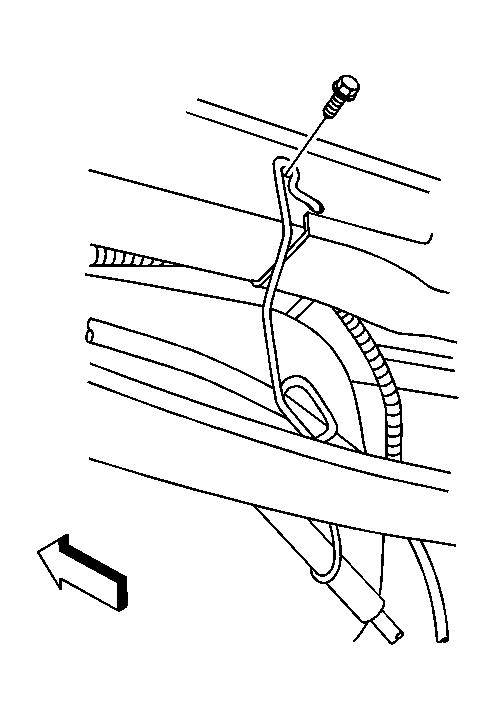

    Fig 1: Locating Park Brake Cable Guide Retaining Bolt
    GM930614Courtesy of GENERAL MOTORS CORP.
  1. Install the park brake cable guide to the park brake cable.
  2. Install the park brake cable guide.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the park brake cable guide bolt to the frame.

    Tighten:  Tighten the bolt to 13 N.m (115 lb in).

  4. Remove the safety stands and lower the vehicle.
