Installation Procedure

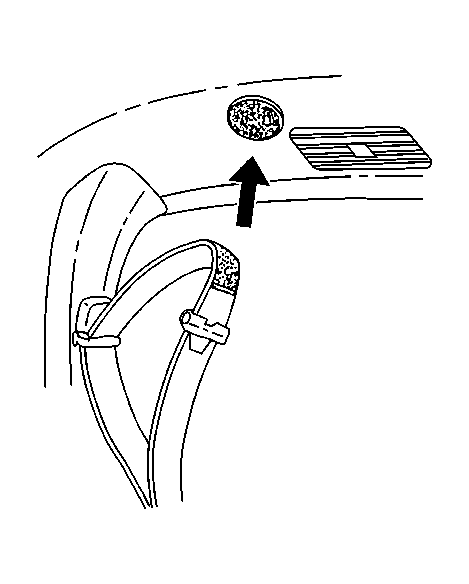

    Fig 1: Locating Seat Belt Retainer
    GM179378Courtesy of GENERAL MOTORS CORP.
  1. Install the hook and loop seat belt retainer to the headliner.
  2. Install the retractor side seat belt to the hook and loop on the headliner.
