Installation Procedure

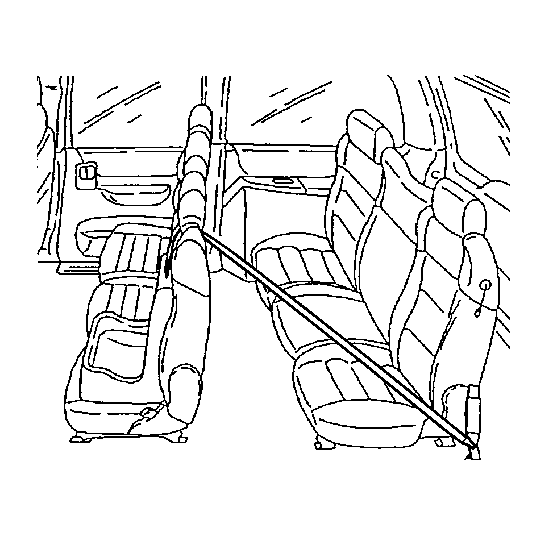

    Fig 1: View Of Tether Strap
    GM179642Courtesy of GENERAL MOTORS CORP.
  1. Install the tether strap underneath the second row seat head restraint if equipped.

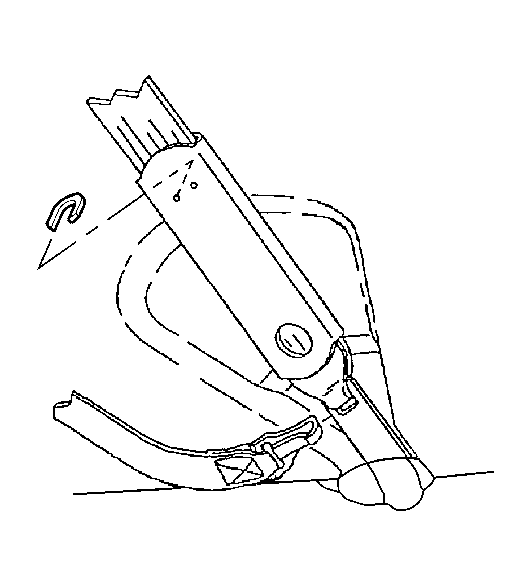

    2. Fig 2: View Of Seat Belt Anchor Sleeve
    GM179411Courtesy of GENERAL MOTORS CORP.
  2. Remove the staple from the seat belt anchor sleeve. Then discard the staple.
  3. Slide the sleeve to the upward position in order to expose the seat belt anchor.
  4. Install the tether strap spring clip to the anchor plate. Verify that the spring clip end closes once the tether strap spring clip is attached to the anchor plate.
