Fuse Block-Underhood (Top)

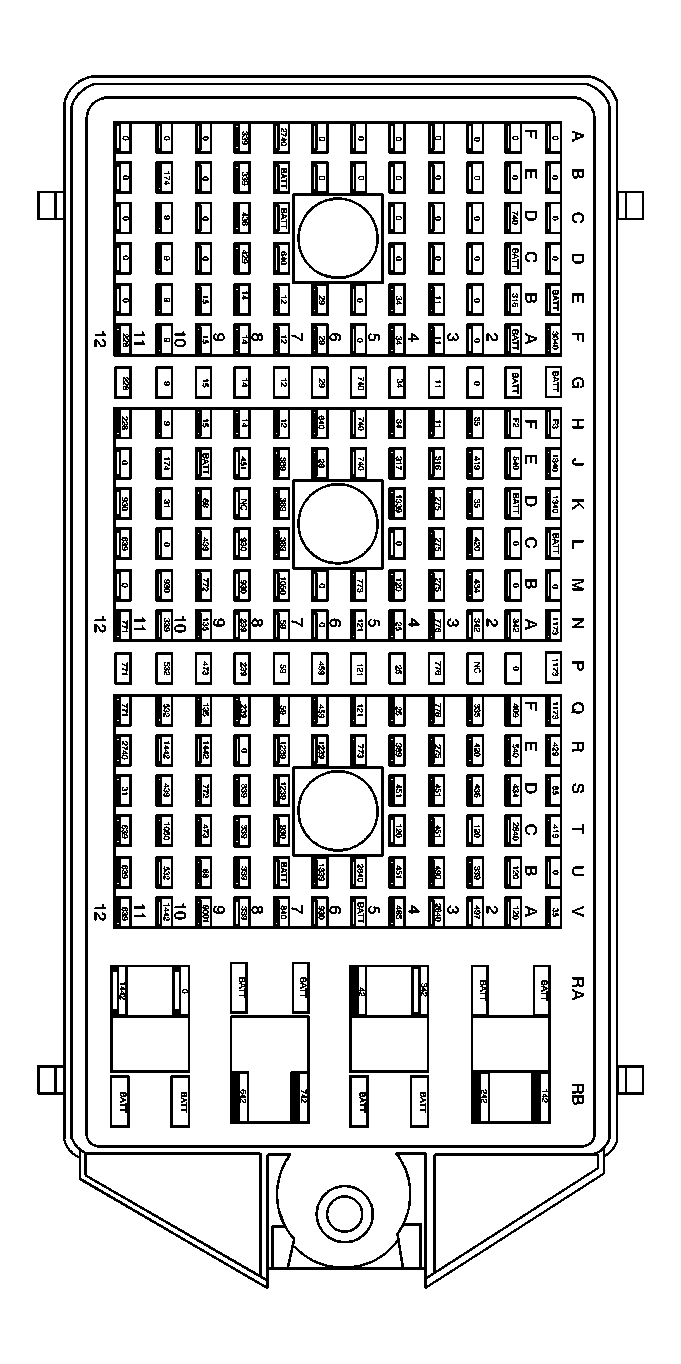

Fig 1: Fuse Block-Underhood (Top)
GM612638Courtesy of GENERAL MOTORS CORP.
Fuse Block C1 Underhood

GM280784Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15303513
  • 68-Way F Metri-pack 280 Series Flexlock (BLK)
Pin Wire Color Circuit No. Function
A1-A4 - - Not Used
A5 DK GRN/WHT 465 Fuel Pump Relay Control
A6-A7 - - Not Used
A8 ORN 840 Battery Positive Voltage
A9 PNK 339 Ignition 1 Voltage
A10 WHT 504 Cooling Fan Low Reference
A11 - - Not Used
A12 PNK 639 Ignition 1 Voltage
B1-B2 - - Not Used
B3 PNK 339 Ignition 1 Voltage
B4 RED 490 Fuel Pump Relay Prime Supply Voltage
B5 BLK/WHT 451 Ground
B6 - - Not Used
B7 PNK 1339 Ignition 1 Voltage
B8 - - Not Used
B9 PNK 339 Ignition 1 Voltage
B10-B12 - - Not Used
C1 - C8 - - Not Used
C9 PNK 339 Ignition 1 Voltage
C10 DK BLU 473 High Speed Cooling Fan Relay Control
C11 BLK 1050 Ground
C12 - - Not Used
D1-D2 - - Not Used
D3 BRN 436 Air Injection Pump Control
D4-D8 - - Not Used
D9 PNK 339 Ignition 1 Voltage
D10 - - Not Used
D11 PNK 439 Ignition 1 Voltage
D12 TAN/BLK 231 Oil Pressure Switch Signal
TAN/BLK 231 Oil Pressure Switch Signal
E1 - - Not Used
E2 ORN 540 Battery Positive Voltage
E3 - - Not Used
E4 LT GRN 275 Park Neutral Position Switch Park Signal
E5 DK GRN 389 Vehicle Speed Signal
E6-E11 - - Not Used
E12 ORN 2740 Battery Positive Voltage
F1 - - Not Used
F2 GRY 532 Cooling Fan Motor Supply Voltage
F3 DK GRN 335 Low Speed Cooling Fan Relay Control
F4 LT BLU 1296 Axle Actuator - Control
F5 LT GRN 24 Backup Lamp Supply Voltage
F6 WHT 17 Stop Lamp Signal
F7 DK GRN/WHT 459 A/C Compressor Clutch Relay Control
F8 DK GRN 59 A/C Compressor Clutch Supply Voltage Feed
F9 PNK 239 Ignition 1 Voltage
F10 - - Not Used
F11 LT BLU 409 Cooling Fan Motor Supply Voltage
F12 - - Not Used
Fuse Block C2 Underhood

GM280786Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15303514
  • 68-Way F Metri-pack 280 Series Flexlock (GRY)
Pin Wire Color Circuit No. Function
A1-A3 - - Not Used
A4 LT BLU 1296 Axle Actuator - Control
A5 LT GRN/BLK 24 Backup Lamp Supply Voltage
A6 WHT 17 Stop Lamp Switch Signal
A7-A12 - - Not Used
B1-B4 - - Not Used
B5 GRY 120 Fuel Pump Supply Voltage
B6-B12 - - Not Used
C1-C3 - - Not Used
C4 LT GRN 275 Park Neutral Position Switch Park Signal
C5 - - Not Used
C8 DK GRN 389 Vehicle Speed Signal
C9 - - Not Used
C10 PNK 439 Ignition 1 Voltage
C11-C12 - - Not Used
D1 ORN 1340 Battery Positive Voltage
ORN 1340 Battery Positive Voltage
D2-D3 - - Not Used
D4 LT GRN 275 Park Neutral Position Switch Park Signal
D5 PNK 1339 Ignition 1 Voltage
D8-D10 - - Not Used
D11 TAN/BLK 231 Oil Pressure Switch Signal - Export
D12 - - Not Used
E1 ORN 1340 Battery Positive Voltage
E2-E4 - - Not Used
E5 YEL 317 Fog Lamp Relay Coil Supply Voltage
E6 - - Not Used
E7 BLK 28 Horn Relay Controll
BLK 28 Horn Relay Controll
E8 DK GRN 389 Vehicle Speed Signal
DK GRN 389 Vehicle Speed Signal
E9-E10 - - Not Used
E11 LT GRN/BLK 311 Right Headlamp High Beam Supply Voltage (Export)
YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
E12 - - Not Used
F1-F3 - - Not Used
F4 DK GRN/WHT 711 High Beam Headlamp Feed (wT90)
LT GRN 11 Headlamp High Beam Supply Voltage
F5 PPL 34 Fog Lamps Supply Voltage
PPL 34 Fog Lamps Supply Voltage
F6 - - Not Used
F7 ORN 640 Battery Positive Voltage
F8 YEL 712 Left Headlamp Low Beam Supply Voltage (Export)
TAN 12 Headlamp Low Beam Supply Voltage
F9 LT BLU 14 Left Turn Signal Lamps Voltage
F10 DK BLU 15 Right Turn Signal Lamps Supply Voltage
F11 BRN 9 Park Lamp Supply Voltage
F12 TAN/WHT 312 Right Headlamp Low Beam Supply Voltage (Export)
F12 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
Fuse Block C3 Underhood

GM280787Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15303507
  • 68-Way F Metri-pack 280 Series Flexlock (LT GRY)
Pin Wire Color Circuit No. Function
A1 ORN 3040 Battery Positive Voltage
A2-A3 - - Not Used
A4 LT GRN 11 Headlamp High Beam Supply Voltage
DK GRN/WHT 711 Left Headlamp High Beam Supply Voltage (Export)
A5 PPL 34 Fog Lamps Supply Voltage
A6 - - Not Used
A7 DK GRN 29 Horn Control
A8 YEL 712 Left Headlamp Low Beam Supply Voltage (Export)
TAN 12 Headlamp Low Beam Supply Voltage
A9 LT BLU 14 Left Turn Signal Lamps Supply Voltage
LT BLU 14 Left Turn Signal Lamps Supply Voltage
A10 DK BLU 15 Right Turn Signal Lamps Supply Voltage
DK BLU 15 Right Turn Signal Lamps Supply Voltage
A11 BRN 9 Park Lamp Supply Voltage
A12 TAN/WHT 312 Right Headlamp Low Beam Supply Voltage
DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
B1-B3 - - Not Used
B4 LT GRN 11 Headlamp High Beam Supply Voltage
B5 PPL 34 Fog Lamps Supply Voltage
B6 - - Not Used
B7 DK GRN 29 Horn Control
B8 TAN 12 Headlamp Low Beam Supply Voltage
B9-B10 - - Not Used
B11 BRN 9 Park Lamp Supply Voltage
B12 - - Not Used
C1-C10 - - Not Used
C11 BRN 9 Park Lamp Supply Voltage
C12 - - Not Used
D1-D10 - - Not Used
D11 BRN 9 Park Lamp Supply Voltage
D12 - - Not Used
E1-E8 - - Not Used
E9 PNK 339 Ignition 1 Voltage
E10 - - Not Used
E11 LT GRN/BLK 311 Right Headlamp High Beam Supply Voltage (Export)
YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
E12 - - Not Used
F1-F12 - - Not Used
Fuse Block C4 Underhood

GM280788Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146038
  • 2-Way F MaxiFuse (LT GRY)
Pin Wire Color Circuit No. Function
A RED 242 Battery Positive Voltage
B RED 142 Battery Positive Voltage
RED 142 Battery Positive Voltage
Fuse Block C5 Underhood

GM258677Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146037
  • 2-Way F MaxiFuse (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B RED 42 Battery Positive Voltage
Fuse Block C6 Underhood

GM280790Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160605
  • 2-Way F MaxiFuse (LT GRN)
Pin Wire Color Circuit No. Function
A RED 642 Battery Positive Voltage
B RED 742 Battery Positive Voltage
Relay Block-Domestic

GM73243Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160504
  • 36-Way F Metri-pack 280 Series Flex Lock (BLK)
Pin Wire Color Circuit No. Function
A1-A9 - - Not Used
B1 DK BLU 75 RAP Relay Switch Supply Voltage
B2 - - Not Used
B3 ORN 2240 Battery Positive Voltage
B4 - - Not Used
B5 PPL 293 Rear Defog Element Supply Voltage
B6 - - Not Used
B7 BRN 241 Ignition 3 Voltage
B8-B9 - - Not Used
C1 BLK 707 RAP Relay Coil Supply Voltage
BLK 707 RAP Relay Coil Supply Voltage
C2 - - Not Used
C3 RED 142 Battery Positive Voltage
C4 - - Not Used
C5 WHT 193 Rear Defog Relay Control
C6 - - Not Used
C7 ORN 1040 Battery Positive Voltage
C8-C9 - - Not Used
D1-D9 - - Not Used
Relay Block-Export

GM73243Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160504
  • 36-Way F Metri-pack 280 Series Flex Lock (BLK)
Pin Wire Color Circuit No. Function
A1-A9 - - Not Used
B1 ORN 1640 Battery Positive Voltage
B2-B9 - - Not Used
C1 YEL 1870 Left Rear Fog Lamp Control
C2 - - Not Used
C3 RED 122 Rear Fog Lamps Supply Voltage
C4-C9 - - Not Used
D1-D9 - - Not Used
