Power Seats Schematics

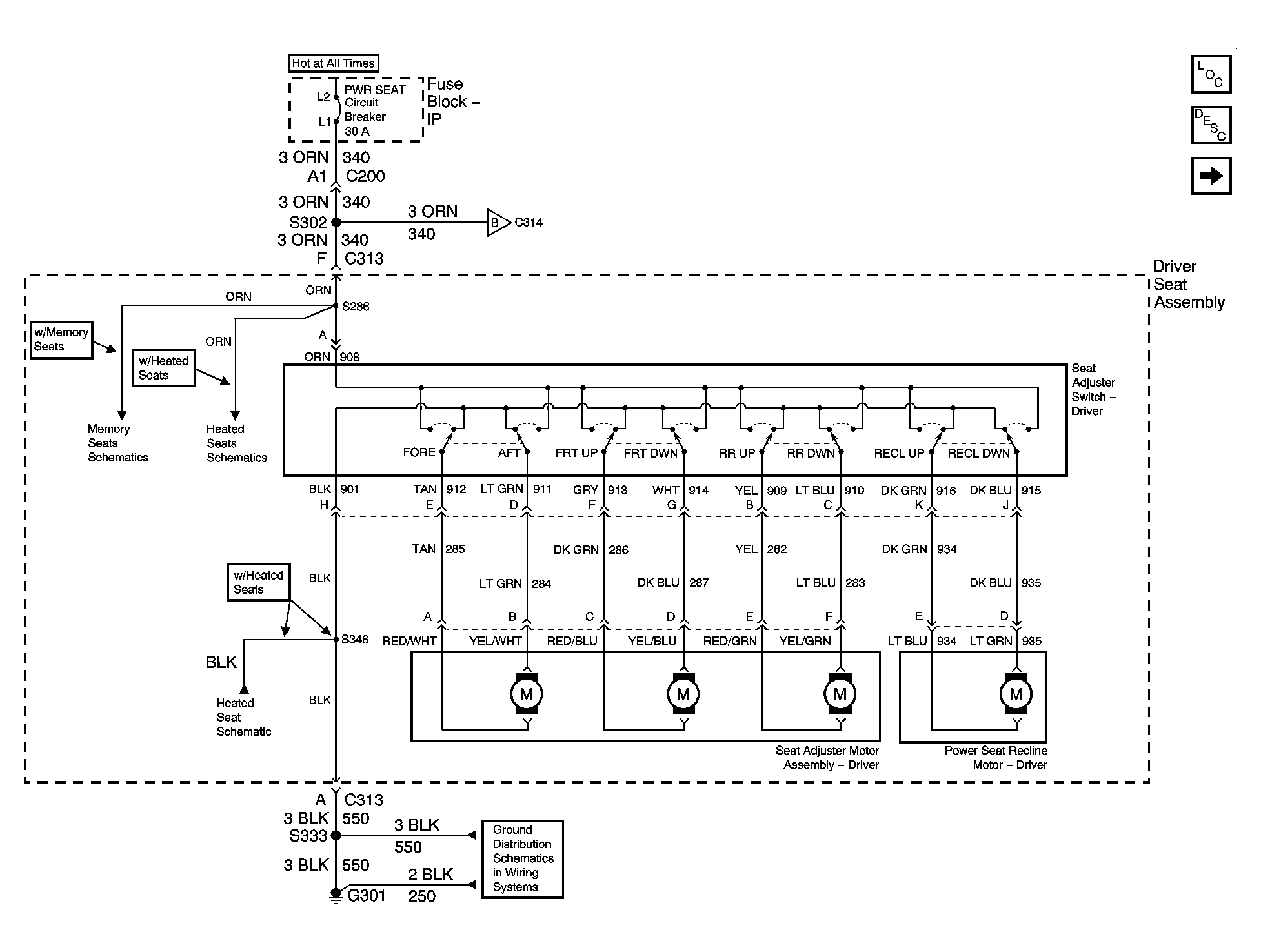

Fig 1: Driver Side Power Seat, Ground, and Switches Schematic
GM1208626Courtesy of GENERAL MOTORS CORP.

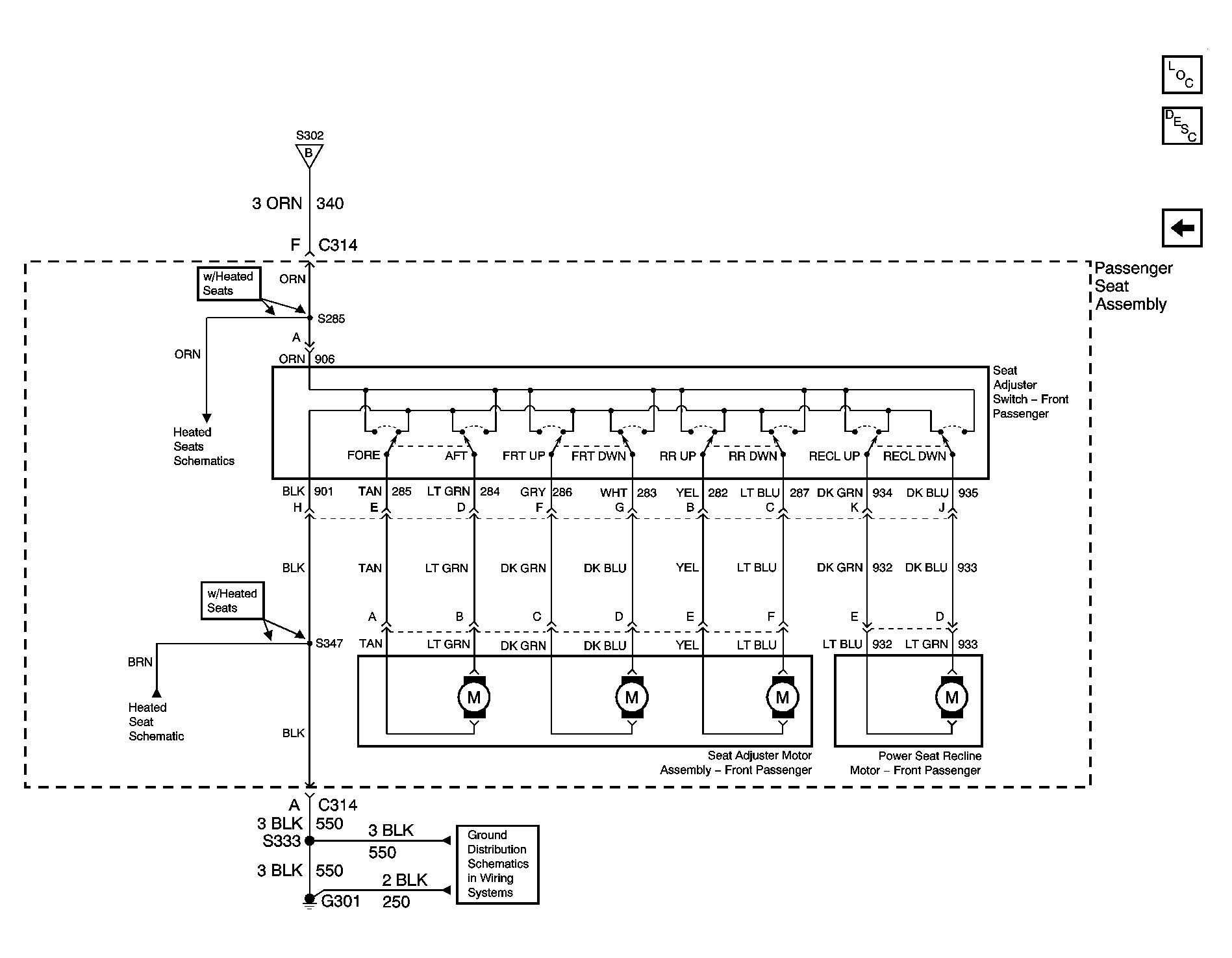

Fig 2: Passenger Side Power Seat, Ground, and Switches
GM1208627Courtesy of GENERAL MOTORS CORP.

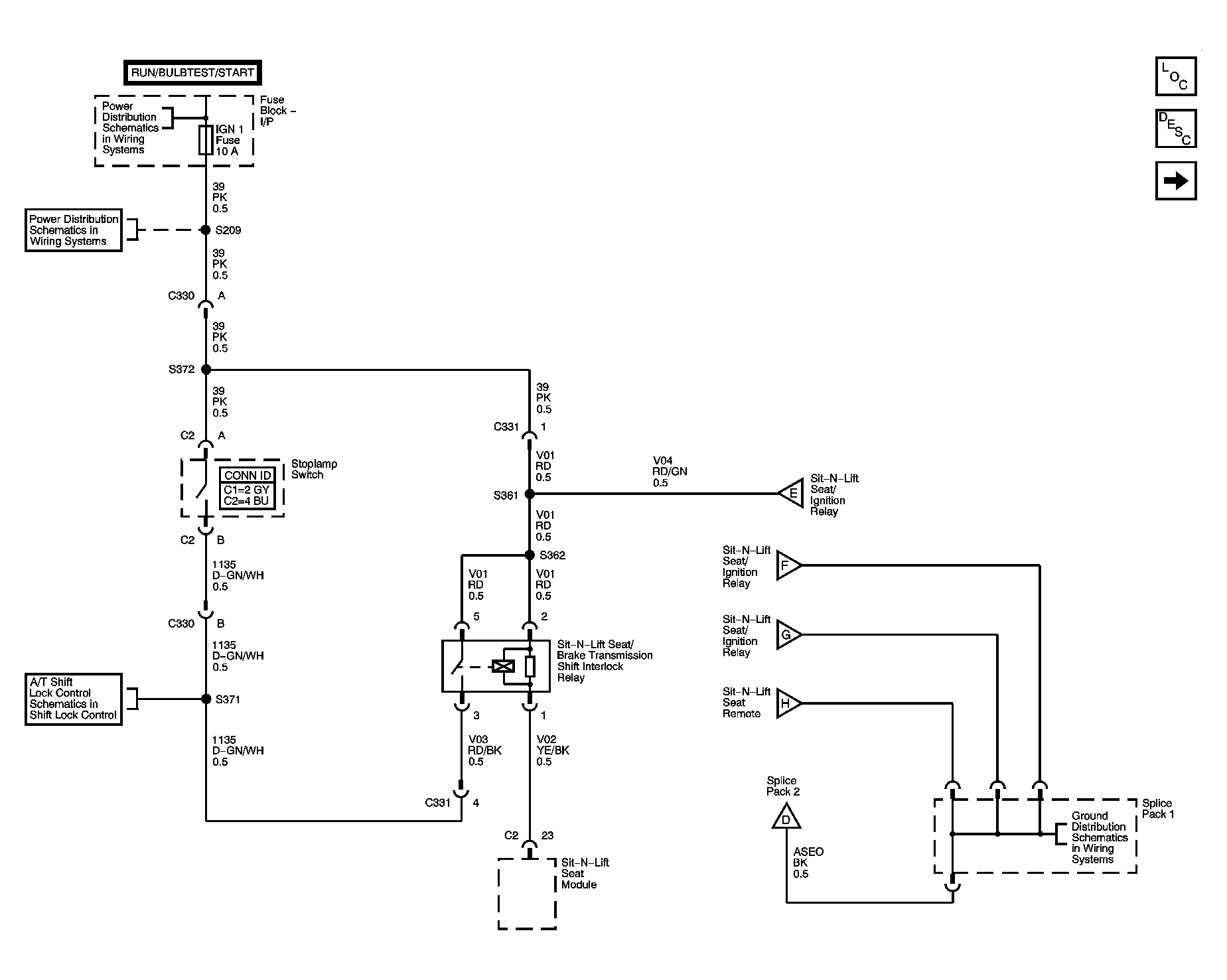

Fig 3: Sit-N-Lift Seat Power and Ground Schematic
GM1386092Courtesy of GENERAL MOTORS CORP.

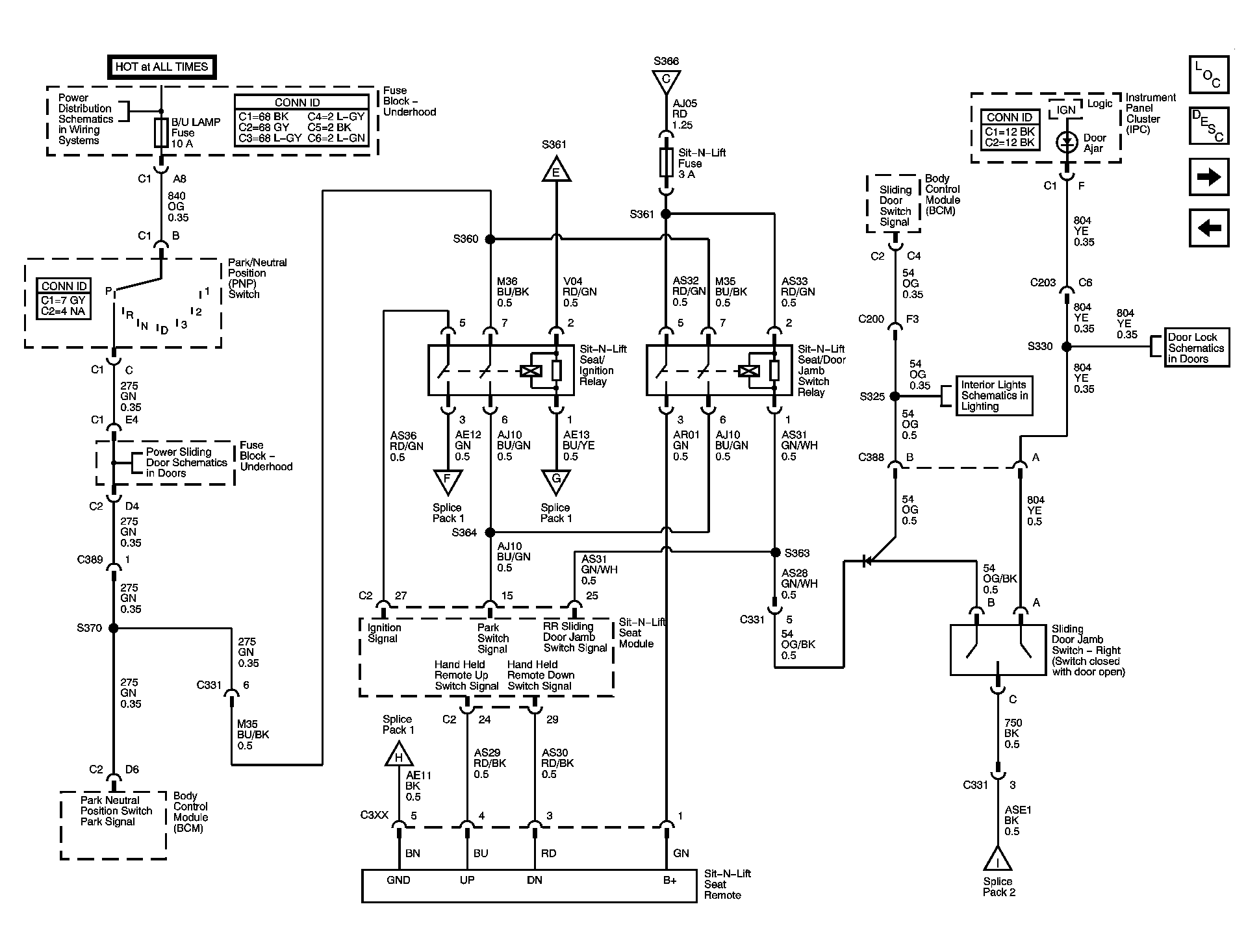

Fig 4: Sit-N-Lift Seat Remote and PNP Setting Schematic
GM1386146Courtesy of GENERAL MOTORS CORP.

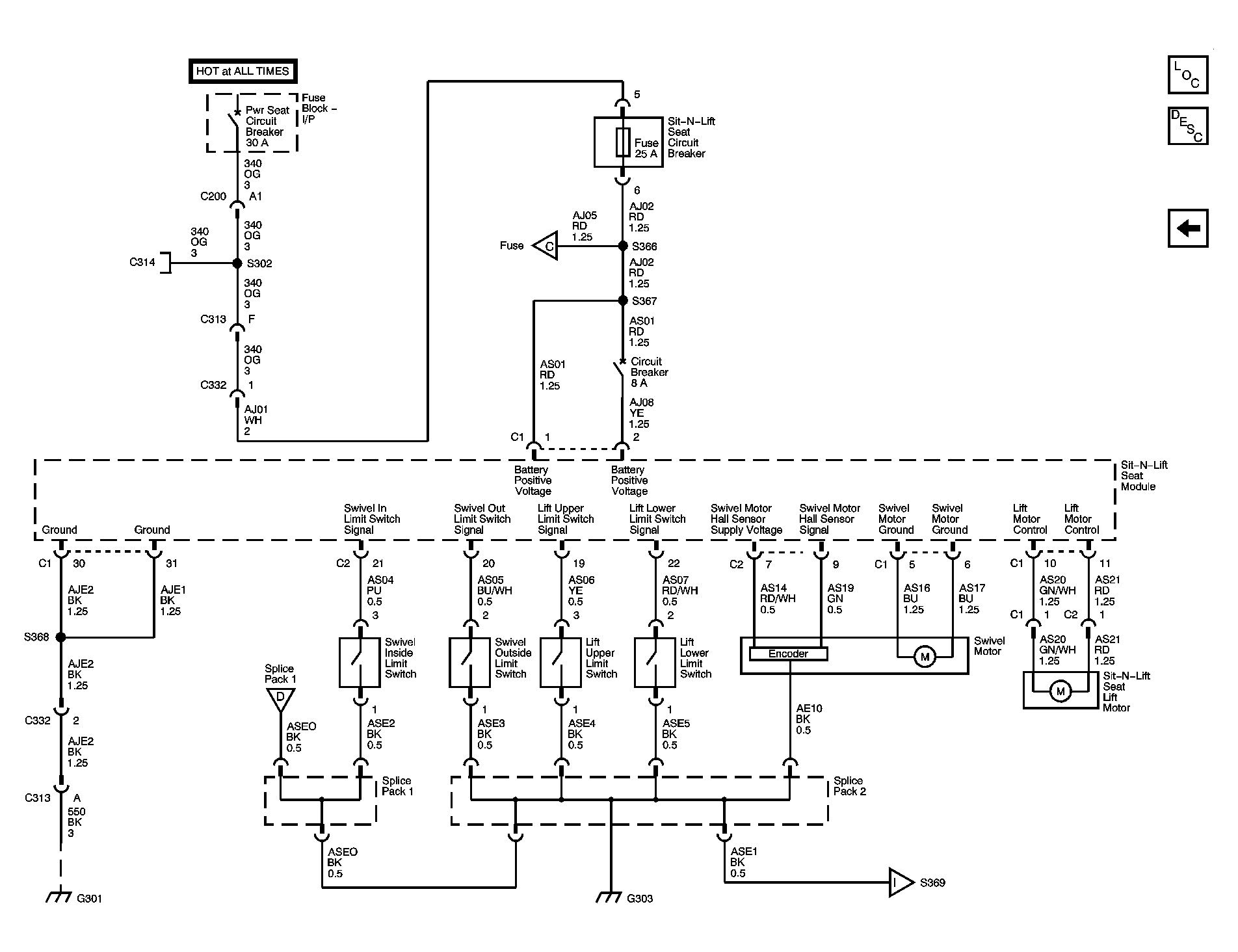

Fig 5: Sit-N-Lift Seat Module and Limit Switches Schematic
GM1386154Courtesy of GENERAL MOTORS CORP.
