Installation Procedure

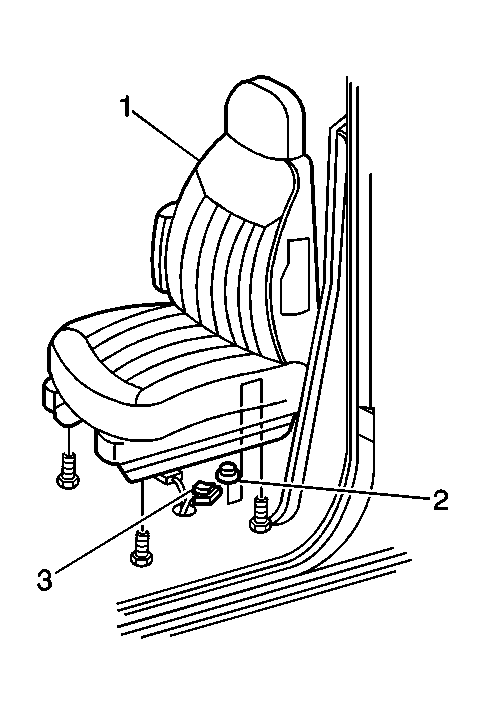

    Fig 1: View Of Seat Assembly
    GM317076Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the front seat stud washers are in place when installing the seat. Smaller diameter washers should be located on the forward front seat studs.
  1. Install the front seat (1) to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the front seat anchor nuts (2).

    Tighten:  Tighten the nuts to 40 N.m (30 lb ft).

  3. Install the under-seat storage tray. Refer to Storage Tray Replacement - Right Front Seat .
  4. Install the power seat connector to the body wiring harness 6-way power seat only.
  5. Install the seat belt electrical connector (3) to the body wiring harness.
  6. Install both the heater element electrical connectors to the body wiring harness.
  7. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 9 and to SIR Disabling and Enabling Zone 9 in SIR.
