Venture Base, Van Passenger
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Entertainment System
>>
Schematic and Routing Diagrams
>>
Video System Schematics
Video System Schematics

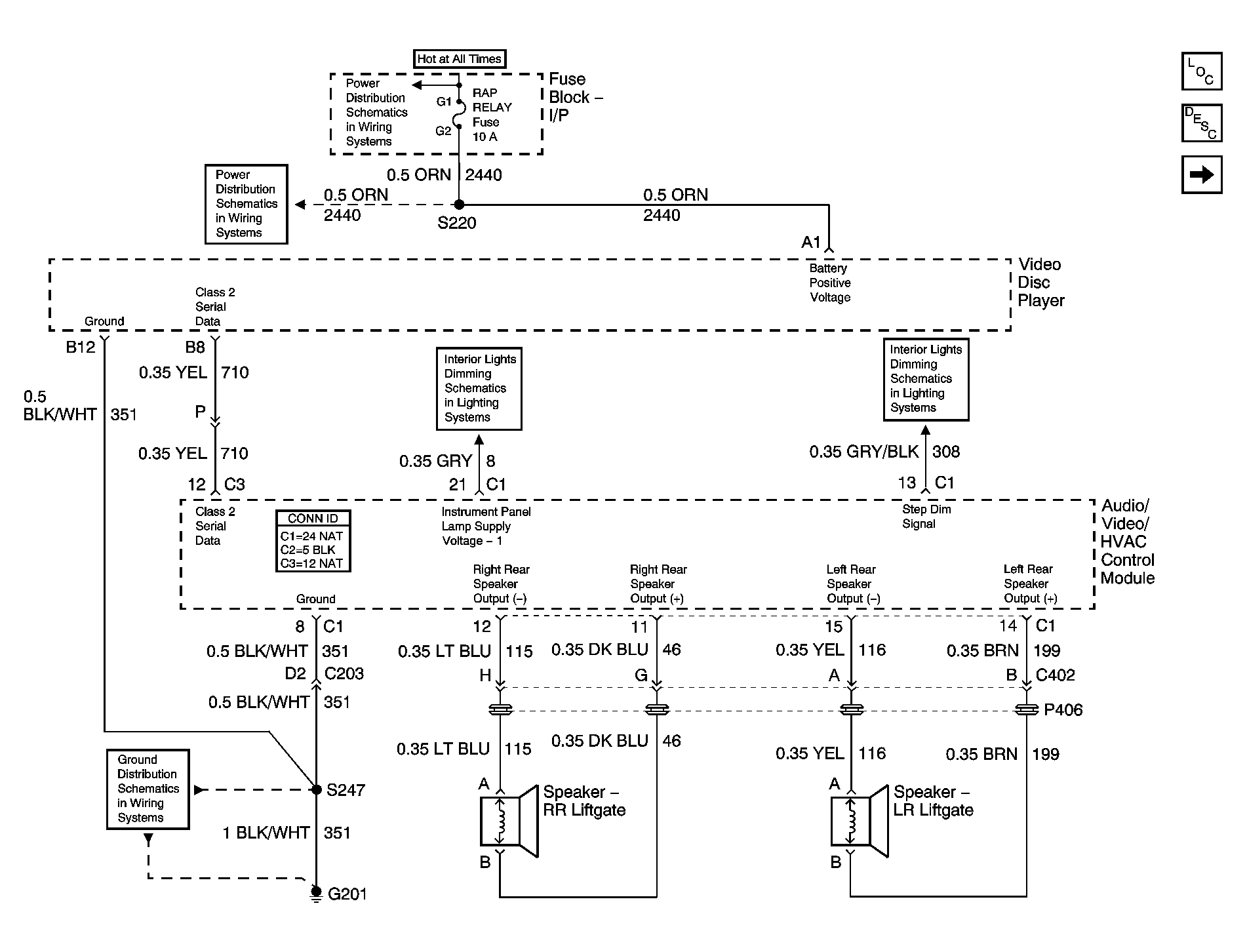

Fig 1: Power, Ground, Video Disc Player and Rear Video/Audio HVAC Control Module
Courtesy of GENERAL MOTORS CORP.

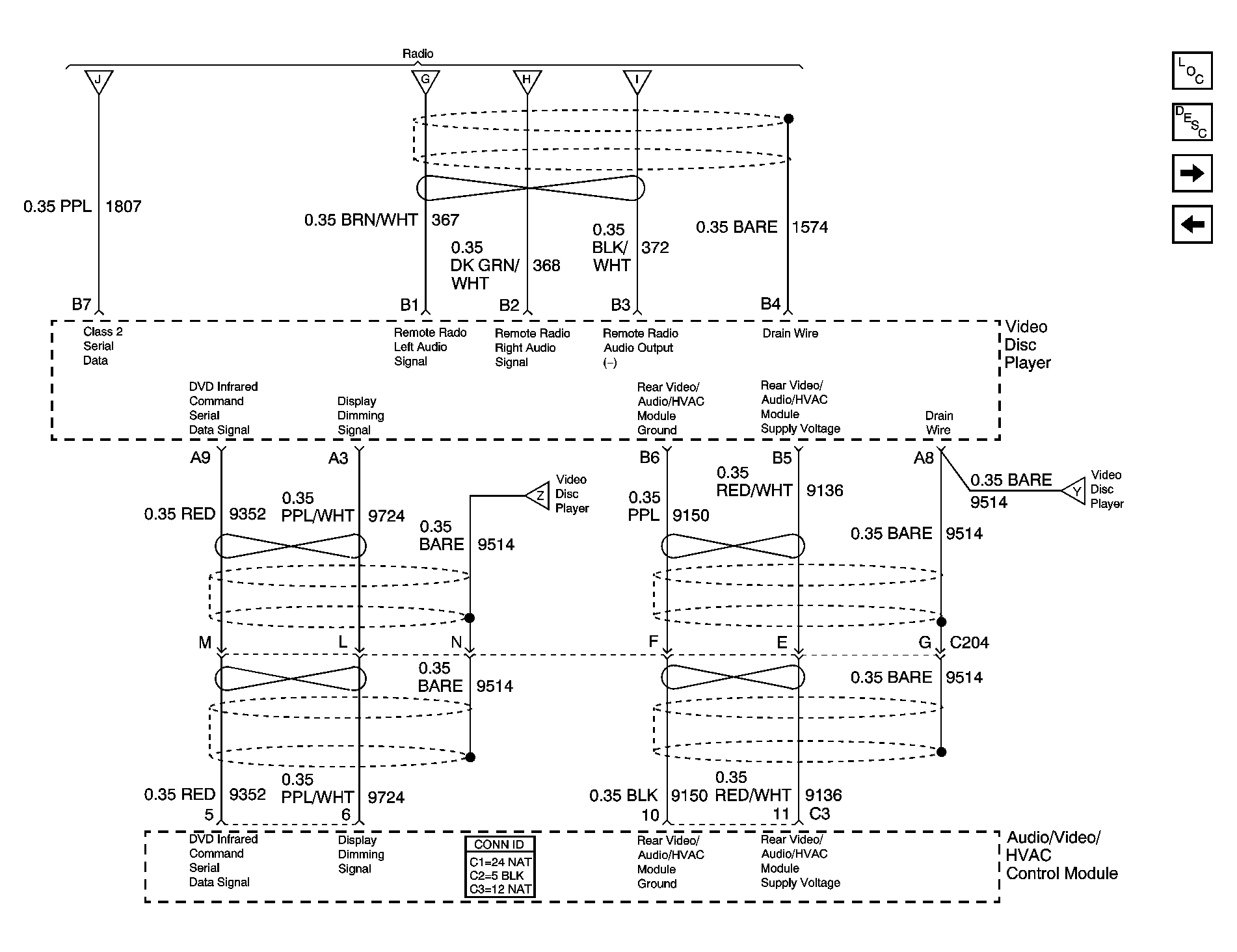

Fig 2: Video Disc Player and Rear Video/Audio/HVAC Module, Page 1 of 2
Courtesy of GENERAL MOTORS CORP.

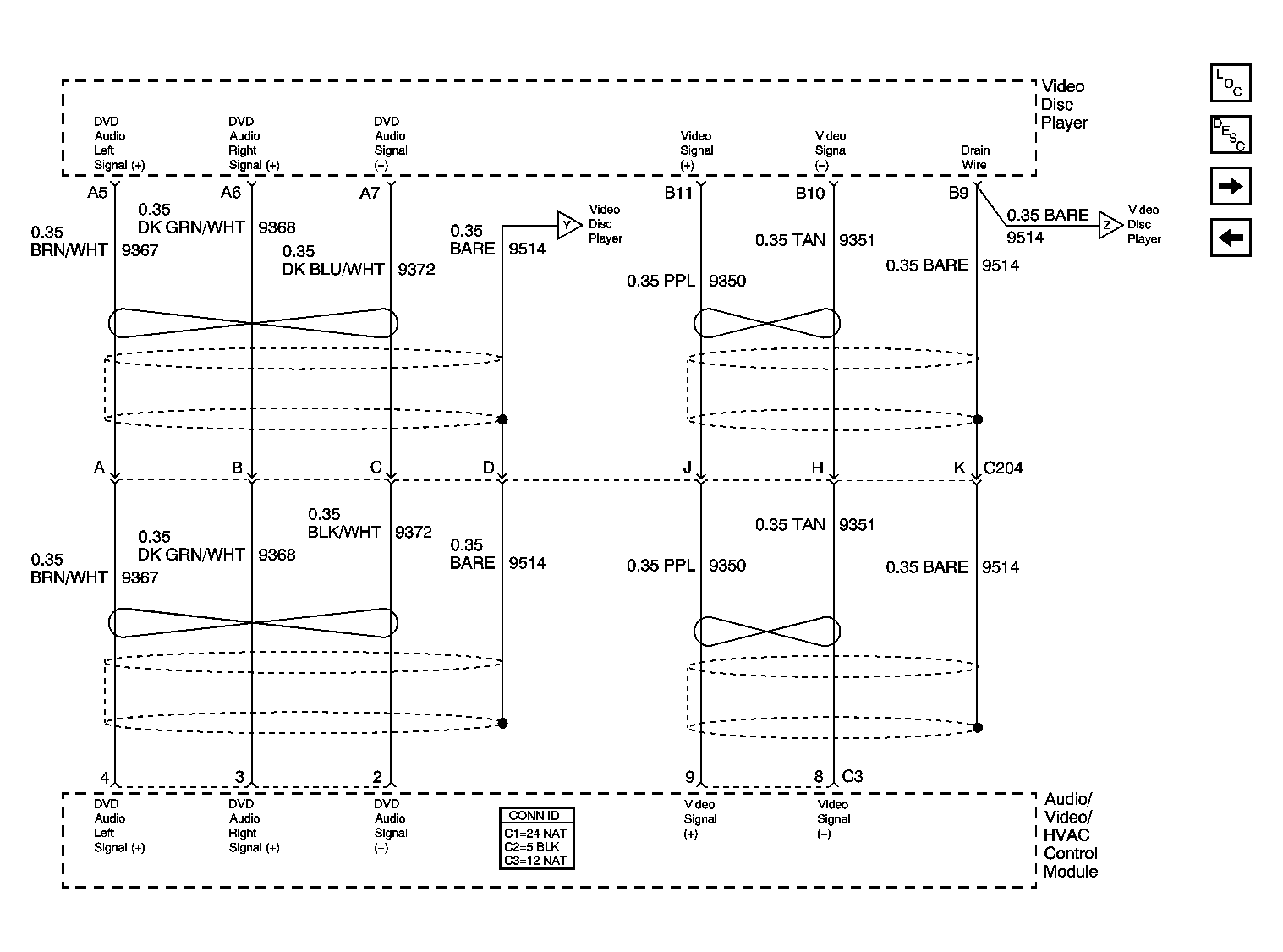

Fig 3: Video Disc Player and Rear Video/Audio HVAC Control Module, Page 2 of 2
Courtesy of GENERAL MOTORS CORP.

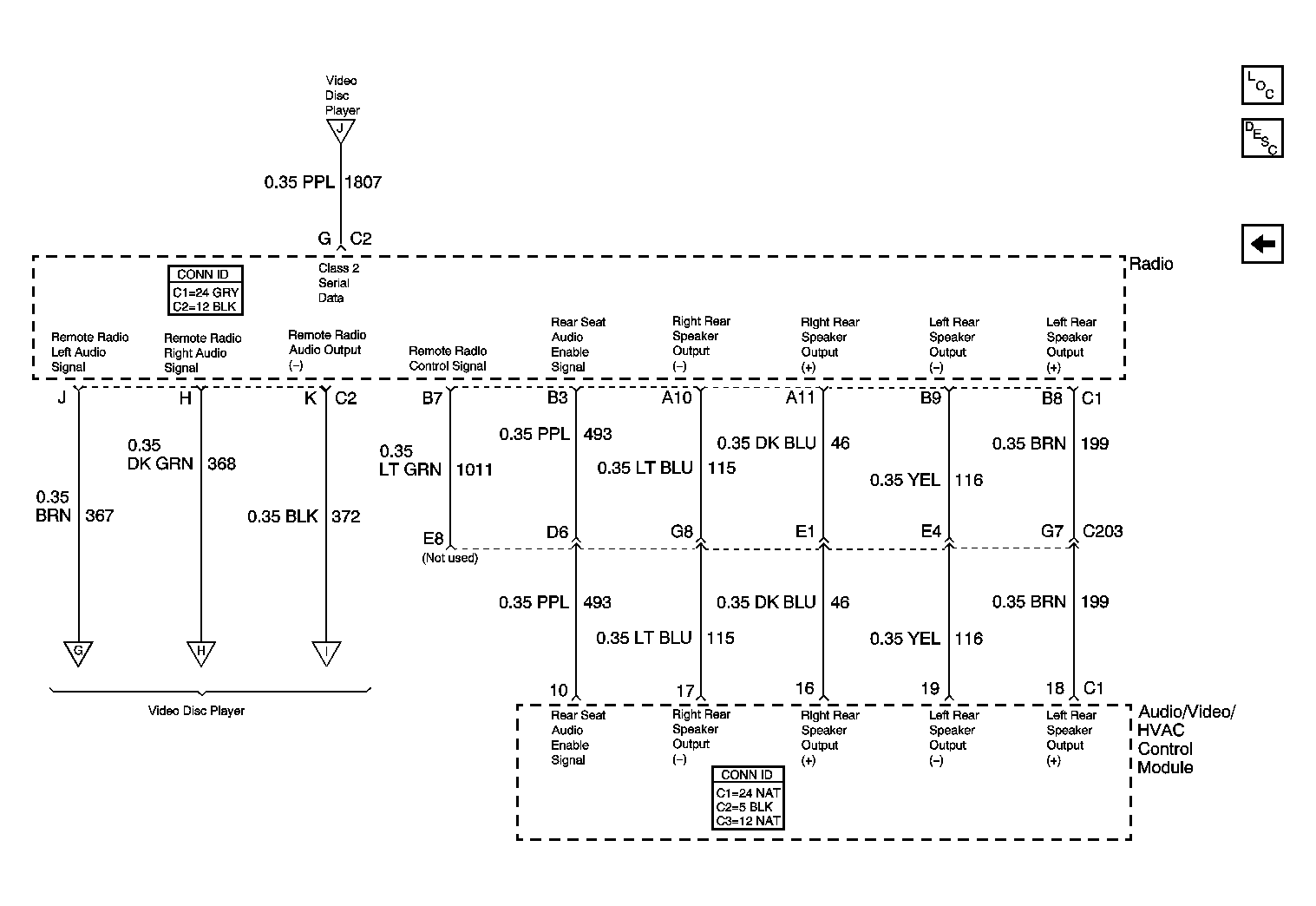

Fig 4: Radio (U32)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
