Installation Procedure

    Fig 1: Locating Antenna Extension Lead
    GM802334Courtesy of GENERAL MOTORS CORP.
  1. Connect the antenna extension lead to the antenna base.

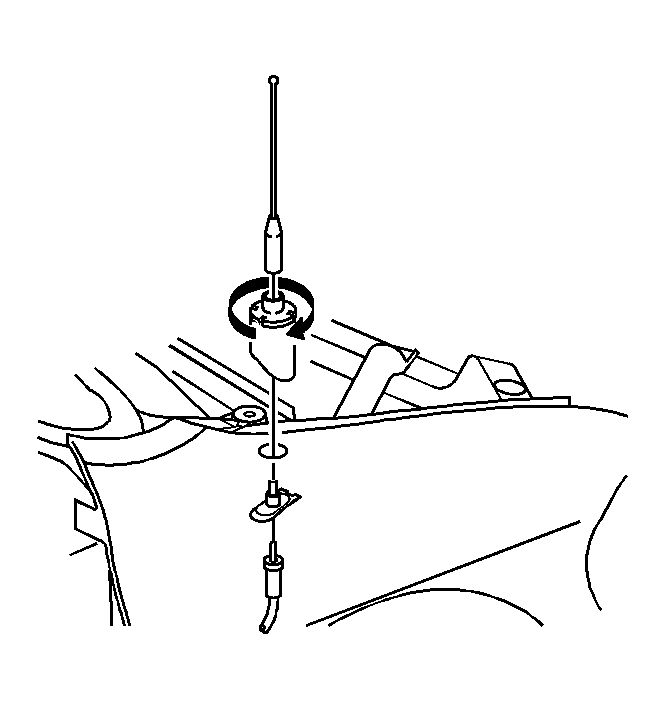

    2. Fig 2: View Of Antenna Components
    GM802312Courtesy of GENERAL MOTORS CORP.
  2. Run the antenna lead through the fender hole
  3. Align the lead with the antenna base.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Tighten the locking nut and fasten the antenna base to the fender.

    Tighten:  Tighten the nut to 5 N.m (44 lb in).
