Automatic Level Control Suspension Component Views

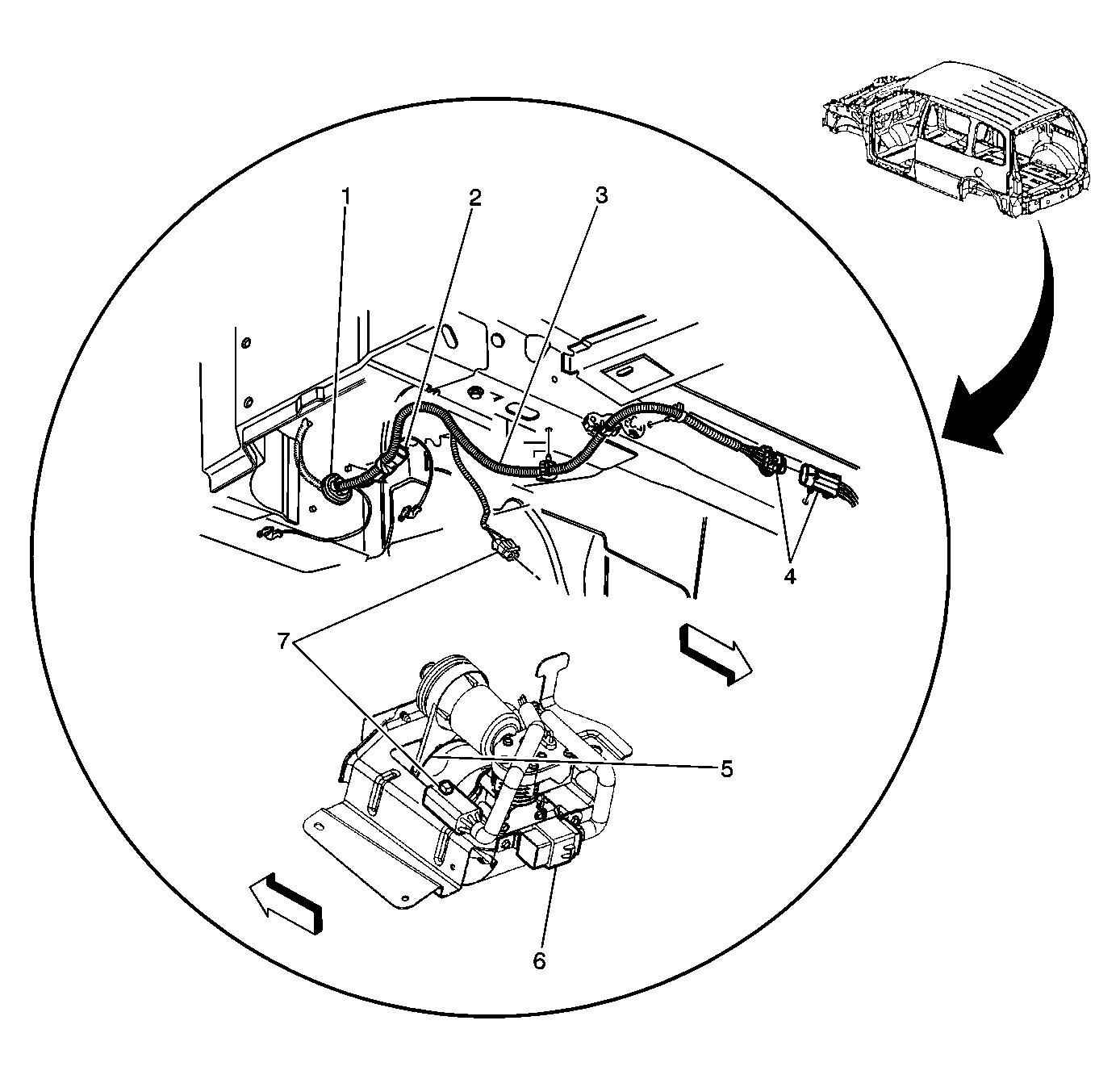

Fig 1: Below Vehicle, Rear of LR Wheelhouse Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Pass Through P403
2	In-line Connector C407
3	Auto Level Control Harness
4	Auto Level Control (ALC) Sensor Connector
5	Auto Level Control (ALC) Air Compressor
6	Auto Level Control (ALC) Air Inflator Relay
7	Auto Level Control (ALC) Connector

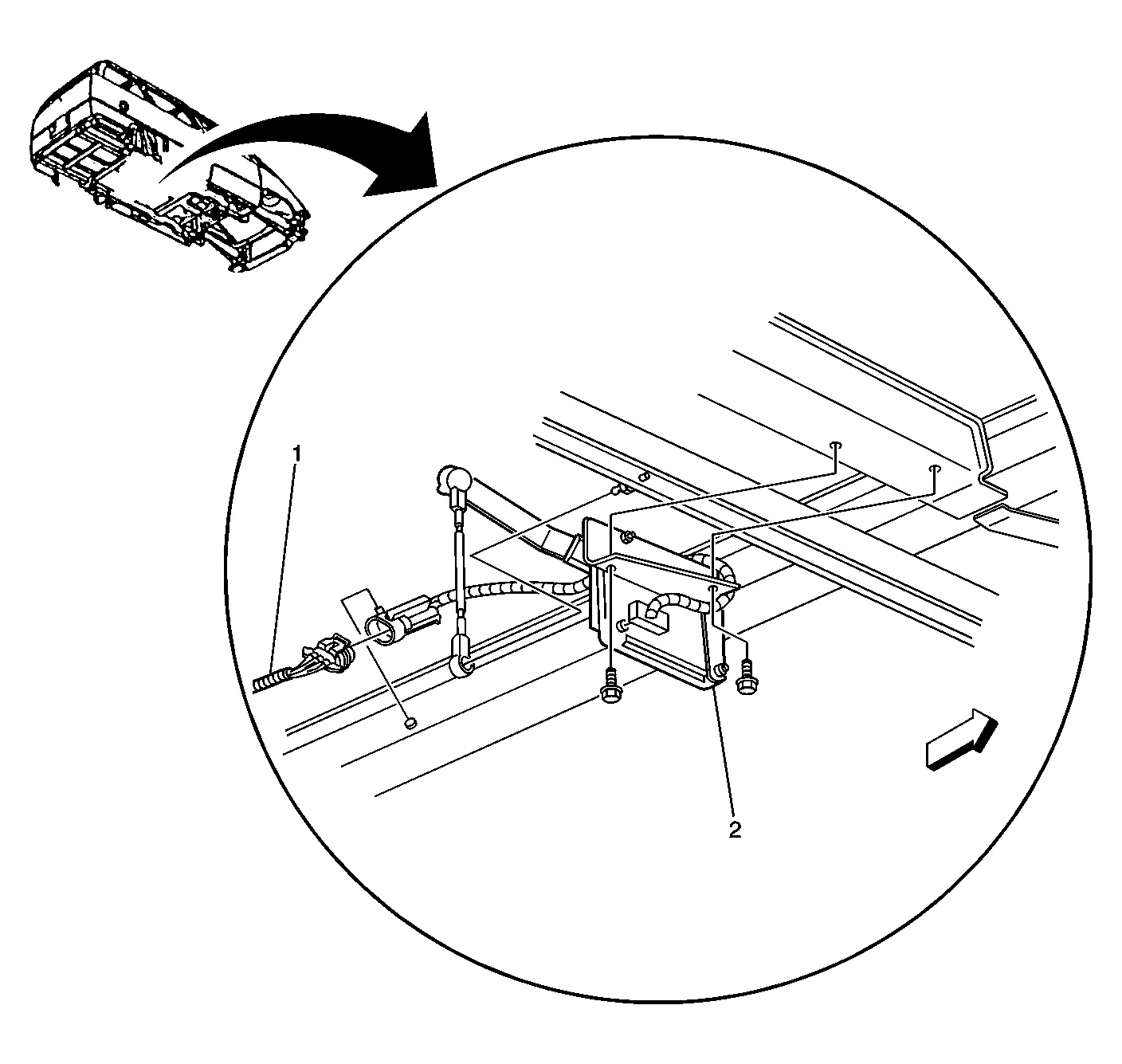

Fig 2: Underneath Rear of Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auto Level Control (ALC) Harness
2	Auto Level Control (ALC) Sensor
