Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the bracket between the roof and the headliner.
Slide the bracket inward until the locking tab and screw holes align.

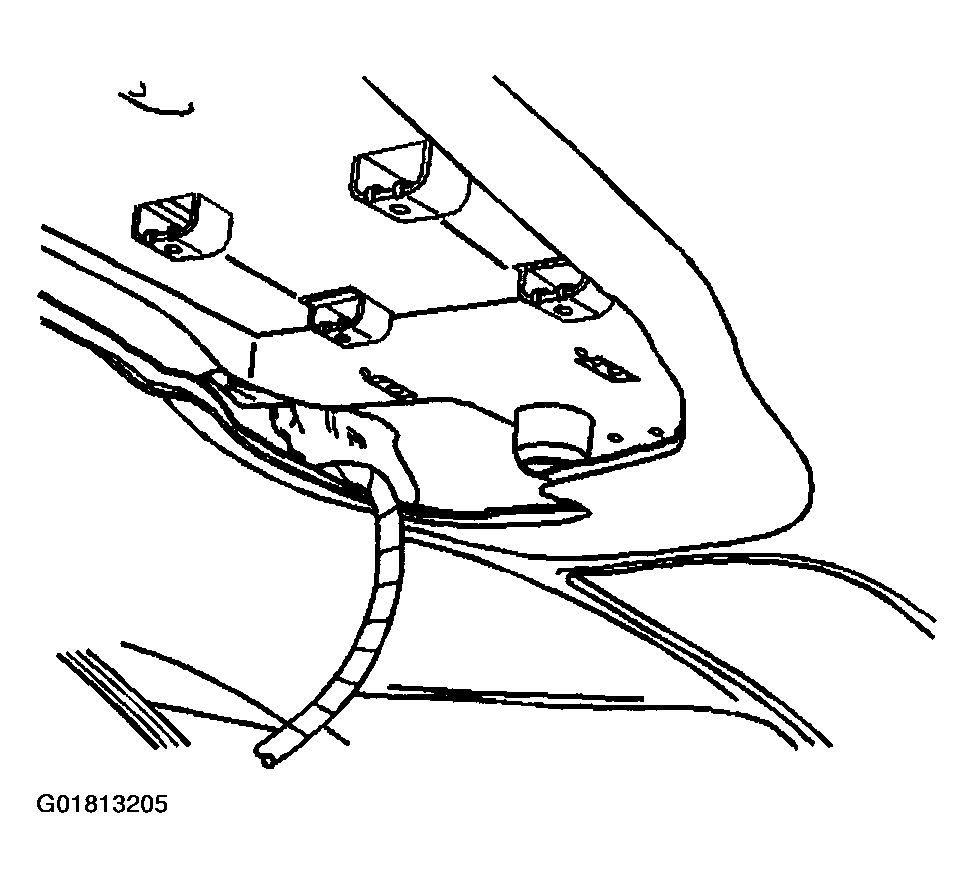

Fig 1: Installing Bracket To Headliner
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .

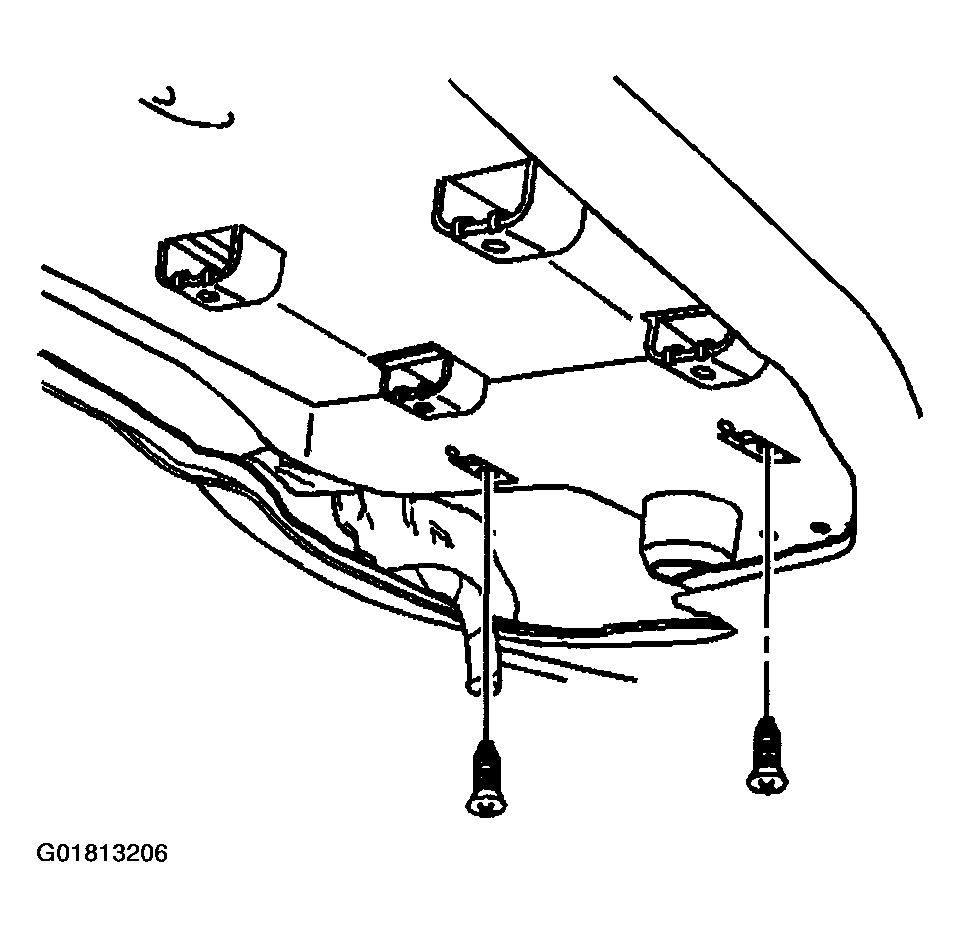

Fig 2: Screws & VES Bracket
Courtesy of GENERAL MOTORS CORP.
Install the screws into the VES bracket.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the VES overhead console. Refer to Overhead Console - VES Replacement .

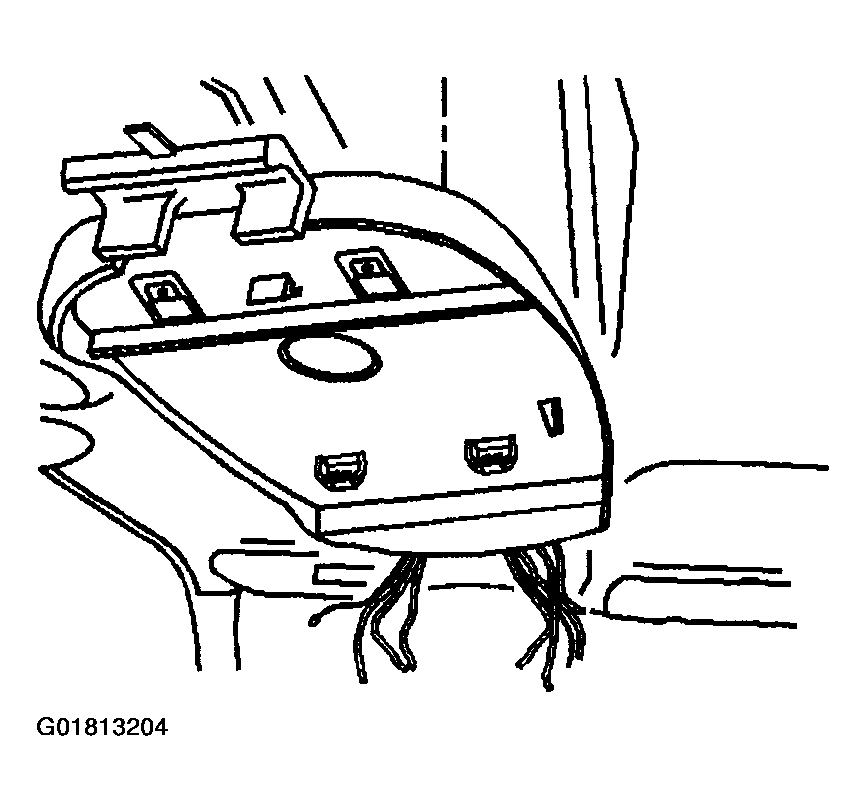

Fig 3: Installing VES Overhead Console
Courtesy of GENERAL MOTORS CORP.
Install the forward overhead console cover.

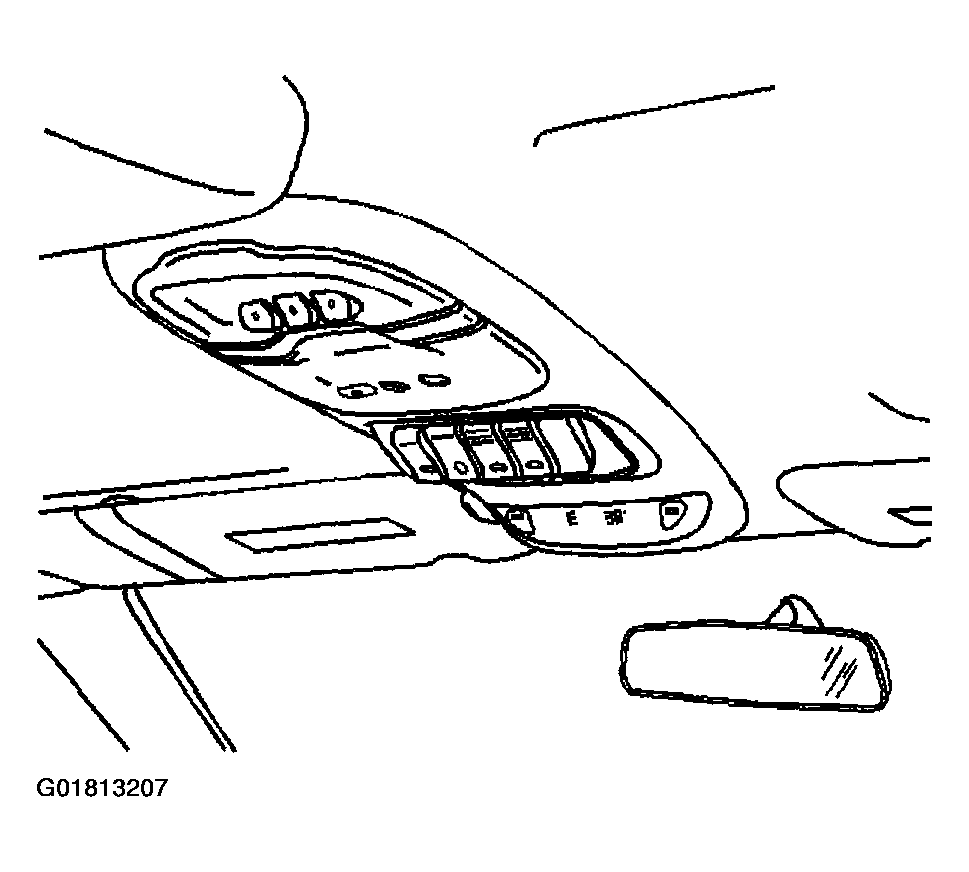

Fig 4: Installing Forward Overhead Console Cover

Courtesy of GENERAL MOTORS CORP.
