Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connectors to the DVD player.
NOTE: Refer to FASTENER NOTICE .

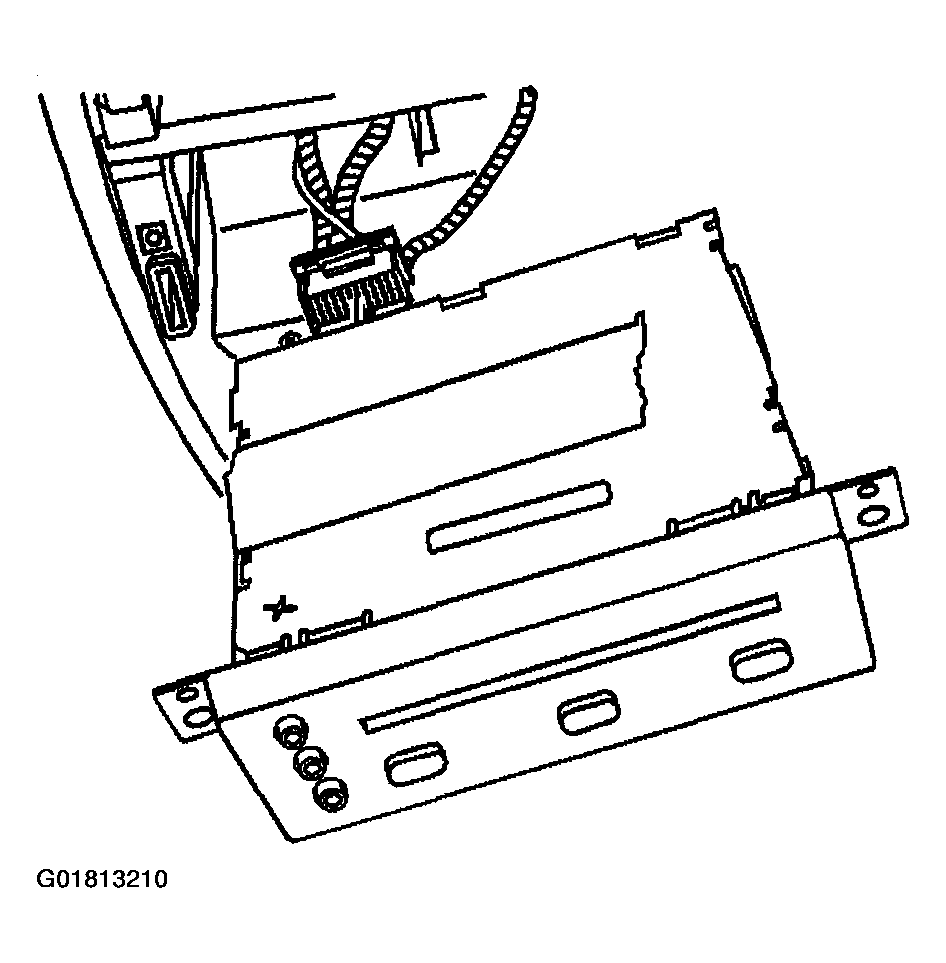

Fig 1: Connecting Electrical Connectors From DVD Player
Courtesy of GENERAL MOTORS CORP.
Slide the DVD player inward and fasten with screws.
Tighten

Tighten the screws to 2 N.m (18 lb in).
Install the bezel to the floor console. Refer to POWER ACCESSORY PORT REPLACE - FRONT FLOOR CO .

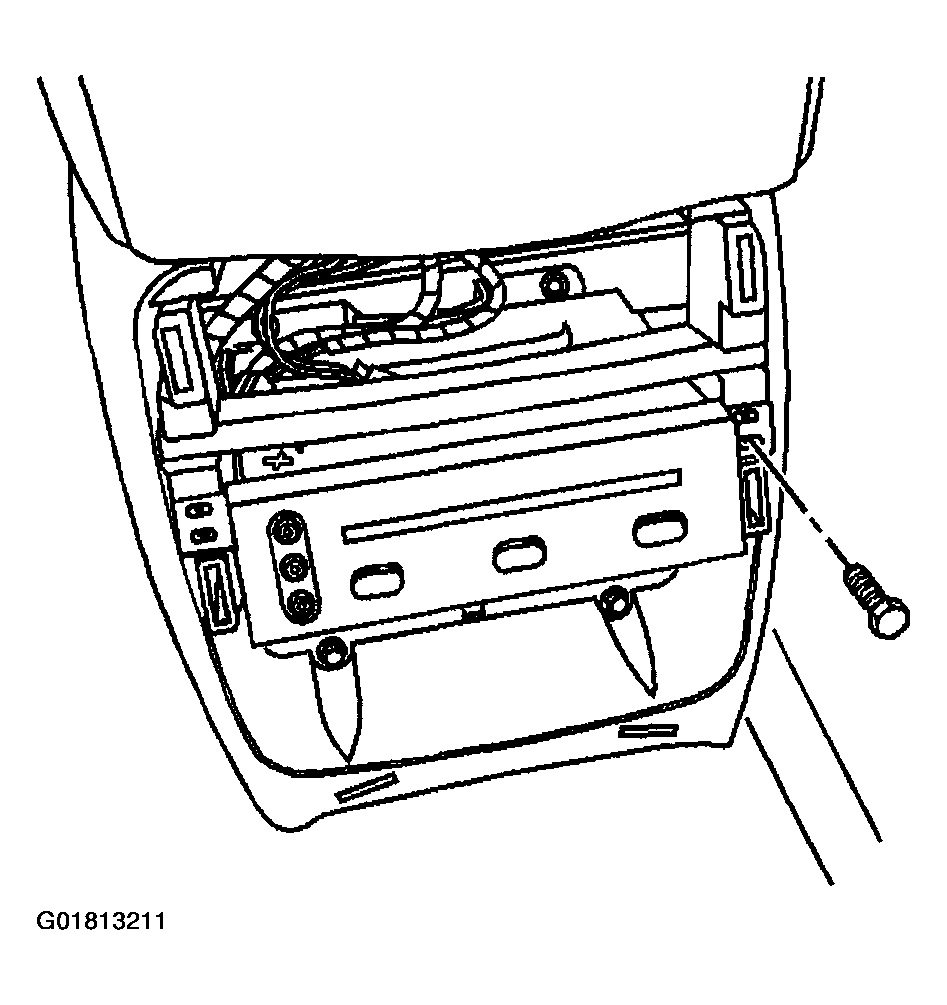

Fig 2: Installing Mounting Screws From DVD Player
Courtesy of GENERAL MOTORS CORP.
