Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the headlamp switch to the instrument panel:
    1. 2.1. Align the pins with the alignment hole.
    2. 2.2. Push in the headlamp switch until secure.
  3. Install the instrument cluster trim plate. Refer to TRIM PANEL REPLACEMENT - IP CLUSTER .

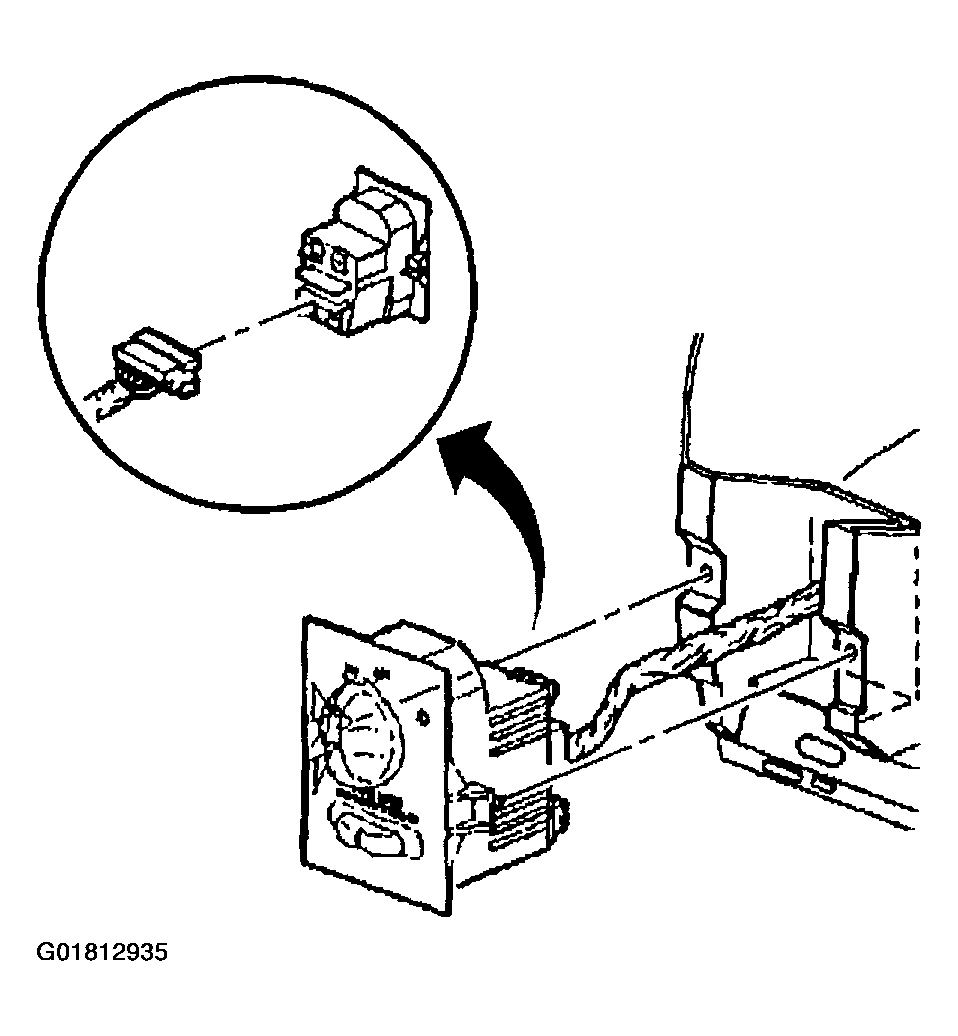

    Fig 1: Installing Headlamp Switch
    G01812935Courtesy of GENERAL MOTORS CORP.
