Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the bulb into the socket.
  2. Snap the cargo lamp lens into the cargo lamp.
  3. Connect the electrical connectors to the cargo lamp.

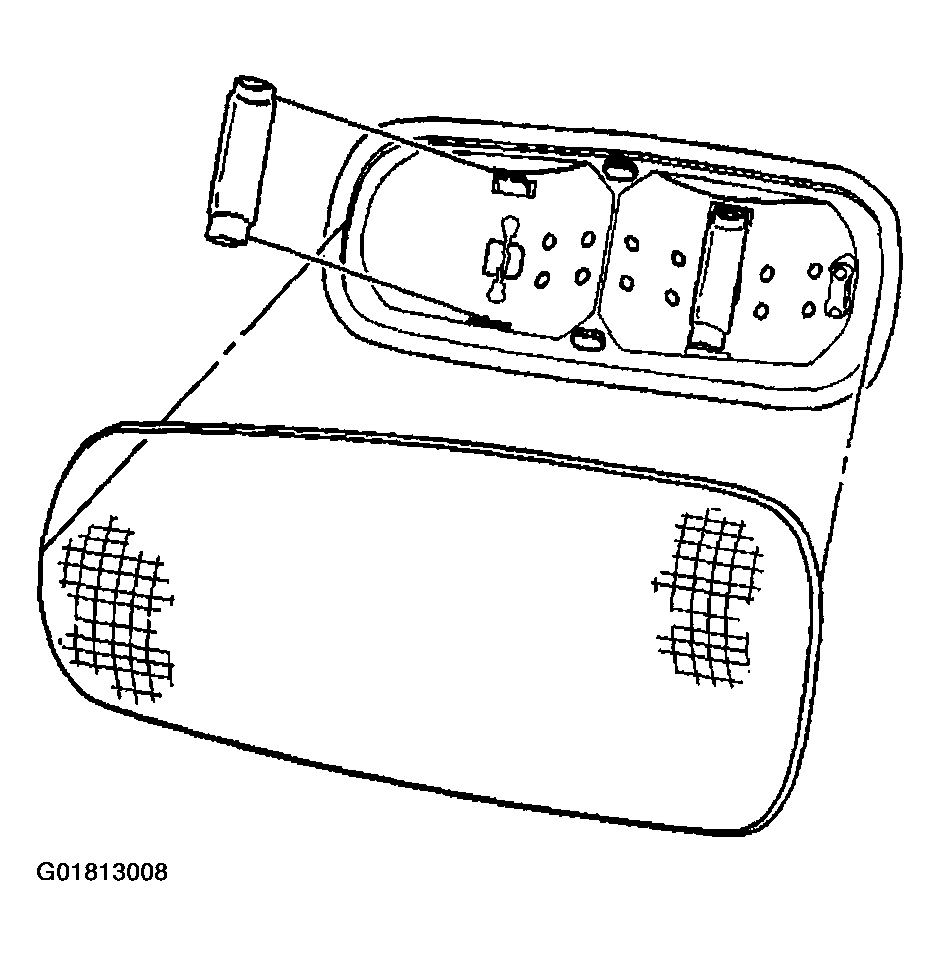

    Fig 1: Installing Bulb From Socket (Cargo Lamp)
    G01813008Courtesy of GENERAL MOTORS CORP.
  4. Install the cargo lamp to the headliner.
  5. Snap the cargo lamp into place.

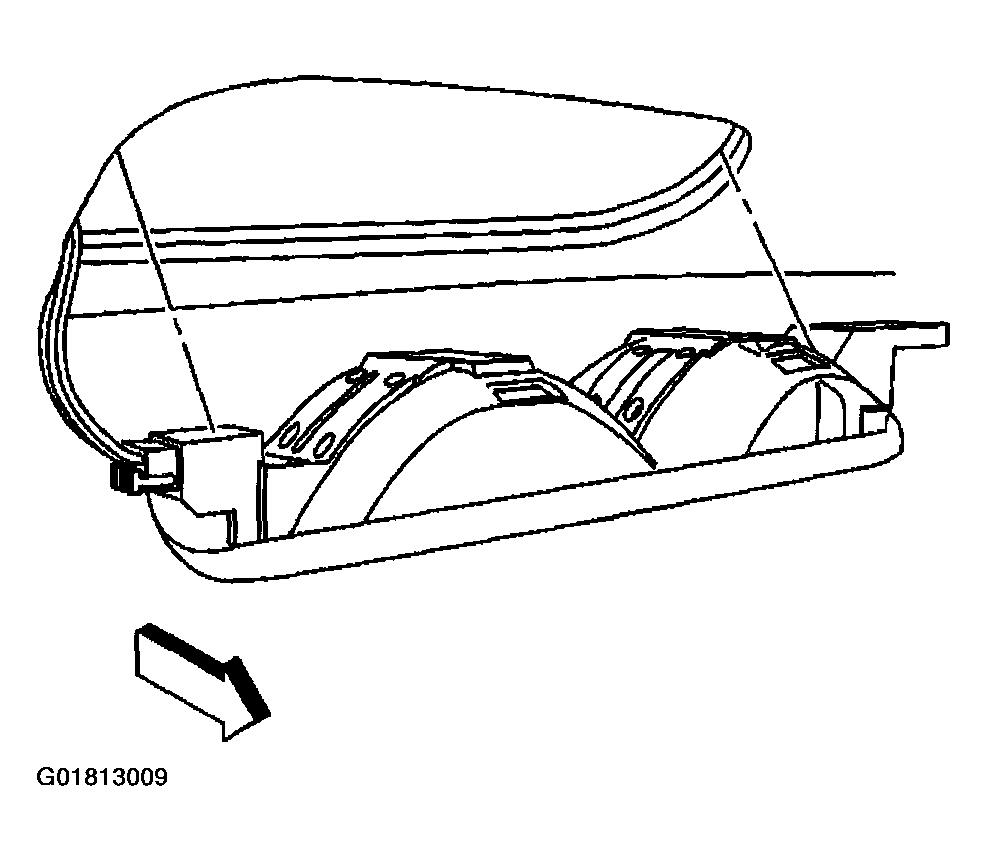

    Fig 2: Installing Cargo Lamp & Headliner
    G01813009Courtesy of GENERAL MOTORS CORP.
