Installation Procedure

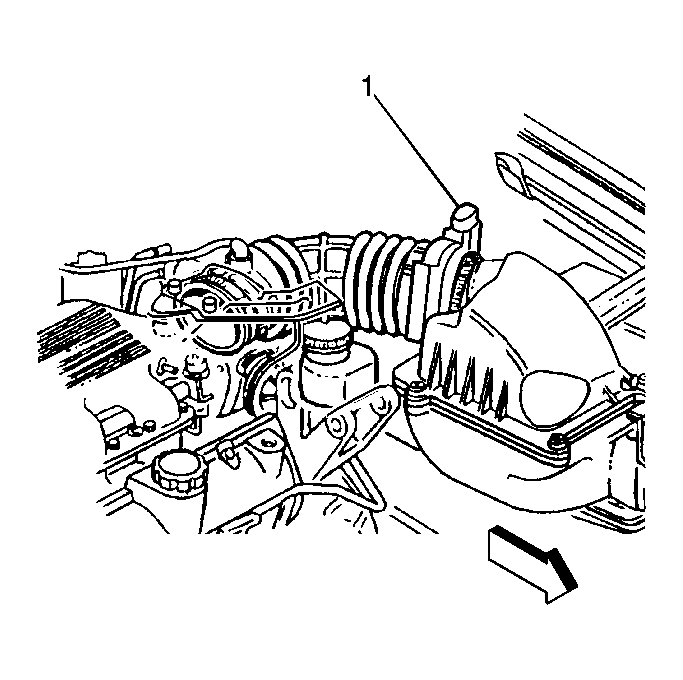

    Fig 1: View Of Mass Air Flow Sensor
    GM15974Courtesy of GENERAL MOTORS CORP.
  1. Install the MAF sensor to the air filter housing.
  2. Install the air inlet duct to the MAF sensor and throttle body.
  3. Connect the IAT sensor (1).
  4. Connect the MAF sensor.
