Installation Procedure

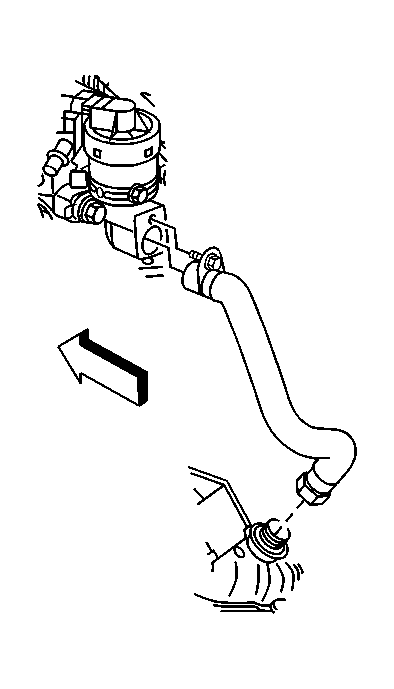

    Fig 1: Locating EGR Pipe
    GM621066Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the EGR valve pipe to the exhaust manifold.

    Tighten:  Tighten the EGR pipe nut to 25 N.m (18 lb ft).

  2. Install the EGR pipe bolt to the EGR valve.

    Tighten:  Tighten the EGR pipe bolt to 25 N.m (18 lb ft).
