Installation Procedure

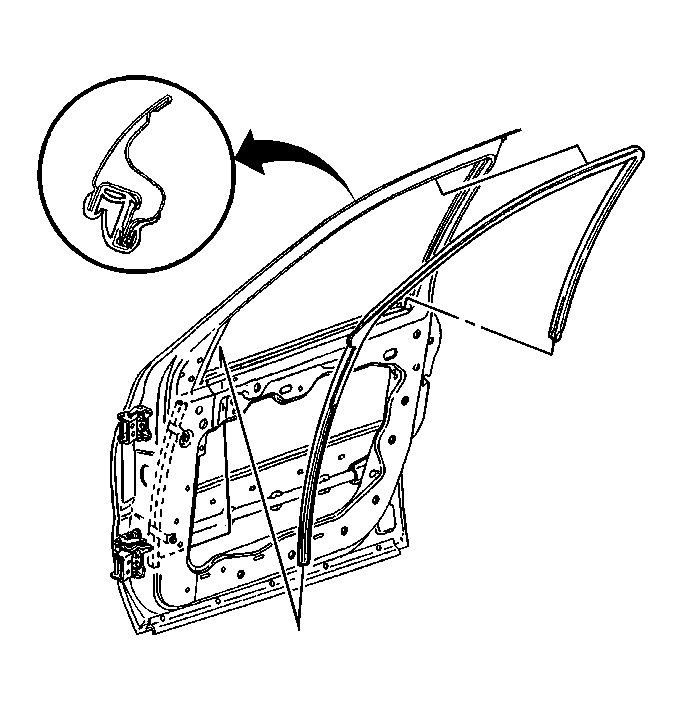

    Fig 1: View Of Window Weatherstrip
    GM319752Courtesy of GENERAL MOTORS CORP.
  1. Install the weatherstrip to the door frame.
  2. Install the front door window. Refer to Window Replacement - Front Door .
  3. Install the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Install the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
