Theft Deterrent System Component Views

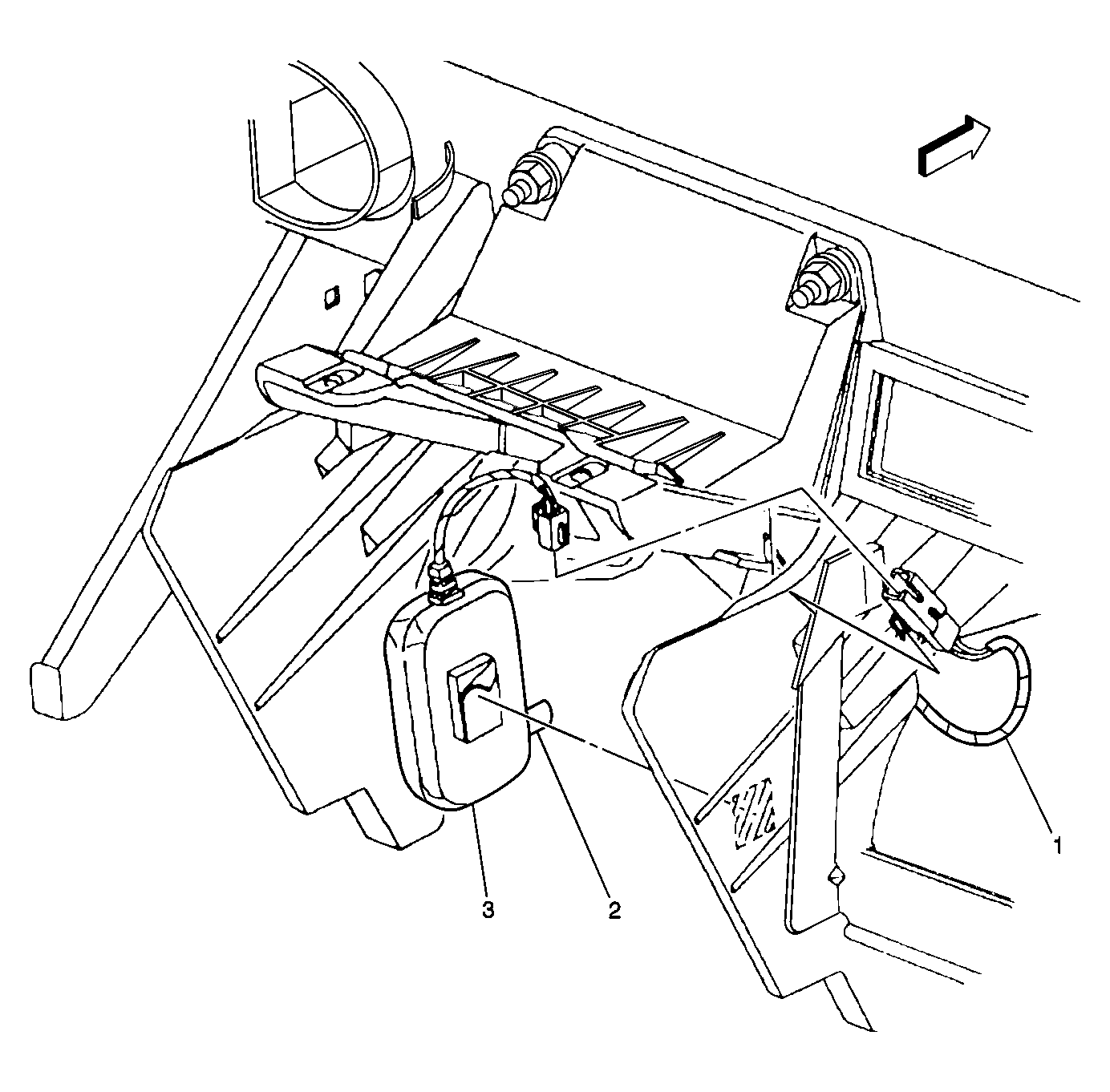

Fig 1: RH Side of Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness
2	Shock Sensor, Sensitivity Adjustment
3	Shock Sensor

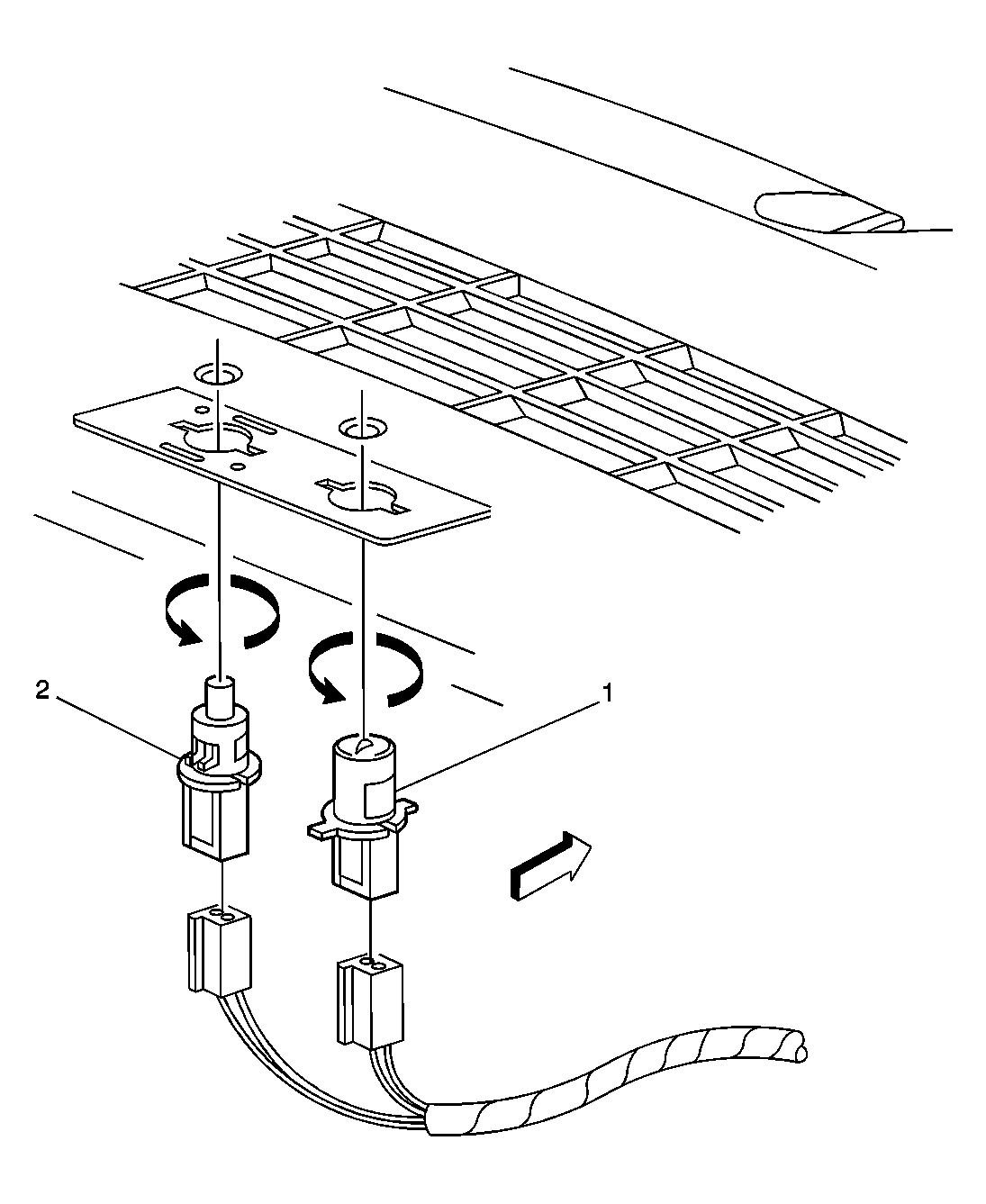

Fig 2: Security Indicator Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Daytime Running Lamp (DRL) Ambient Light Sensor
2	Theft LED
