Tracker RWD
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
Supplemental Inflatable Restraint System
>>
Component Locator
>>
SIR Component Views
SIR Component Views

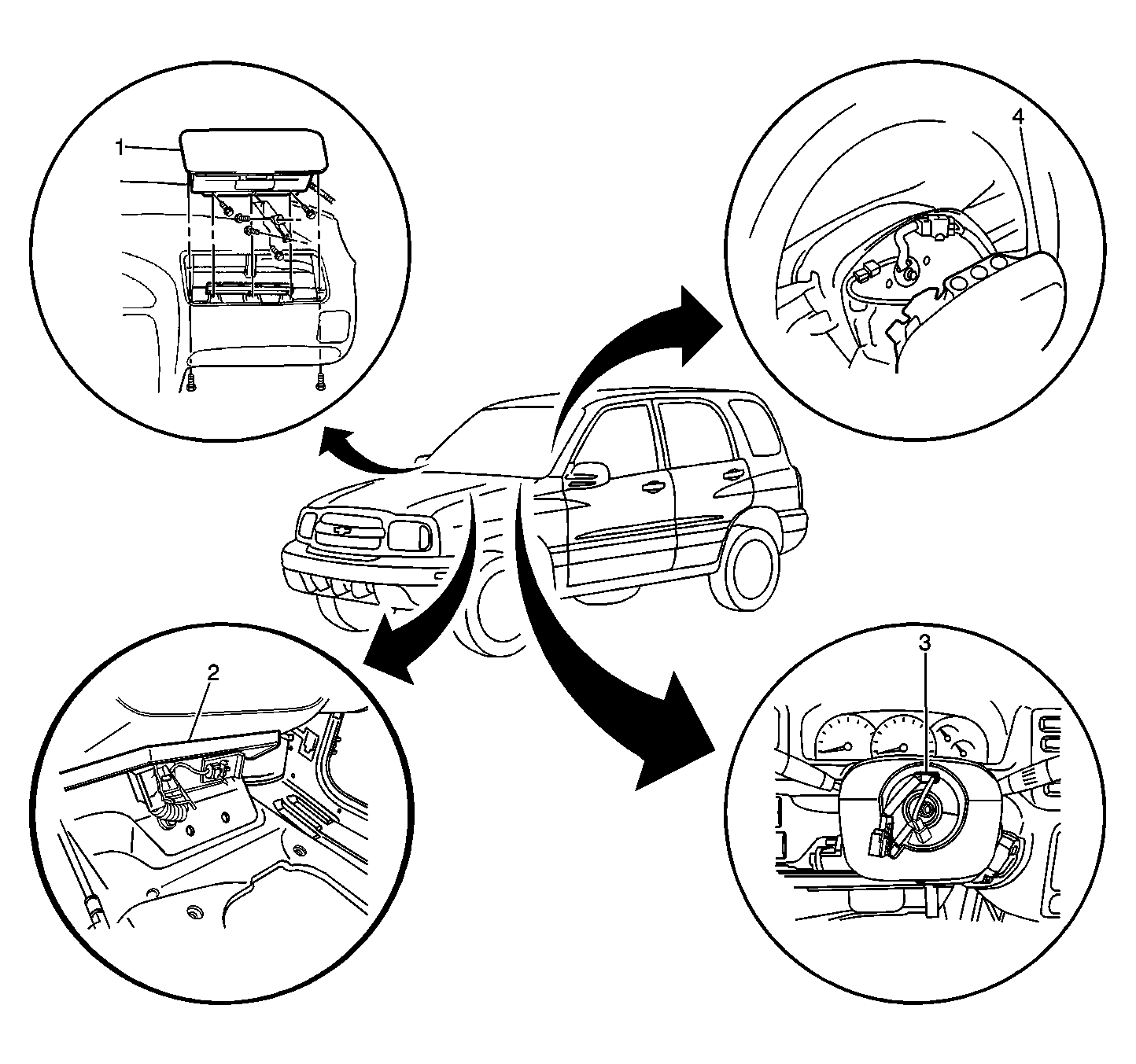

Fig 1: SIR Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Inflatable Restraint IP Module
2
Sensing and Diagnostic Module (SDM)
3
Inflatable Restraint Steering Wheel Module Coil
4
Inflatable Restraint Steering Wheel Module
