Engine Compartment Fuse Block (2002)

Engine compartment fuse block is located on passenger's side of the engine compartment. See Fig 1.

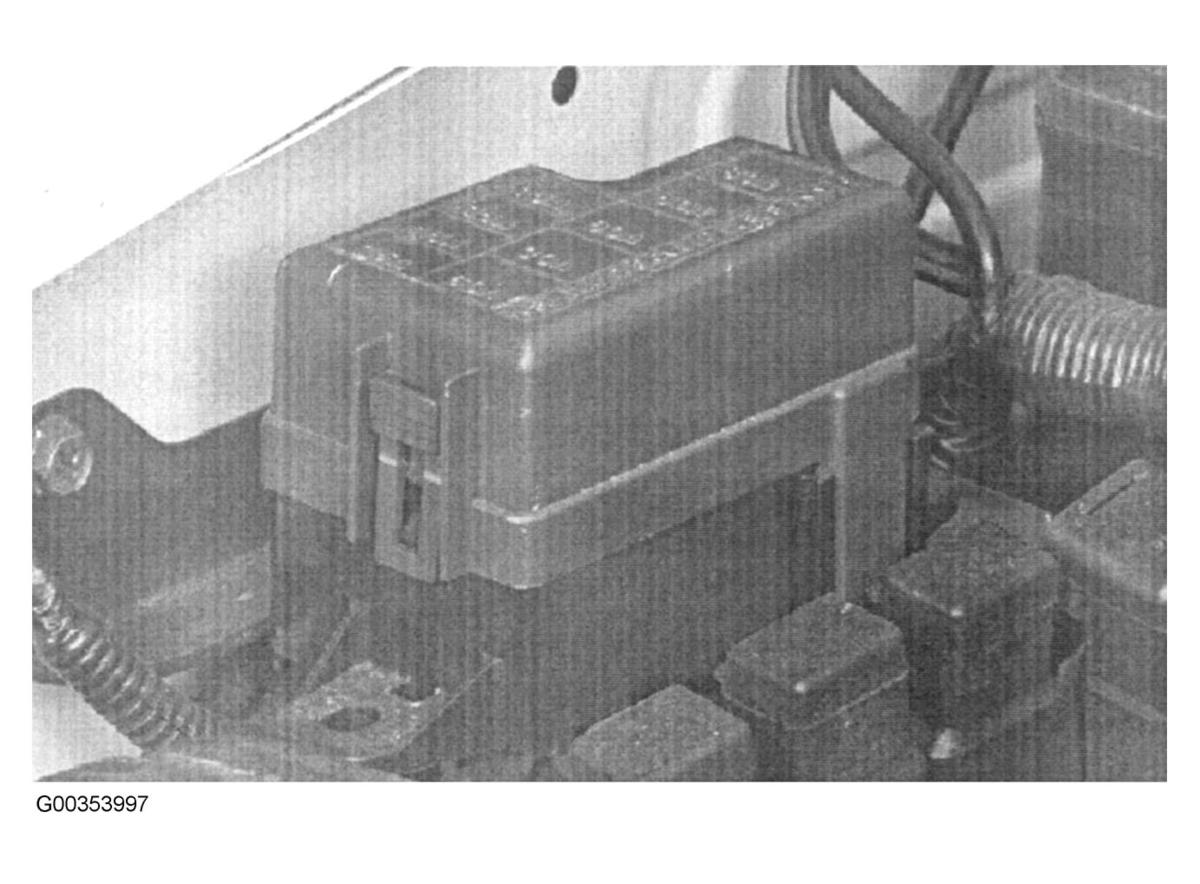

Fig 1: Locating Engine Compartment Fuse Block

Courtesy of GENERAL MOTORS CORP.

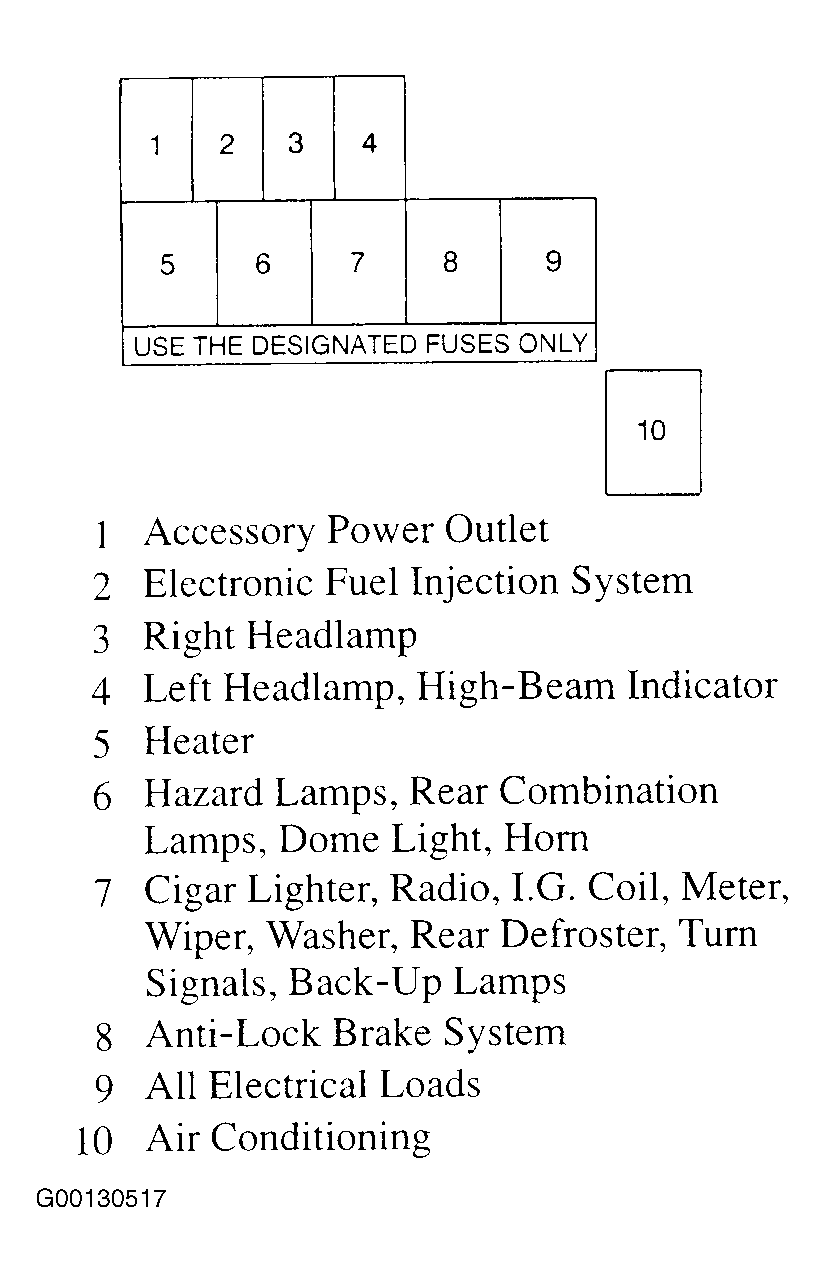

Fig 2: Identifying Engine Compartment Fuse Block Components & Legend (2002)

Courtesy of GENERAL MOTORS CORP.
