Installation Procedure

  1. Install the rear ABS reluctor wheel (2) onto the rear axle shaft. Refer to Rear Axle - Assemble (RPO (M41)) or Rear Axle - Assemble (RPO (M59)) in Rear Drive Axle.
  2. Install the axle shaft. Refer to Rear Axle - Assemble (RPO (M41)) or Rear Axle - Assemble (RPO (M59)) in Rear Drive Axle.
  3. Perform Diagnostic System Check - ABS .

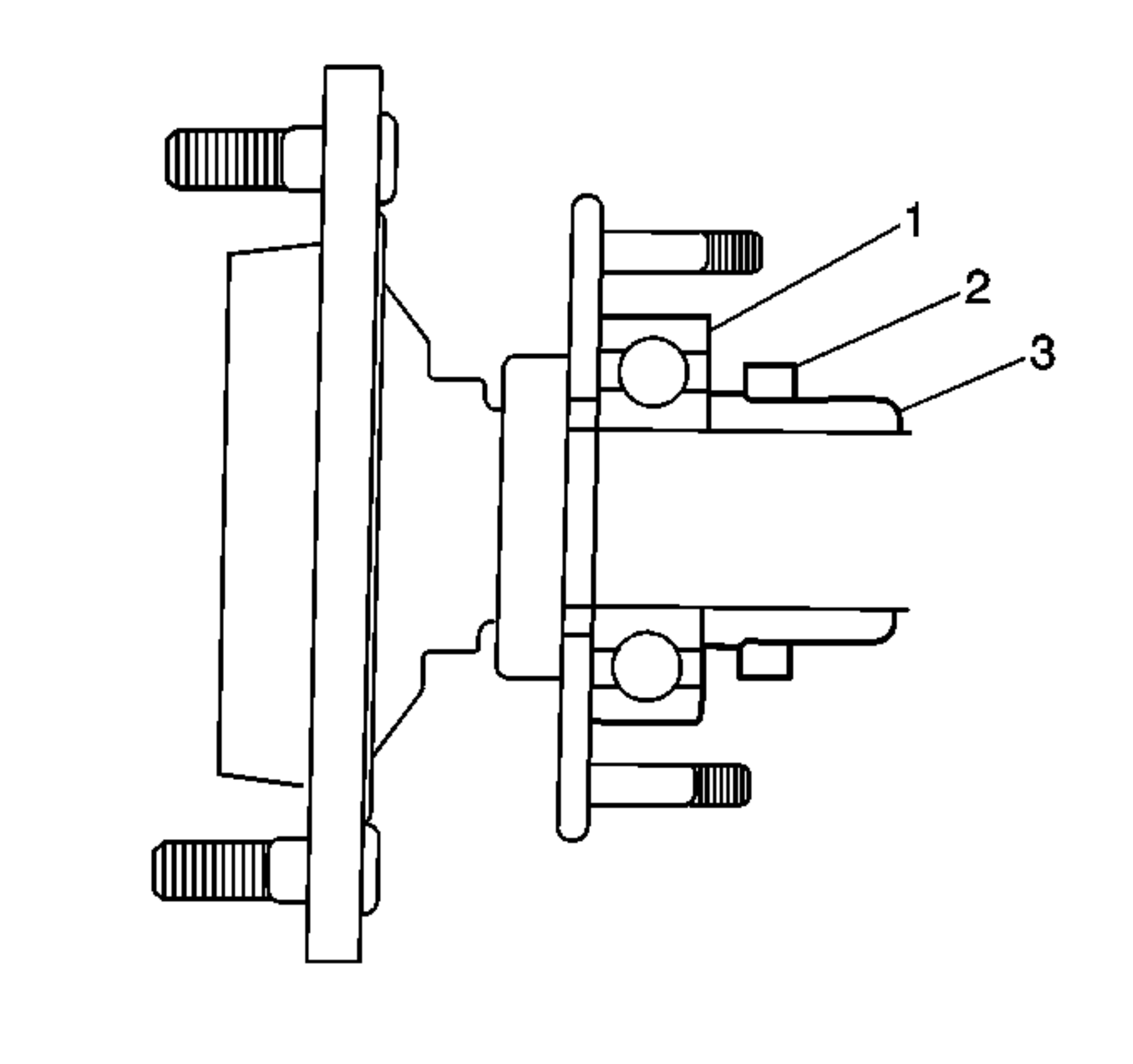

    4. Fig 1: Installing ABS Reluctor Wheel
    GM468528Courtesy of GENERAL MOTORS CORP.
