Removal Procedure

  1. Remove the Front Wheel Hub. Refer to Wheel Hub, Bearing, and Seal Replacement (4WD) or Wheel Hub, Bearing, and Seal Replacement (2WD) in Front Suspension.
  2. Remove the ABS reluctor ring (1) from the wheel hub (2) by prying the ring away from the hub.

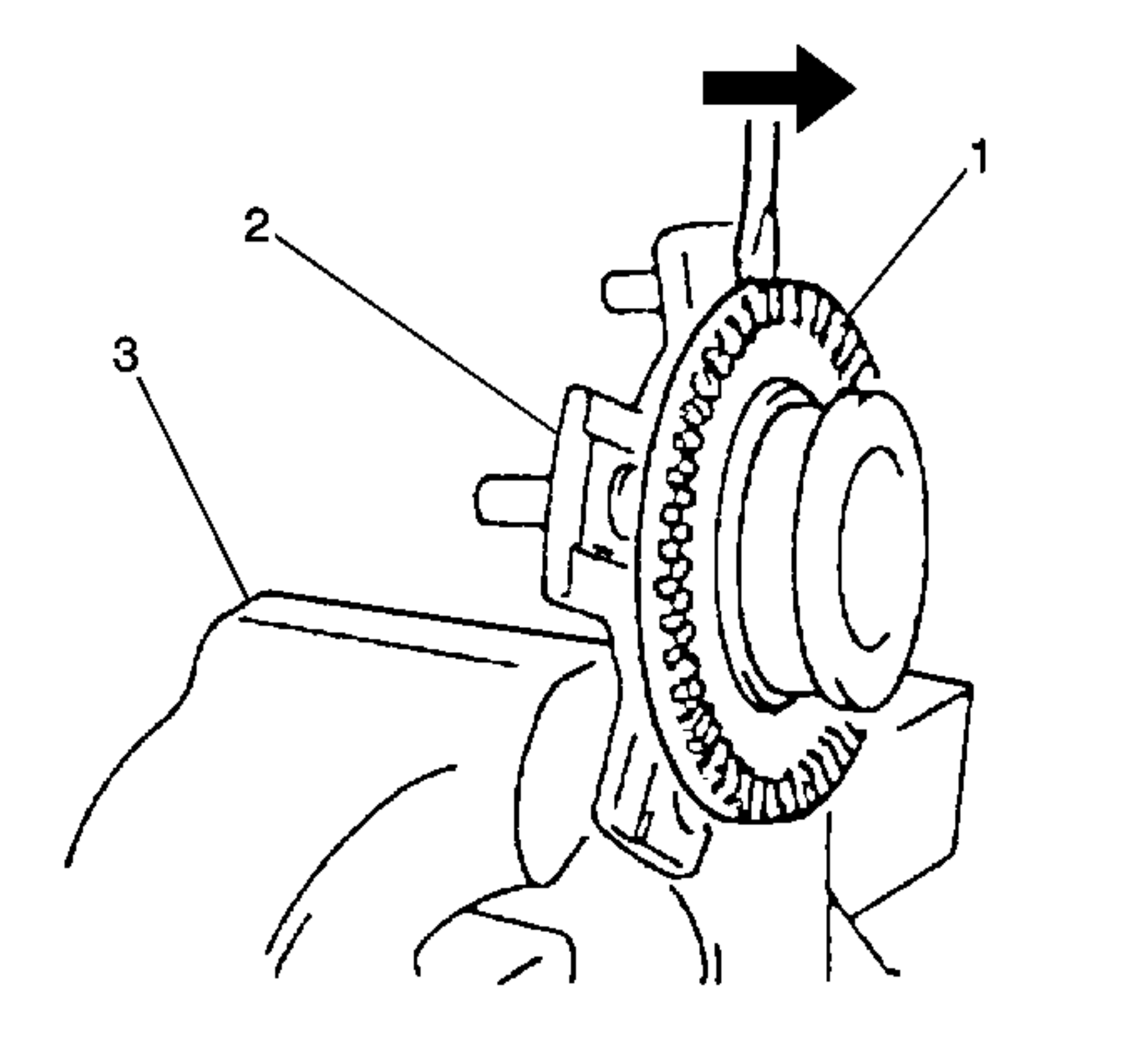

    3. Fig 1: View Of ABS Reluctor Ring & Wheel Hub
    GM464775Courtesy of GENERAL MOTORS CORP.
