Installation Procedure

  1. Install the cruise control release switch (1) to the clutch pedal bracket by screwing it in a clockwise direction. Secure the release switch with the locknut.
  2. Connect the cruise control release switch electrical connector (3).
  3. Install the IP steering column opening trim plate. Refer to Instrument Panel (I/P) Trim Panel Replacement - Left in Instrument Panel, Gages and Console.

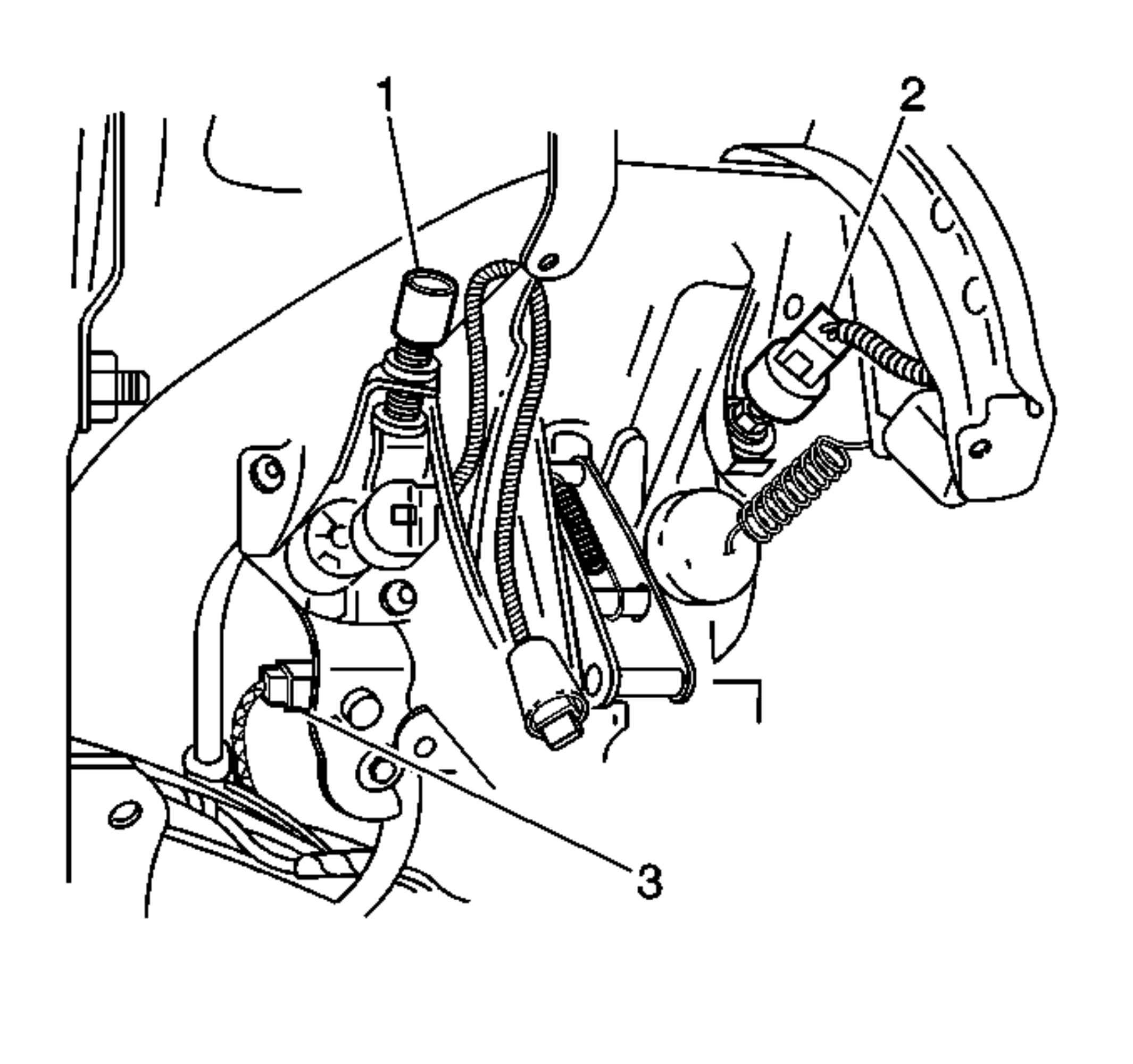

    4. Fig 1: View Of Cruise Control Release Switch & Electrical Connector
    GM239168Courtesy of GENERAL MOTORS CORP.
