Junction Block C5

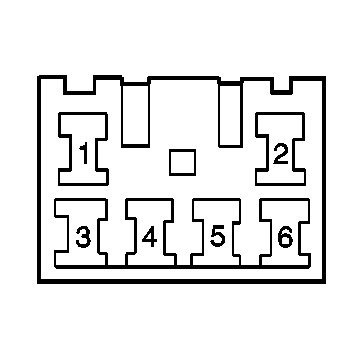

Junction Block C5 Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Function |
| 1 |
- |
Not Used |
| 2 |
BLK/WHT |
Ignition Positive Voltage-IG Fuse 20A |
| 3 |
RED/BLU |
Tail Relay Control |
| 4 |
GRN/RED |
Left Turn Signal |
| 5 |
GRN/YEL |
Right Turn Signal |
| 6 |
YEL/BLU |
Ignition Positive Voltage-WIP Fuse 15A |
