Junction Block C1

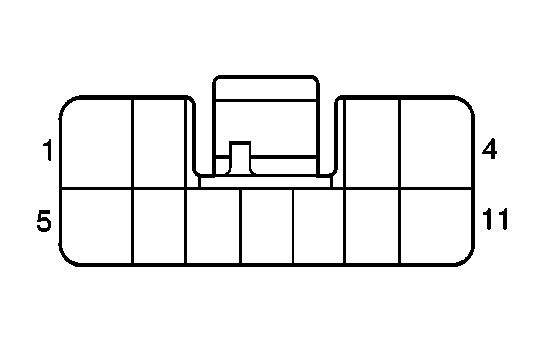

Junction Block C1 Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | - | Not Used |
| 2 | RED/YEL | Tail Relay Output |
| 3 | BLU/WHT | Ignition Positive Voltage-P/W Fuse 30A |
| 4 | YEL | Ignition Positive Voltage-TURN Fuse 10A |
| 5 | - | Not Used |
| 6 | BLK | Ground-G200, G201 |
| 7-8 | - | Not Used |
| 9 | WHT | Battery Positive Voltage-DOME Fuse 10A |
| 10 | GRN | Battery Positive Voltage-STOP Fuse 15A |
| 11 | RED/WHT | Battery Positive Voltage-D/L Fuse 20A |
