Removal Procedure

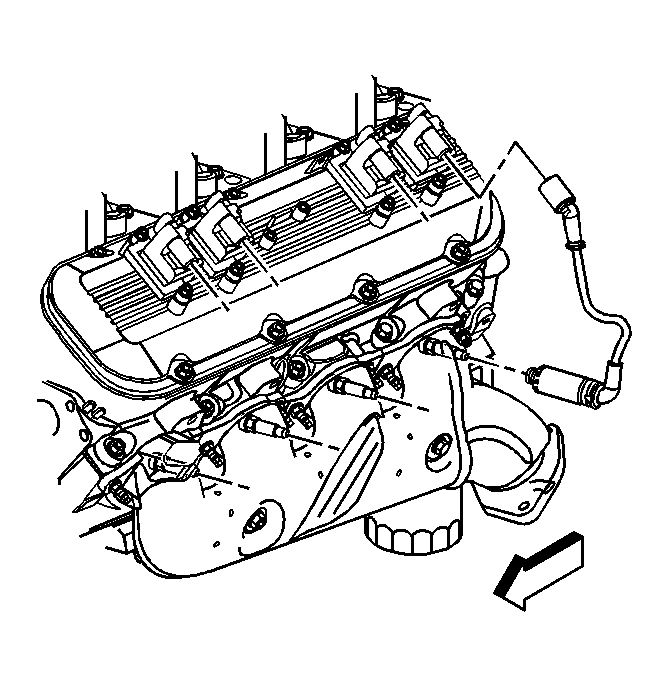

    Fig 1: View Of Spark Plug Wire
    GM843846Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the spark plug wire at the spark plug.
    • Twist the spark plug wire 1/2 turn.
    • Pull only on the boot in order to remove the wire from the spark plug.
  2. Disconnect the spark plug wire from the ignition coil.
    • Twist each spark plug boot 1/2 turn.
    • Pull only on the boot in order to remove the wire from the ignition coil.
