Engine Controls Schematics

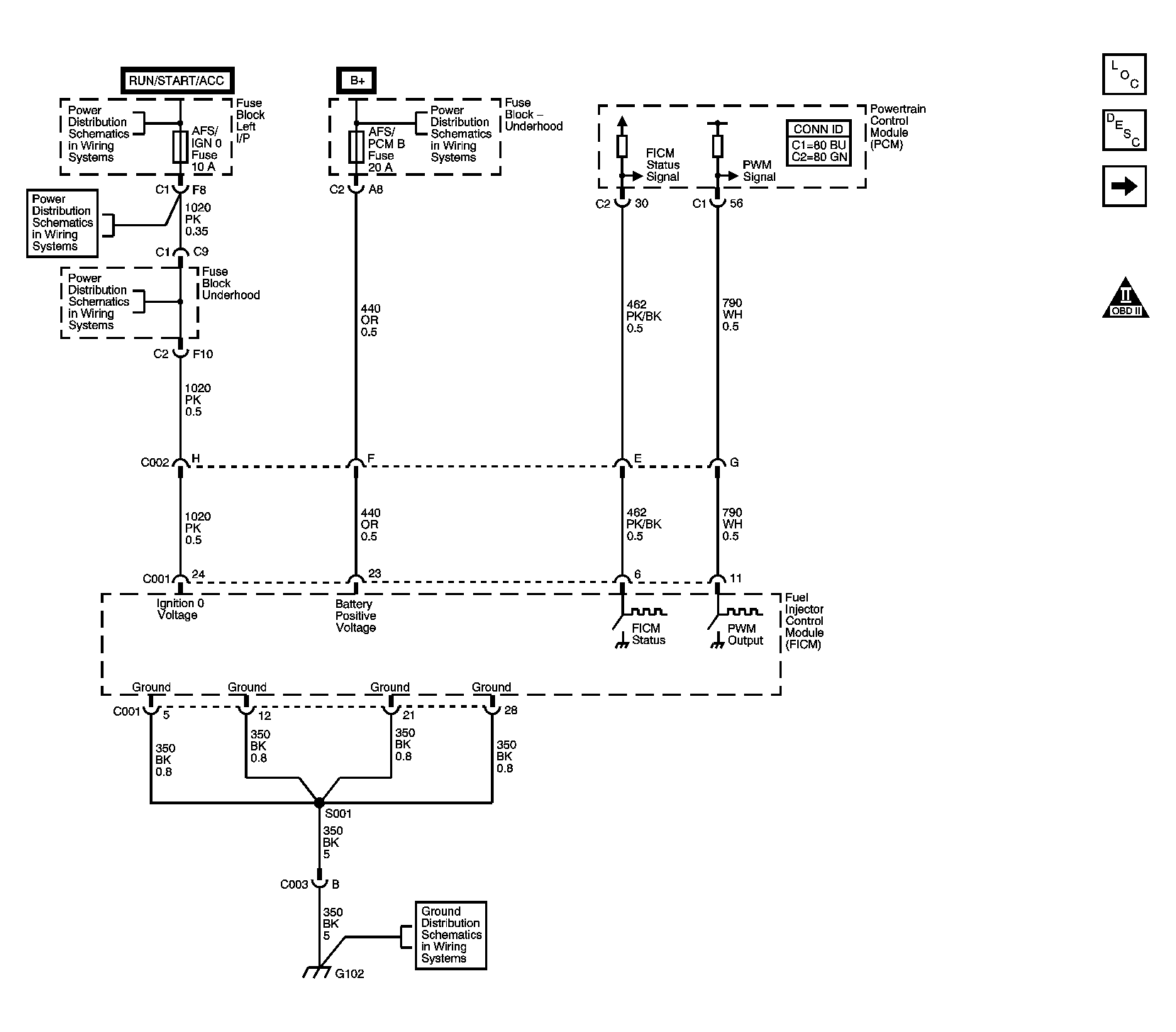

Fig 1: Power, Ground and PWM Circuits Schematic

Courtesy of GENERAL MOTORS CORP.

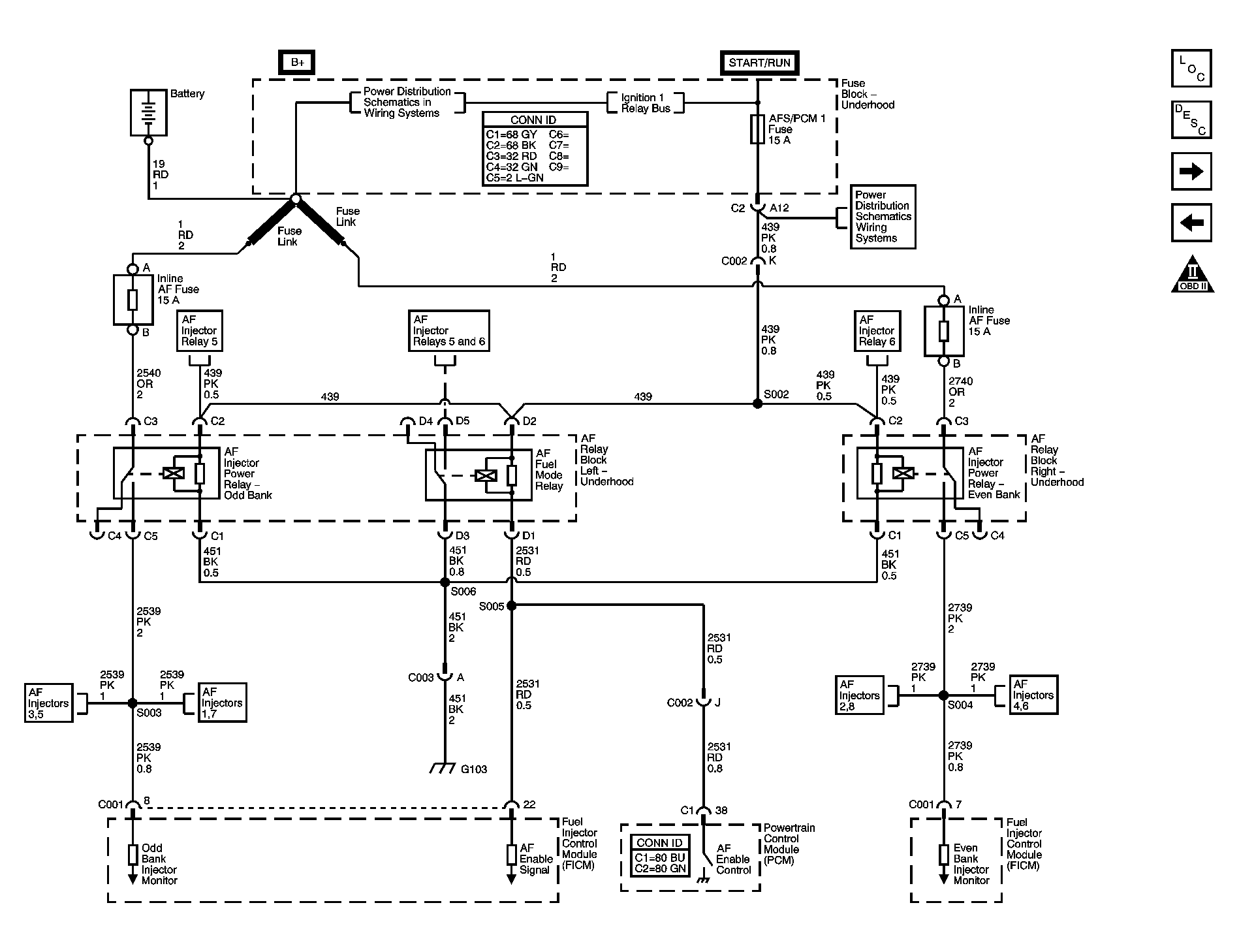

Fig 2: AF Fuel Mode and Injector Power Relays Schematic - KL6

Courtesy of GENERAL MOTORS CORP.

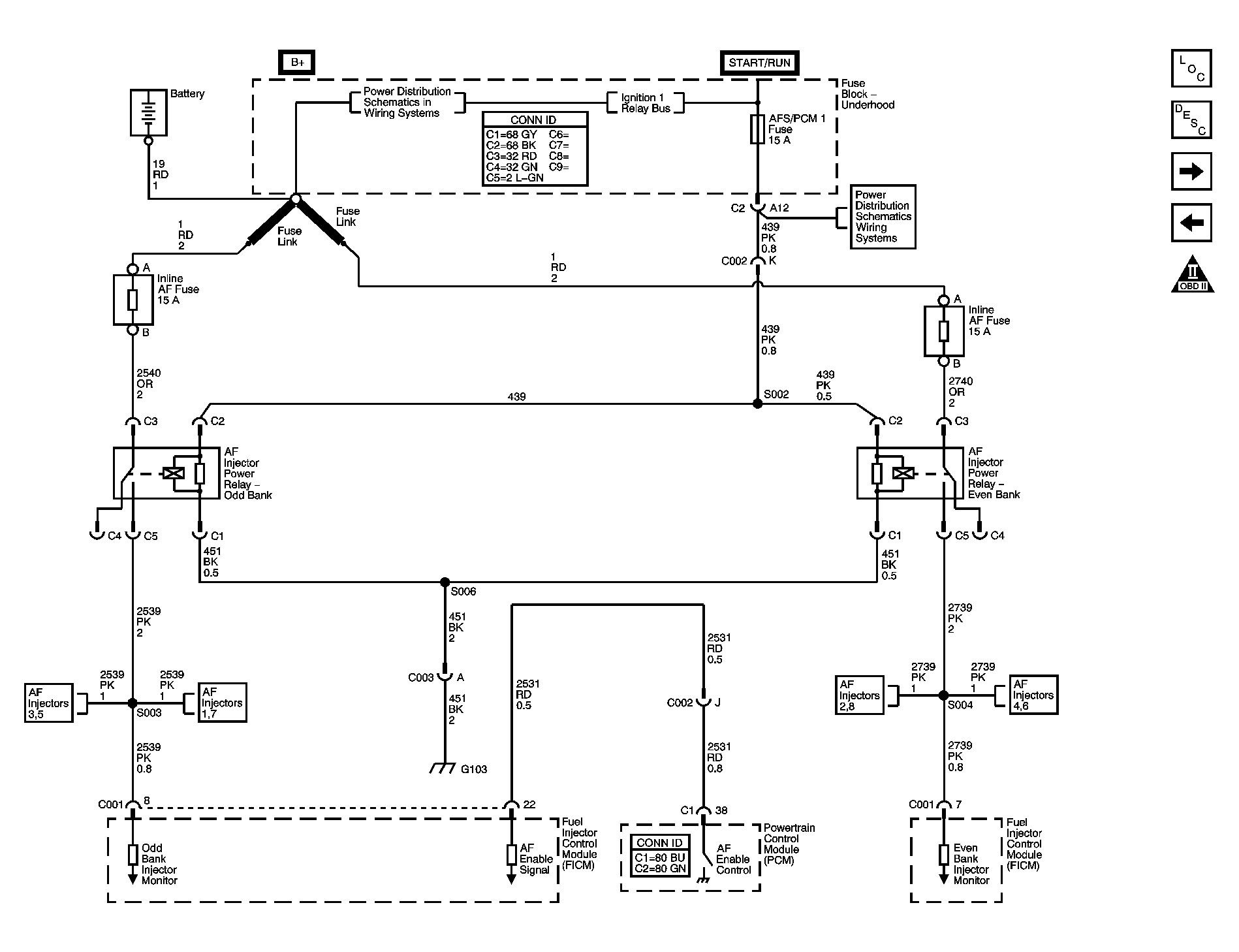

Fig 3: AF Injector Power Relays Schematic - KL8

Courtesy of GENERAL MOTORS CORP.

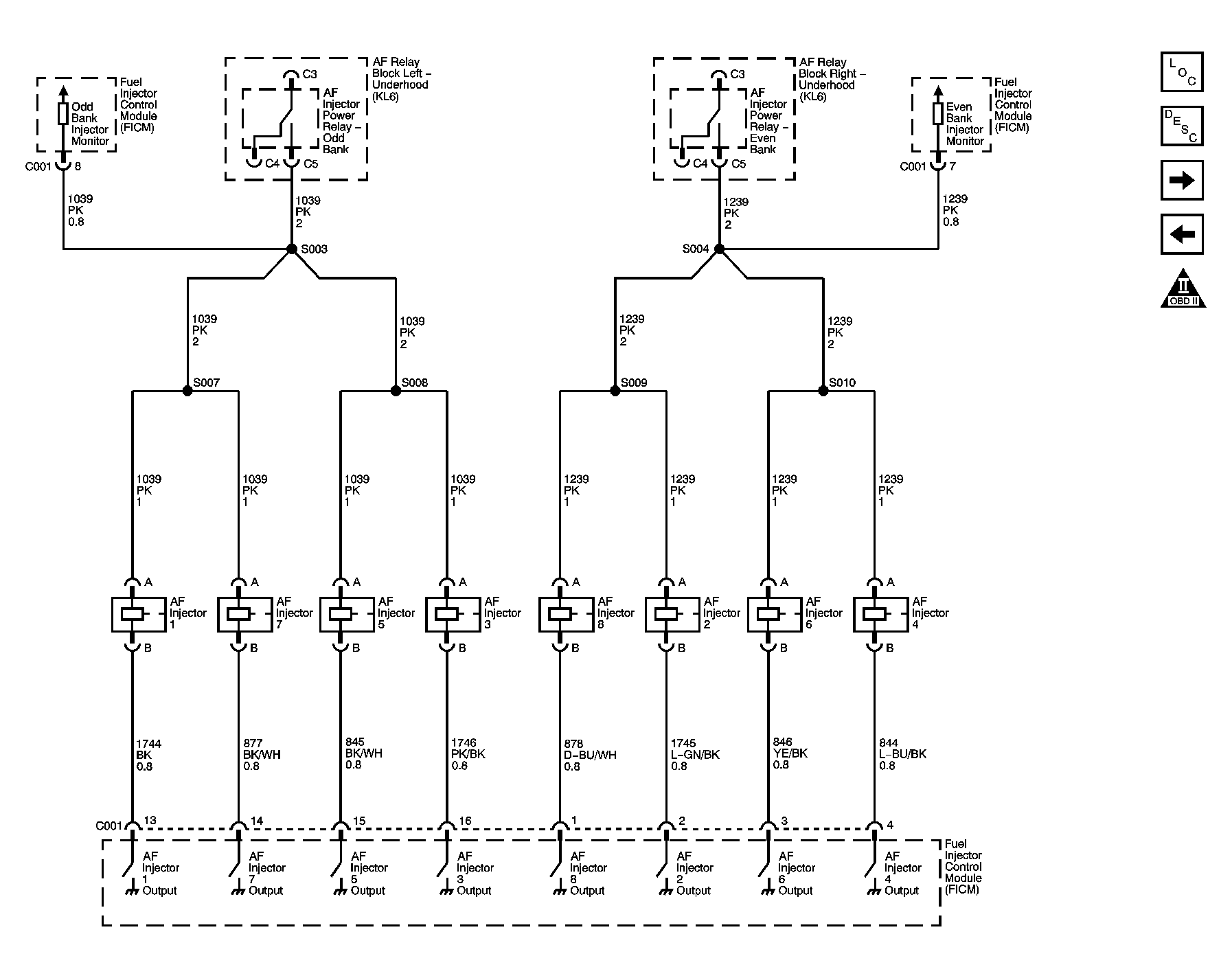

Fig 4: AF Fuel Injectors Schematic

Courtesy of GENERAL MOTORS CORP.

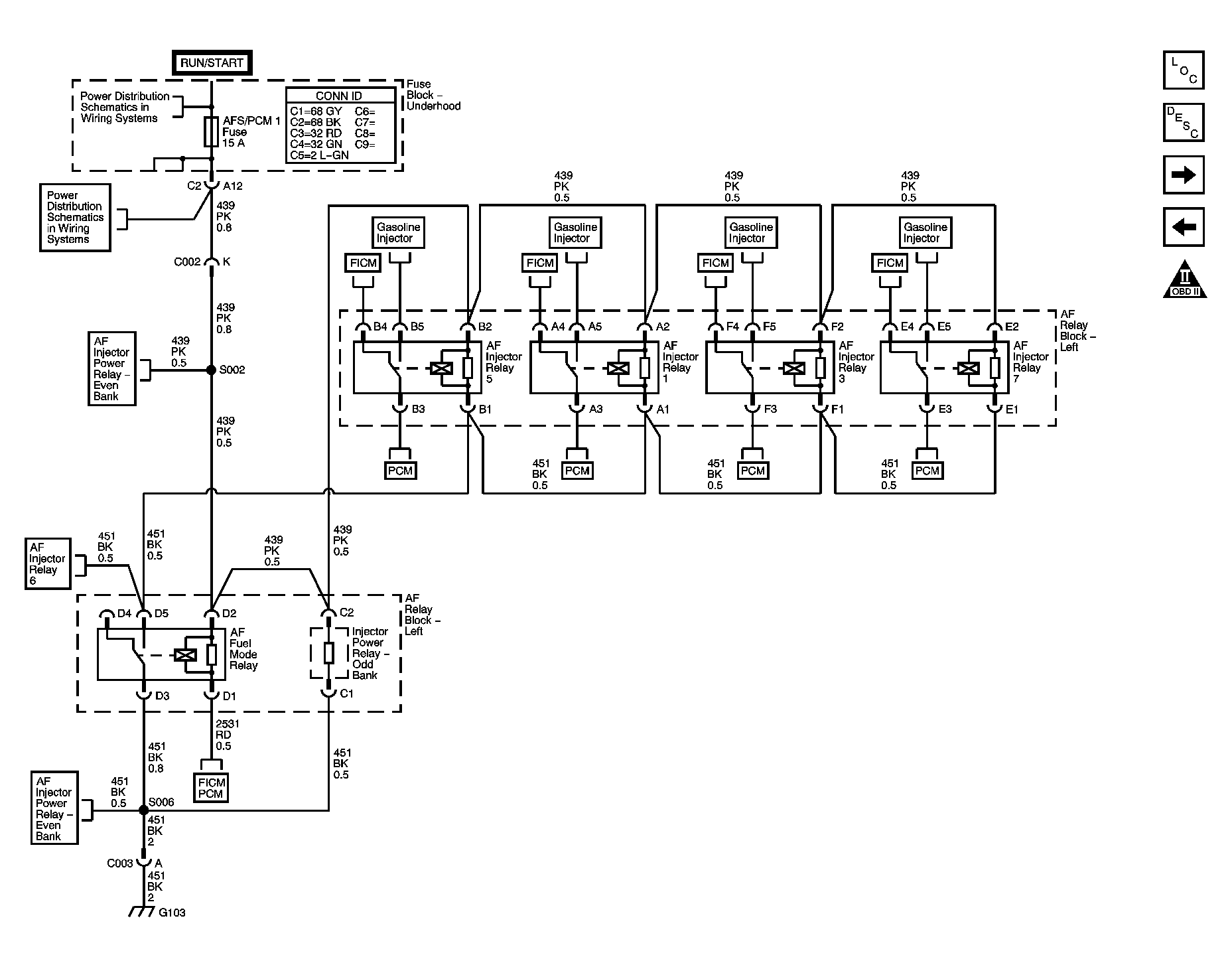

Fig 5: AF Odd Bank Injector Relays Schematic - KL6

Courtesy of GENERAL MOTORS CORP.

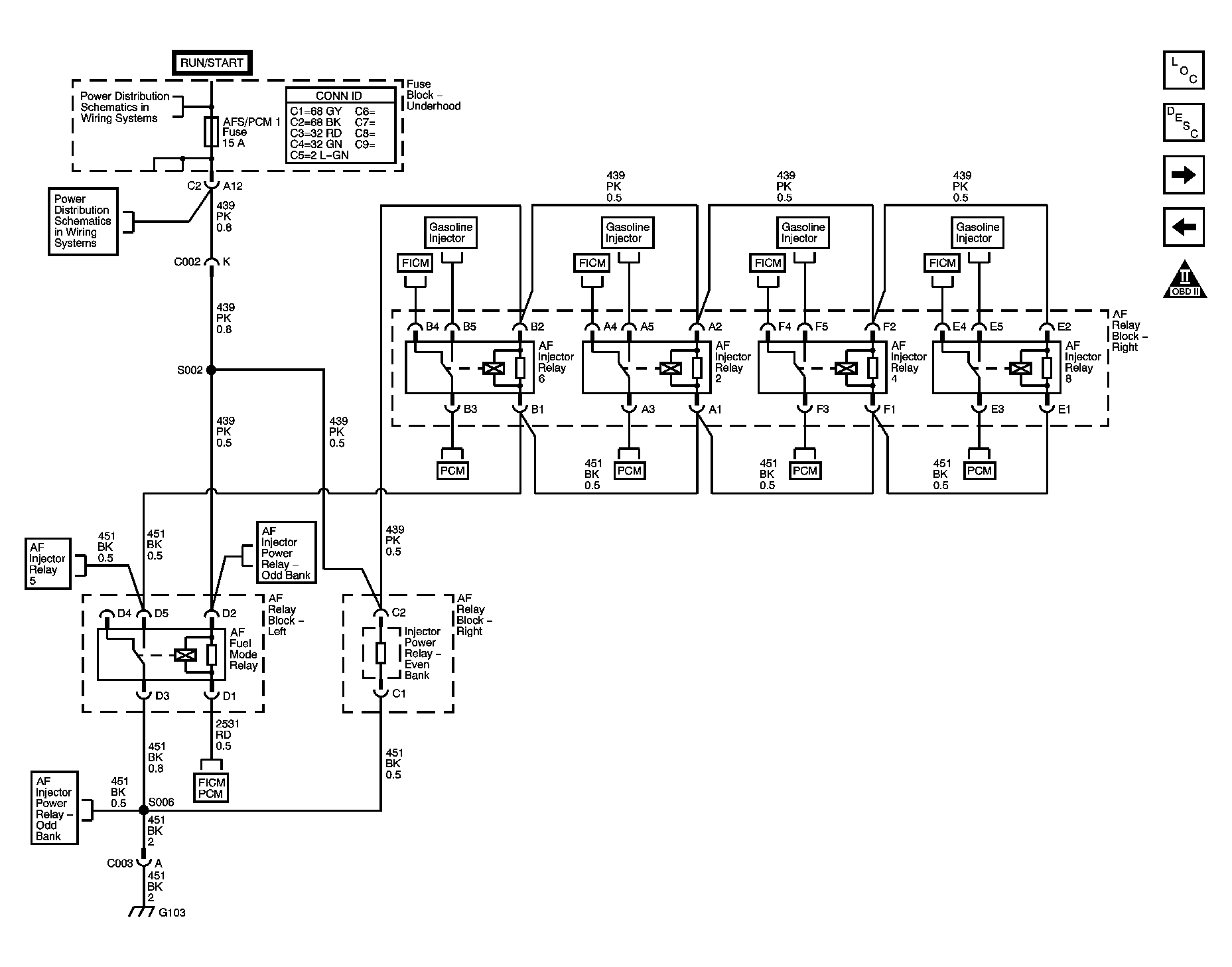

Fig 6: AF Even Bank Injector Relays Schematic - KL6

Courtesy of GENERAL MOTORS CORP.

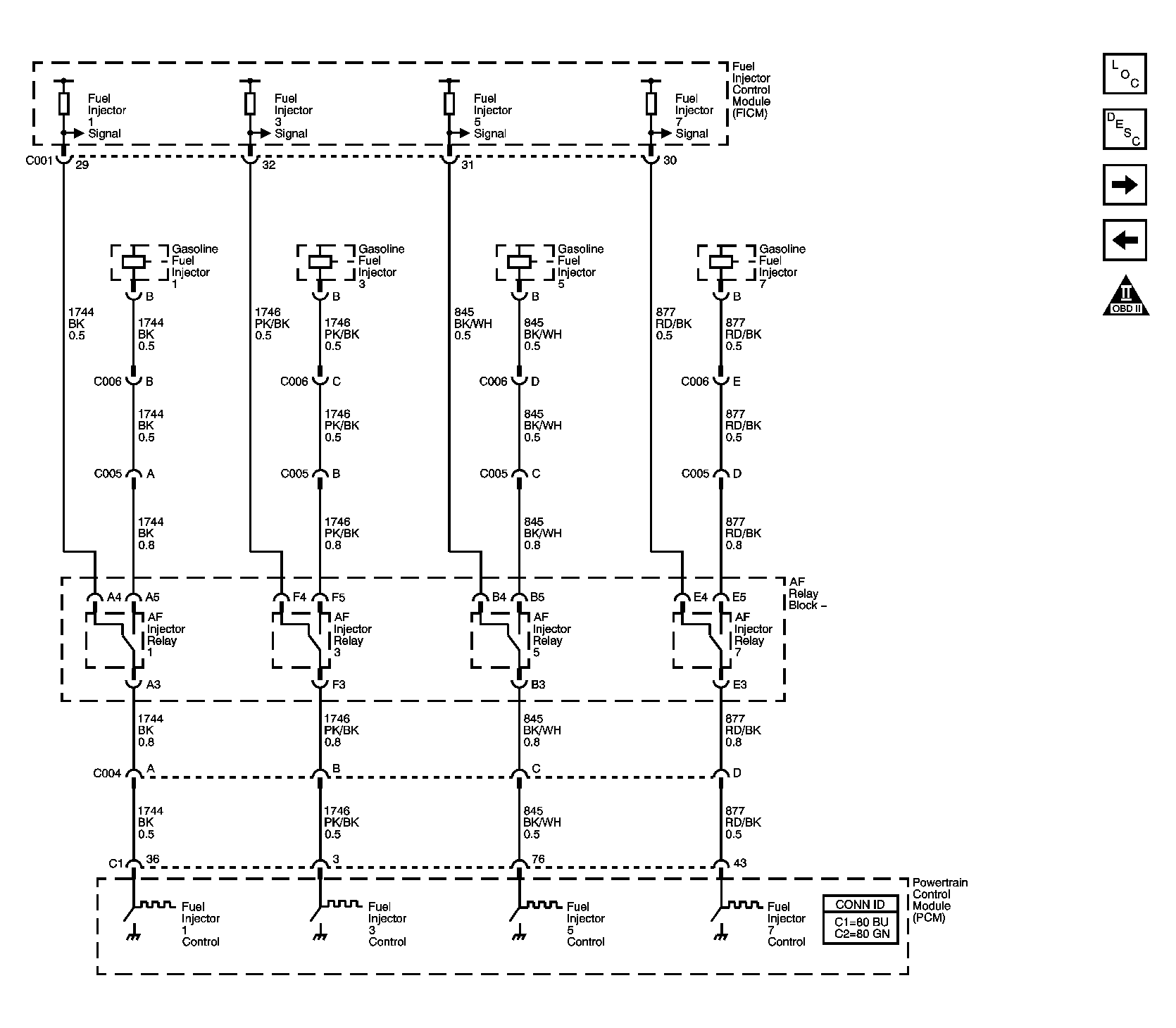

Fig 7: AF Odd Bank Injector Signal Schematic - KL6

Courtesy of GENERAL MOTORS CORP.

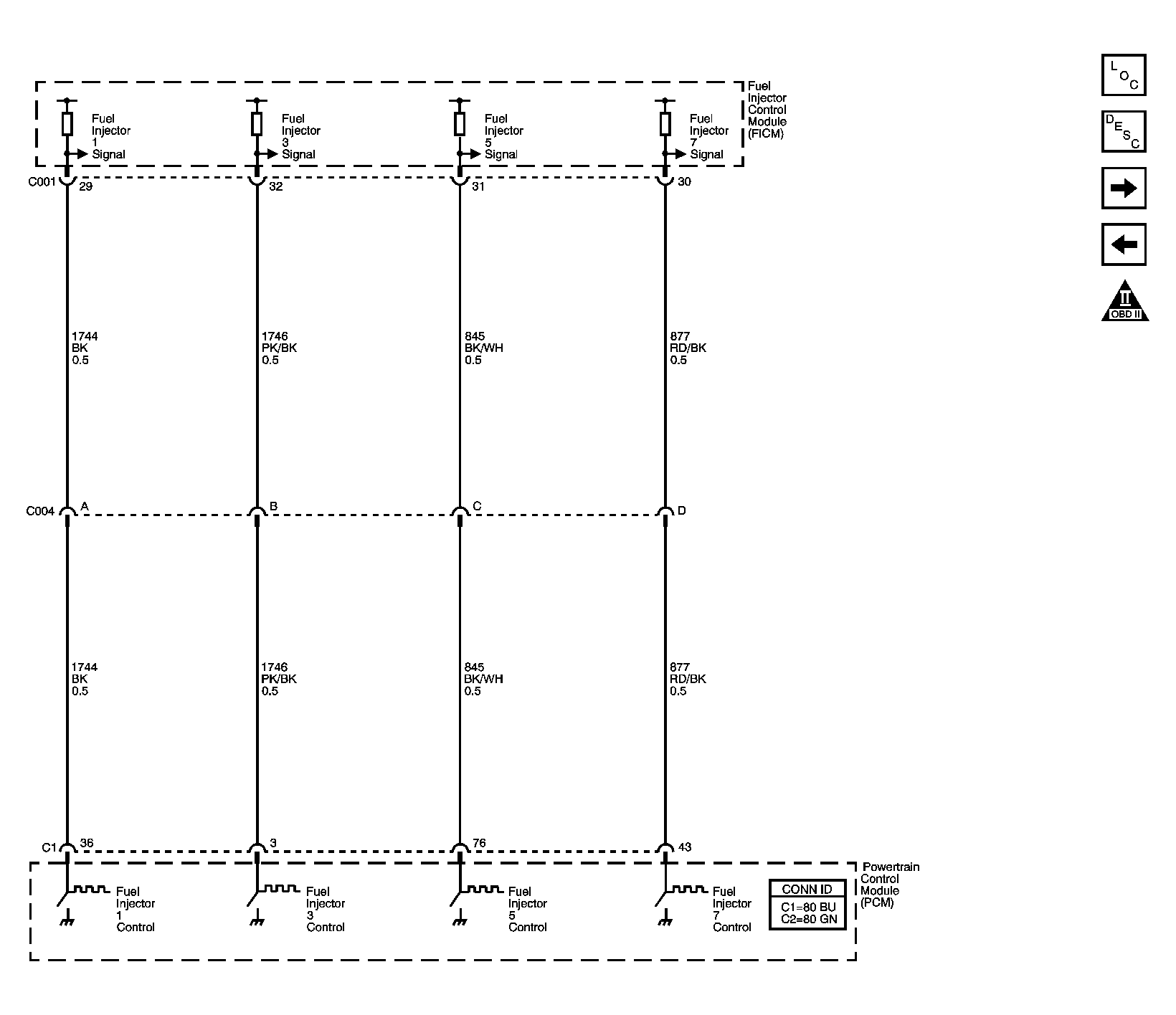

Fig 8: AF Odd Bank Injector Signal Schematic - KL8

Courtesy of GENERAL MOTORS CORP.

Fig 9: AF Even Bank Injector Signal Schematic - KL6

Courtesy of GENERAL MOTORS CORP.

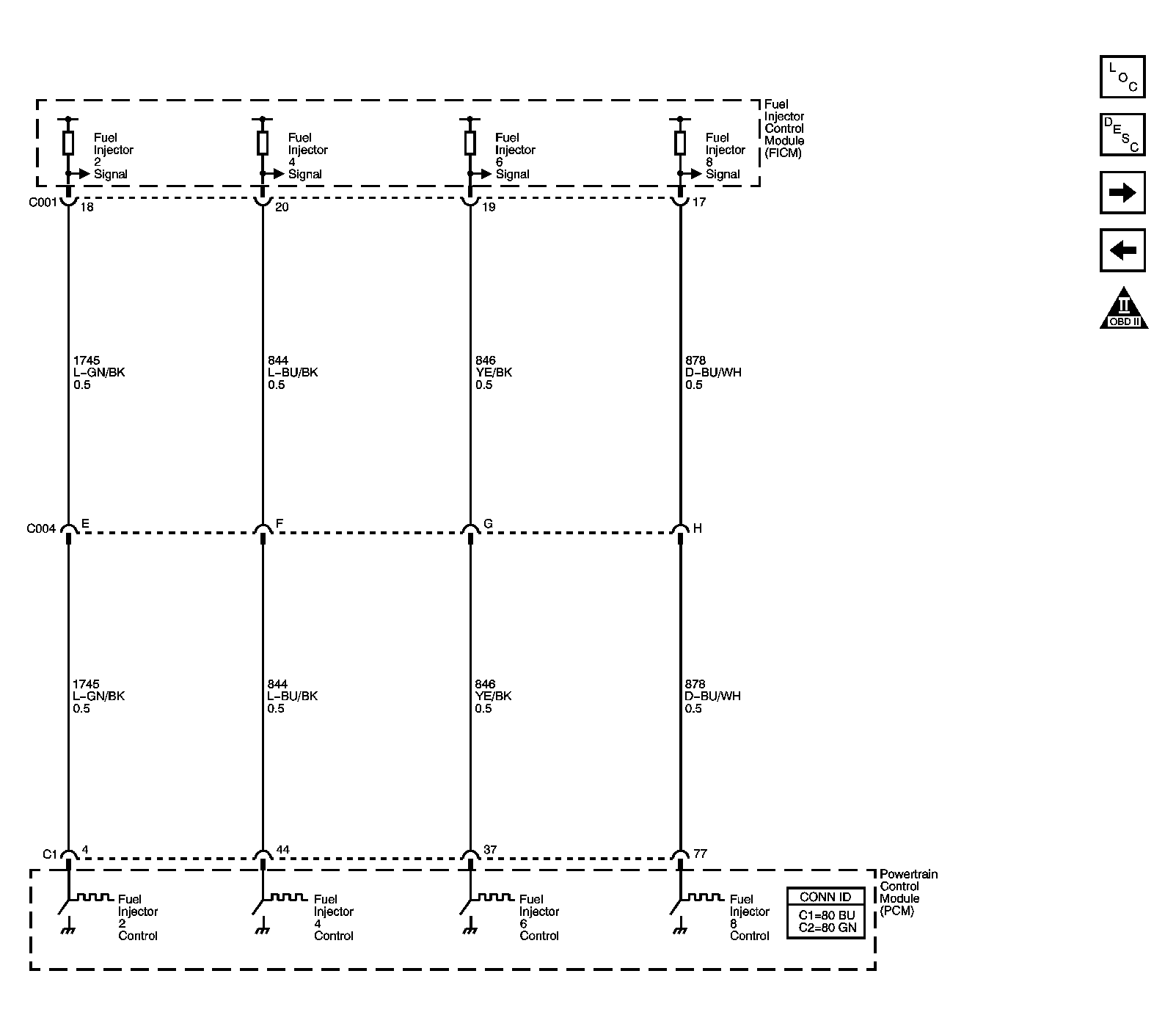

Fig 10: AF Even Bank Injector Signal Schematic - KL8

Courtesy of GENERAL MOTORS CORP.

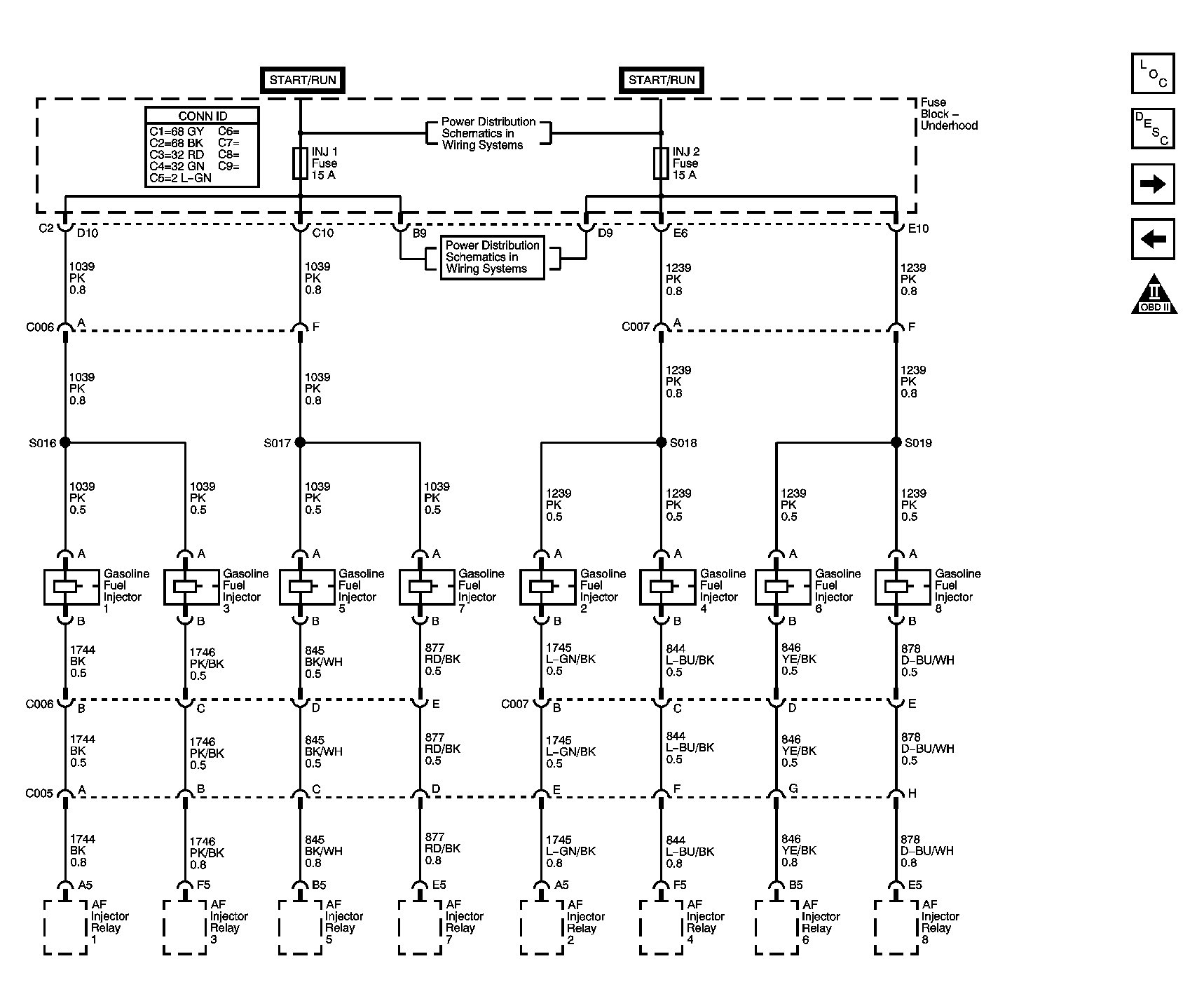

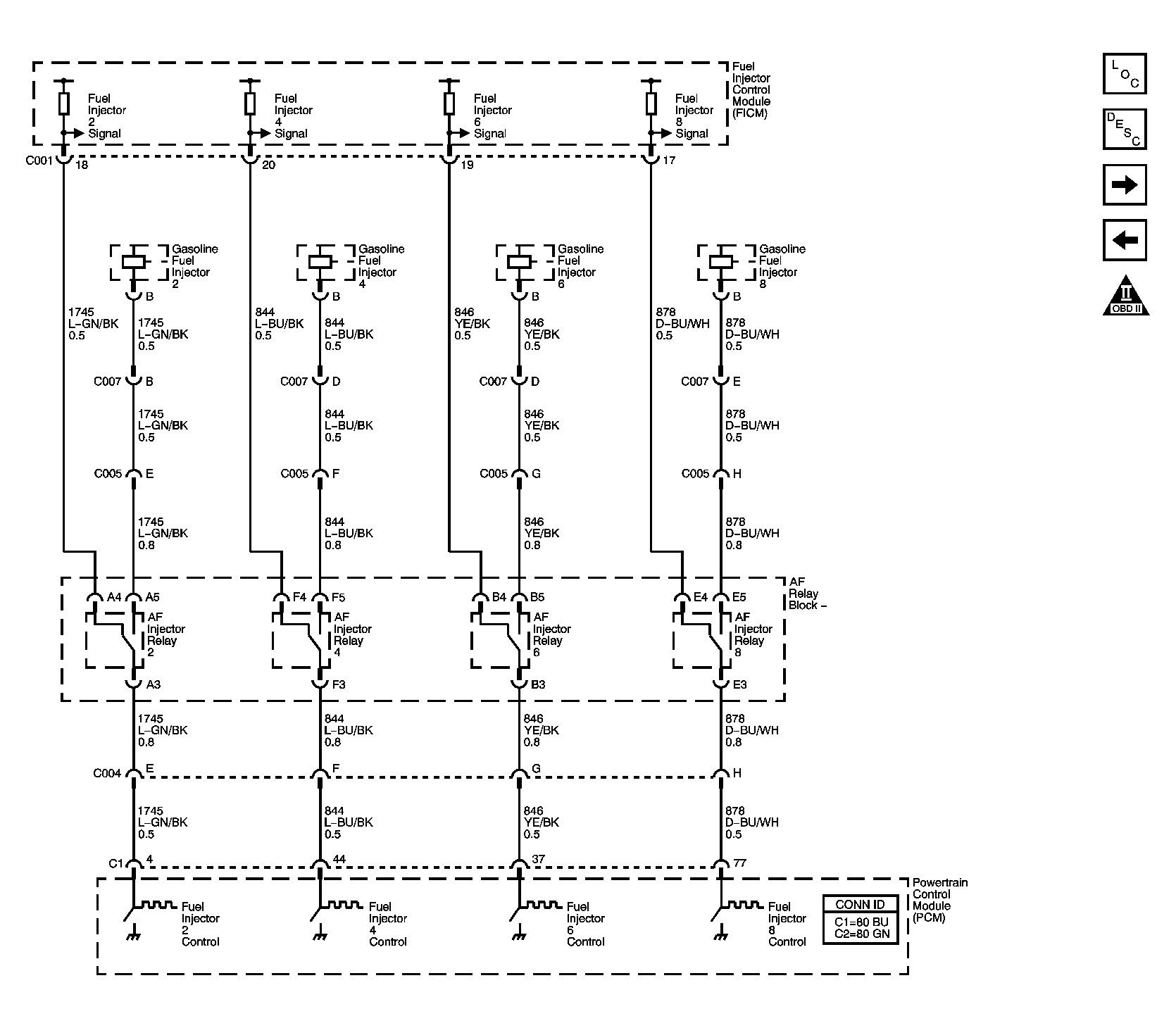

Fig 11: Gasoline Fuel Injectors Schematic - KL6

Courtesy of GENERAL MOTORS CORP.

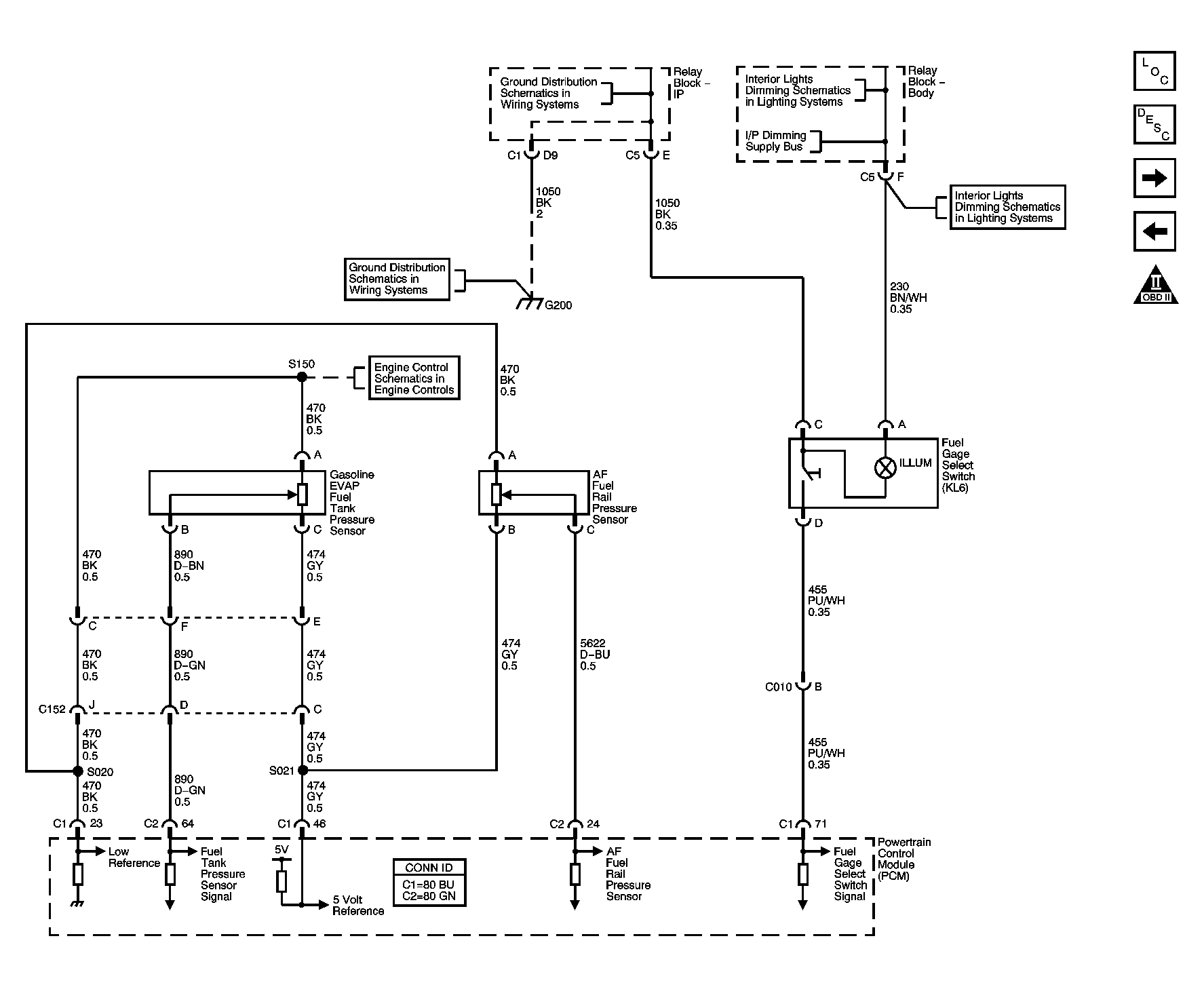

Fig 12: Fuel Rail Pressure Sensor and Fuel Gage Select Switch Schematic

Courtesy of GENERAL MOTORS CORP.

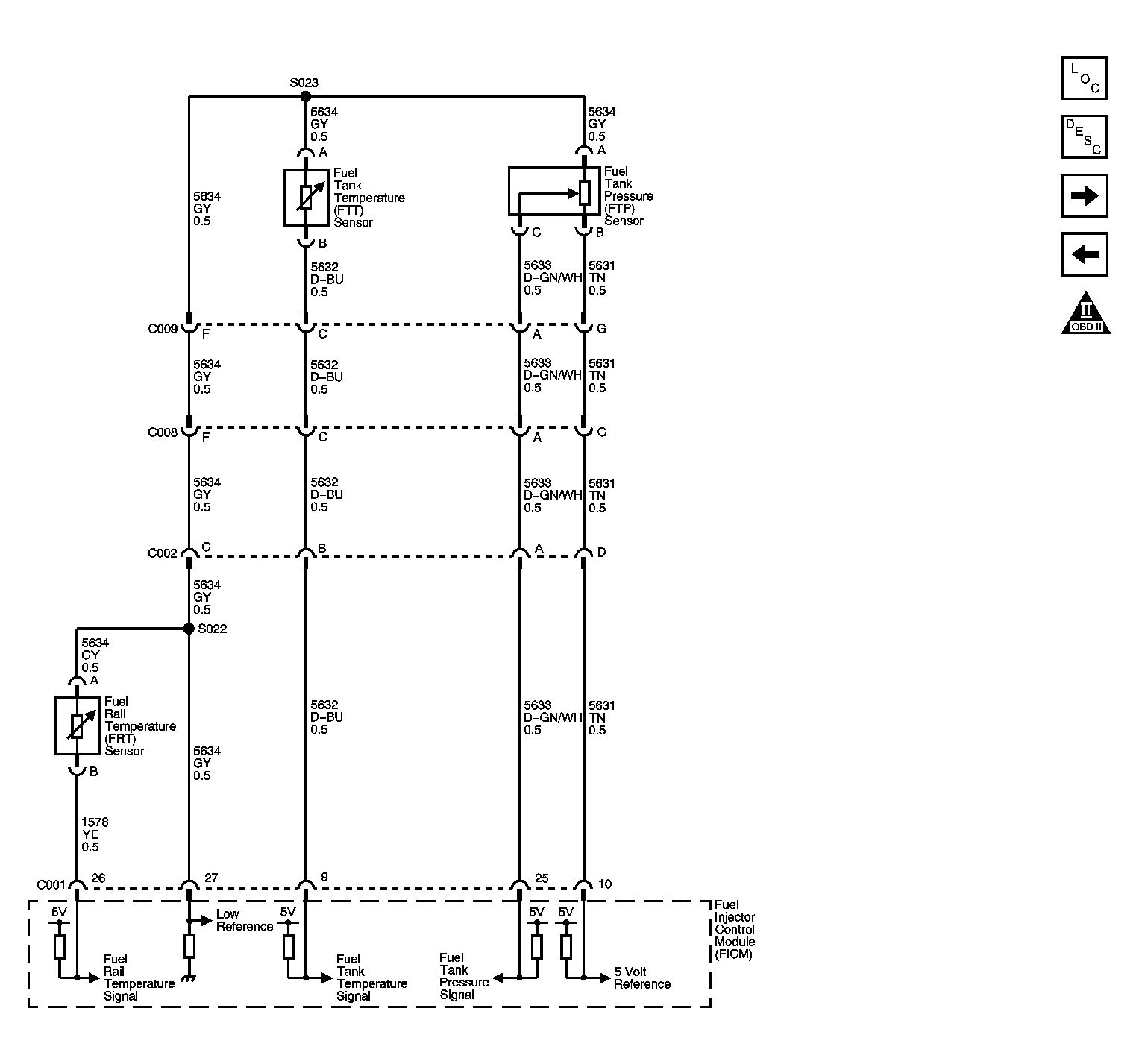

Fig 13: Fuel Rail Temperature Sensor and Sensors Schematic - Fuel Tank

Courtesy of GENERAL MOTORS CORP.

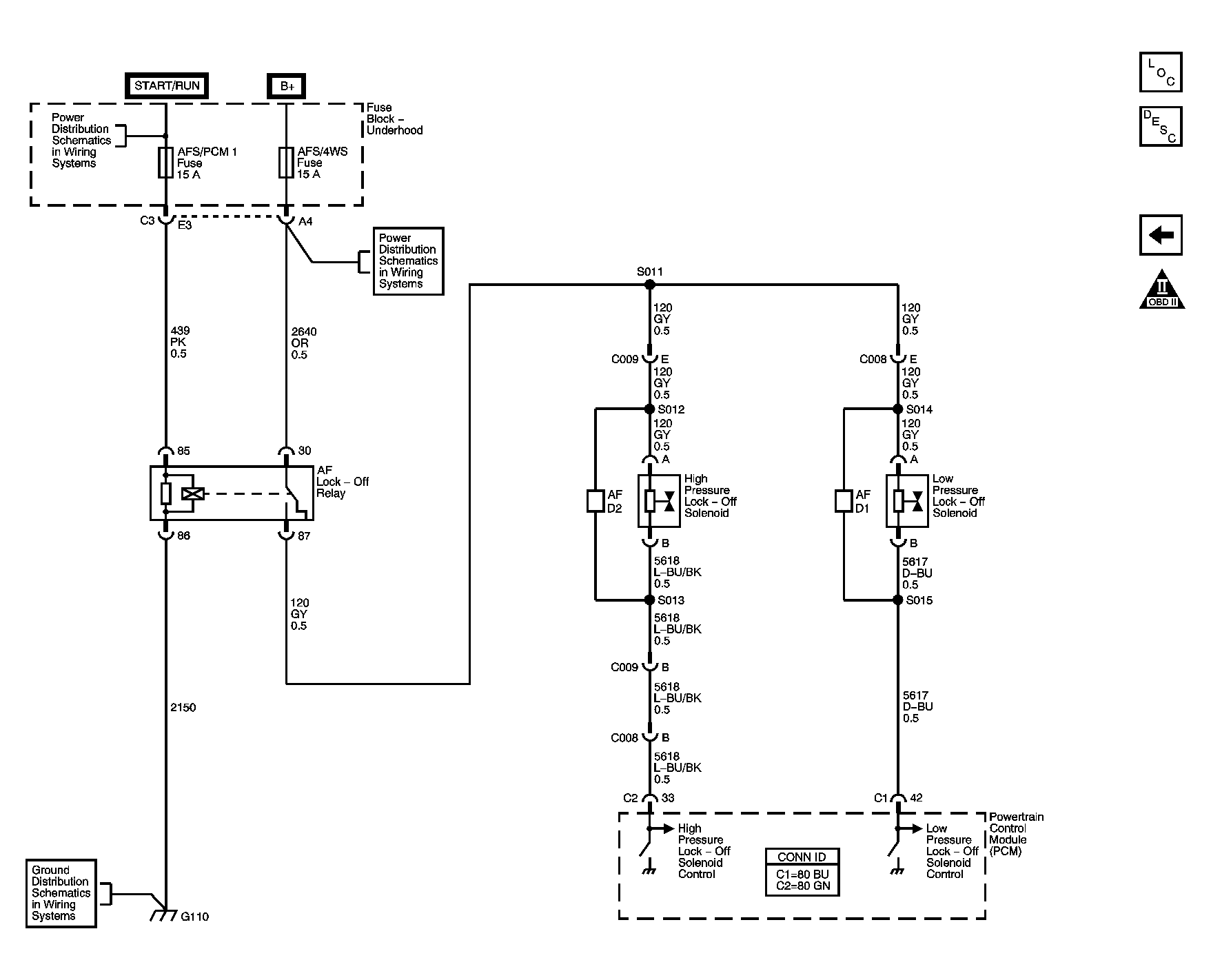

Fig 14: High and Low Pressure Lock-off Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.
