Power Distribution Schematics

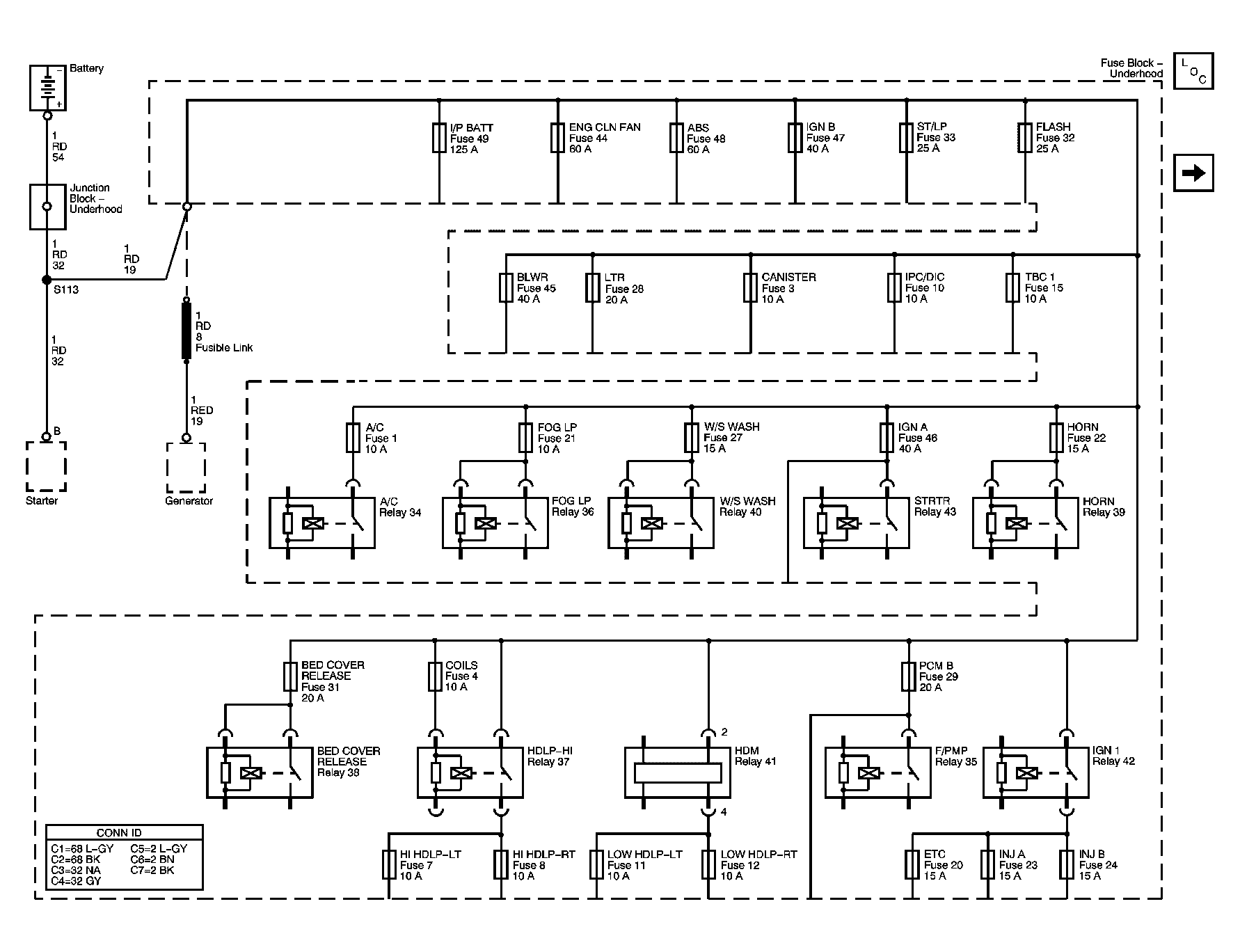

Fig 1: B+ BUS - Underhood Fuse Block Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: B+ BUS - Rear Fuse Block Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: ACCY/RUN/START, RUN and START Bus Bars Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: ACCY/RUN and RUN/START Bus Bars Schematic

Courtesy of GENERAL MOTORS CORP.

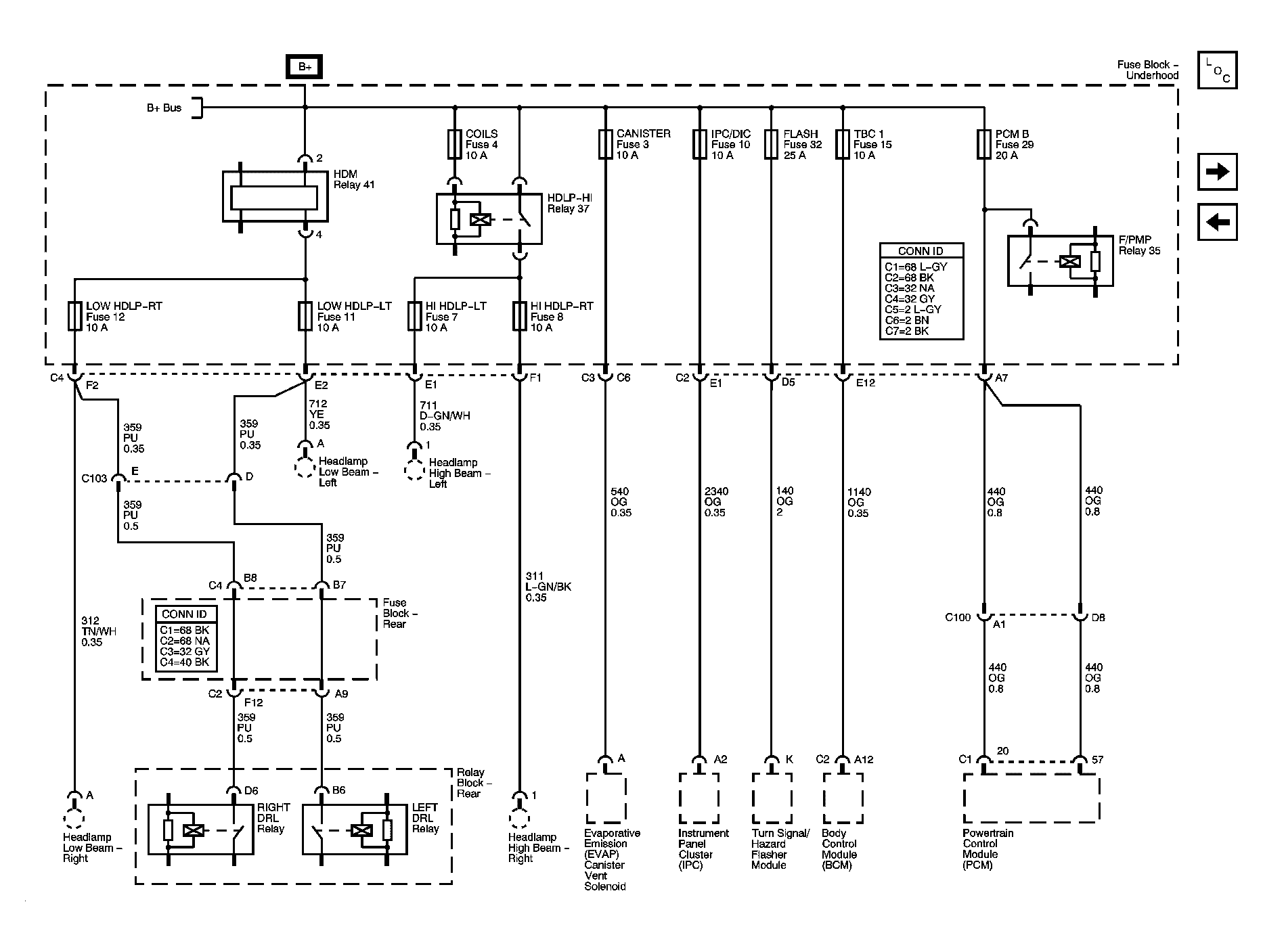

Fig 5: COILS, CANISTER, IPC/DIC, FLASH, TBC 1 and PCM B Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

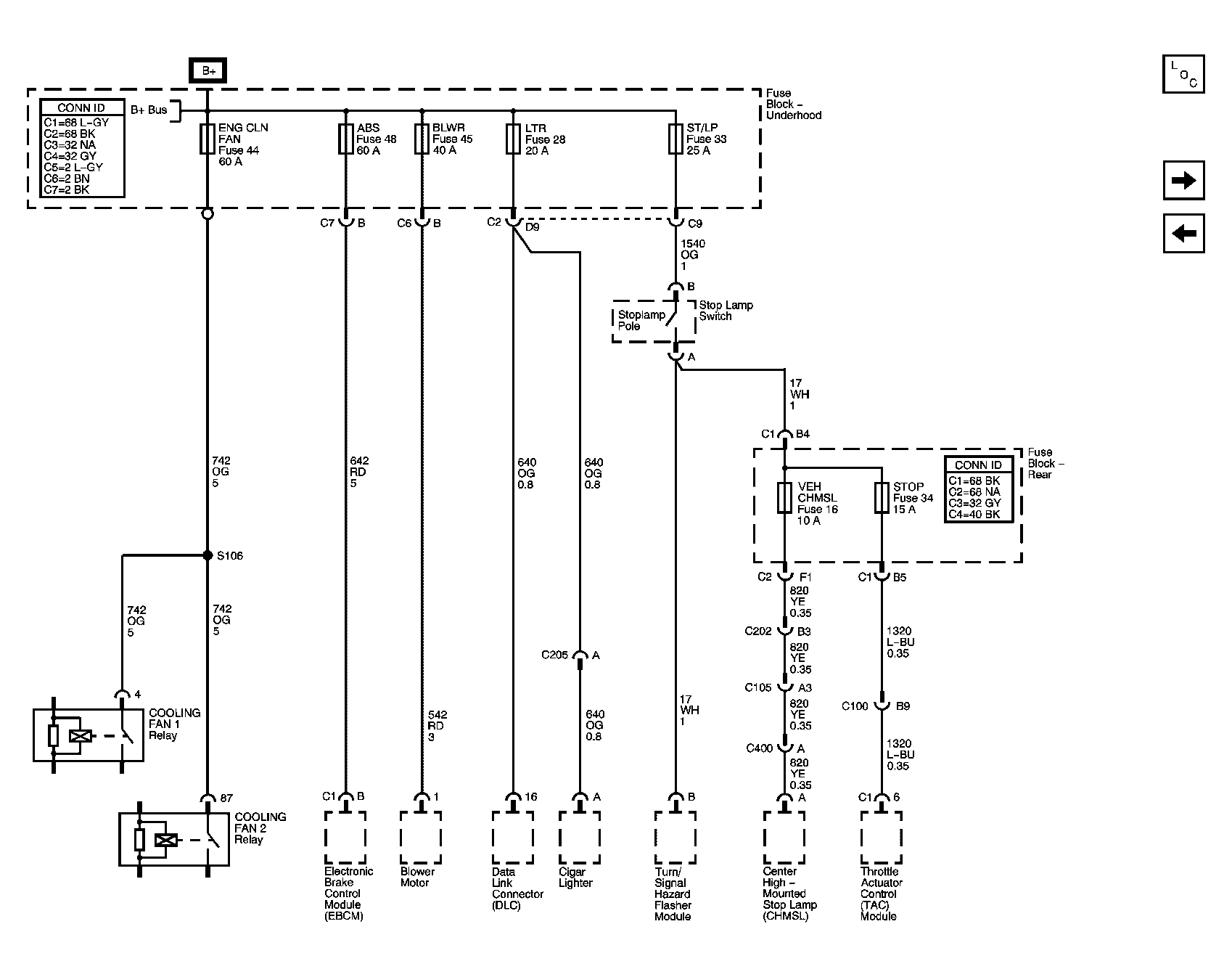

Fig 6: ENG CLN FAN, ABS, BLOWER, CIGAR and ST/LP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

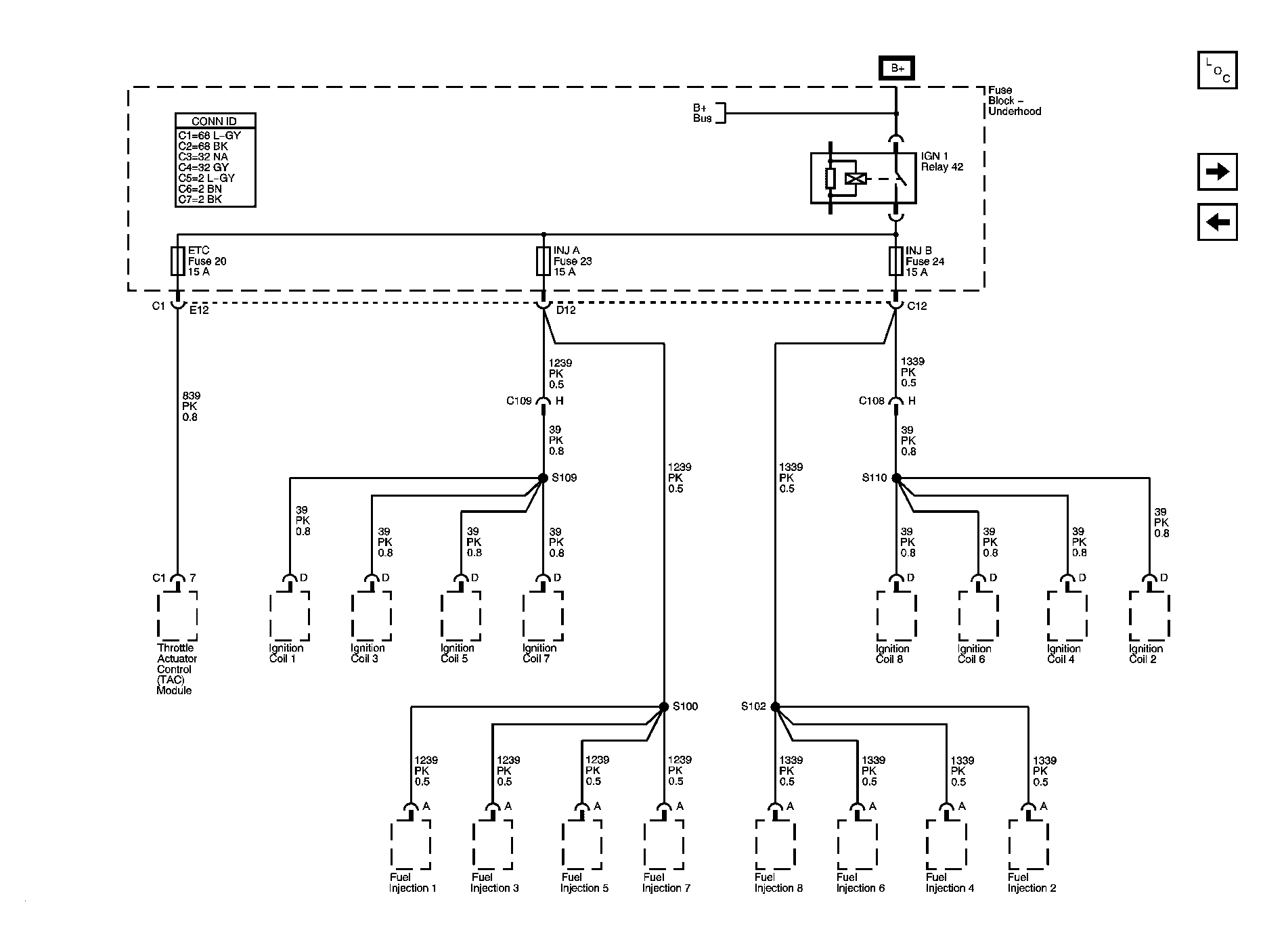

Fig 7: TAC, INJ A AND INJ B Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

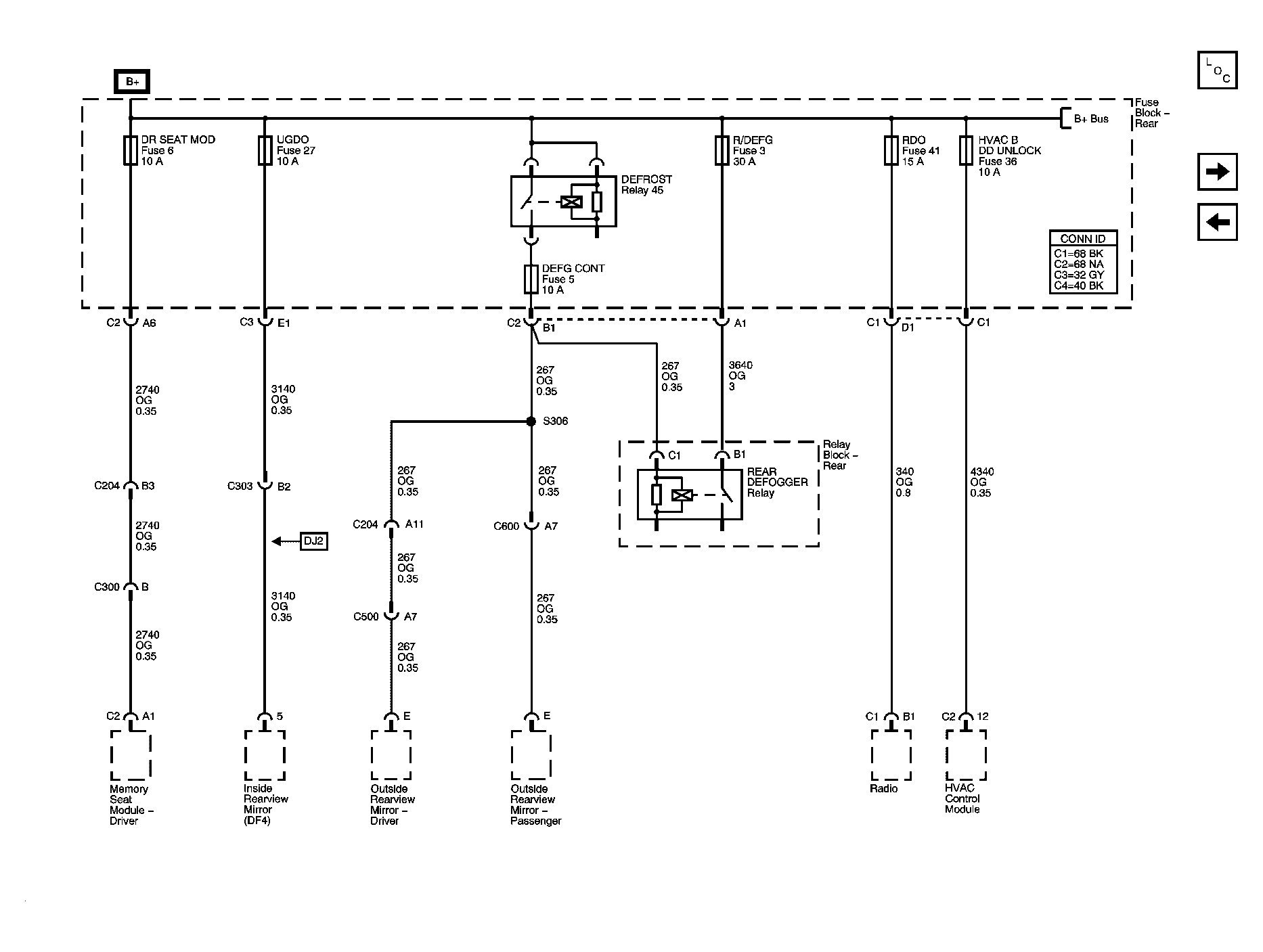

Fig 8: DR SEAT MOD, UGDO, R/DEFG, DEFG CONT, RDO and HVAC B DD UNLOCK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

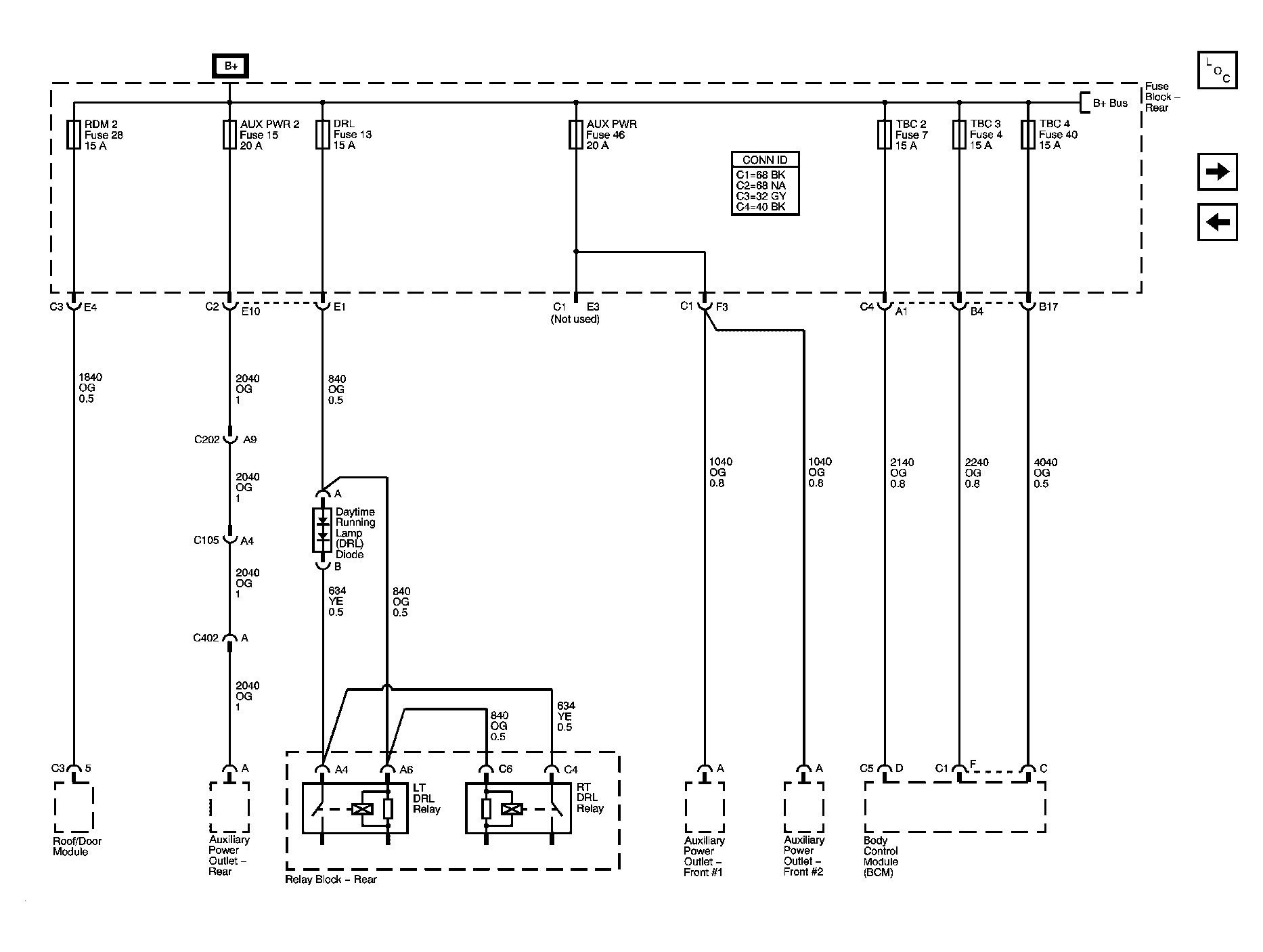

Fig 9: RDM 2, AUX PWR 2, DRL, AUX PWR, TBC 2, TBC 3 and TBC 4 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

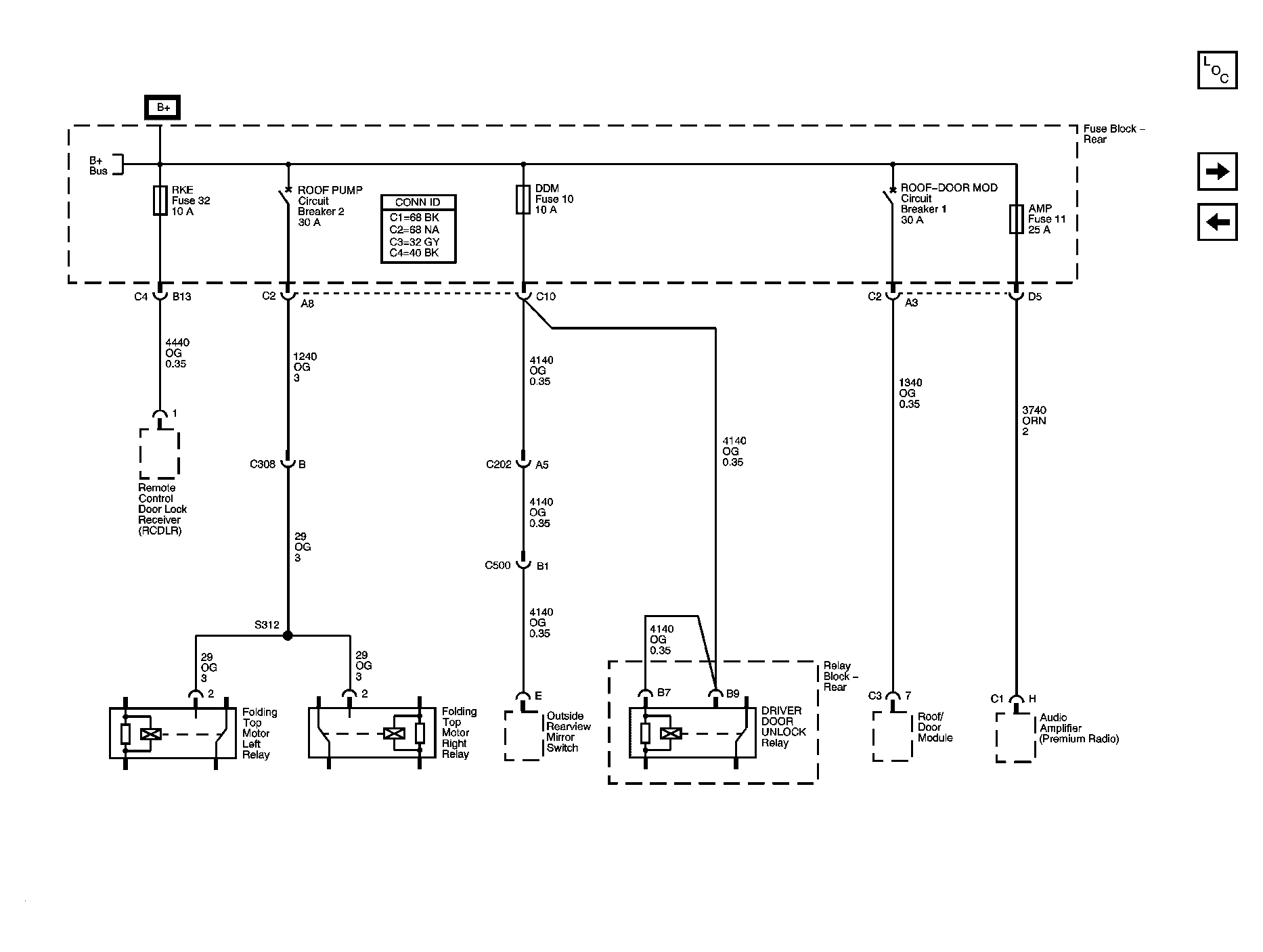

Fig 10: RKE, DDM and AMP Fuses, ROOF PUMP and ROOF-DOOR MOD Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

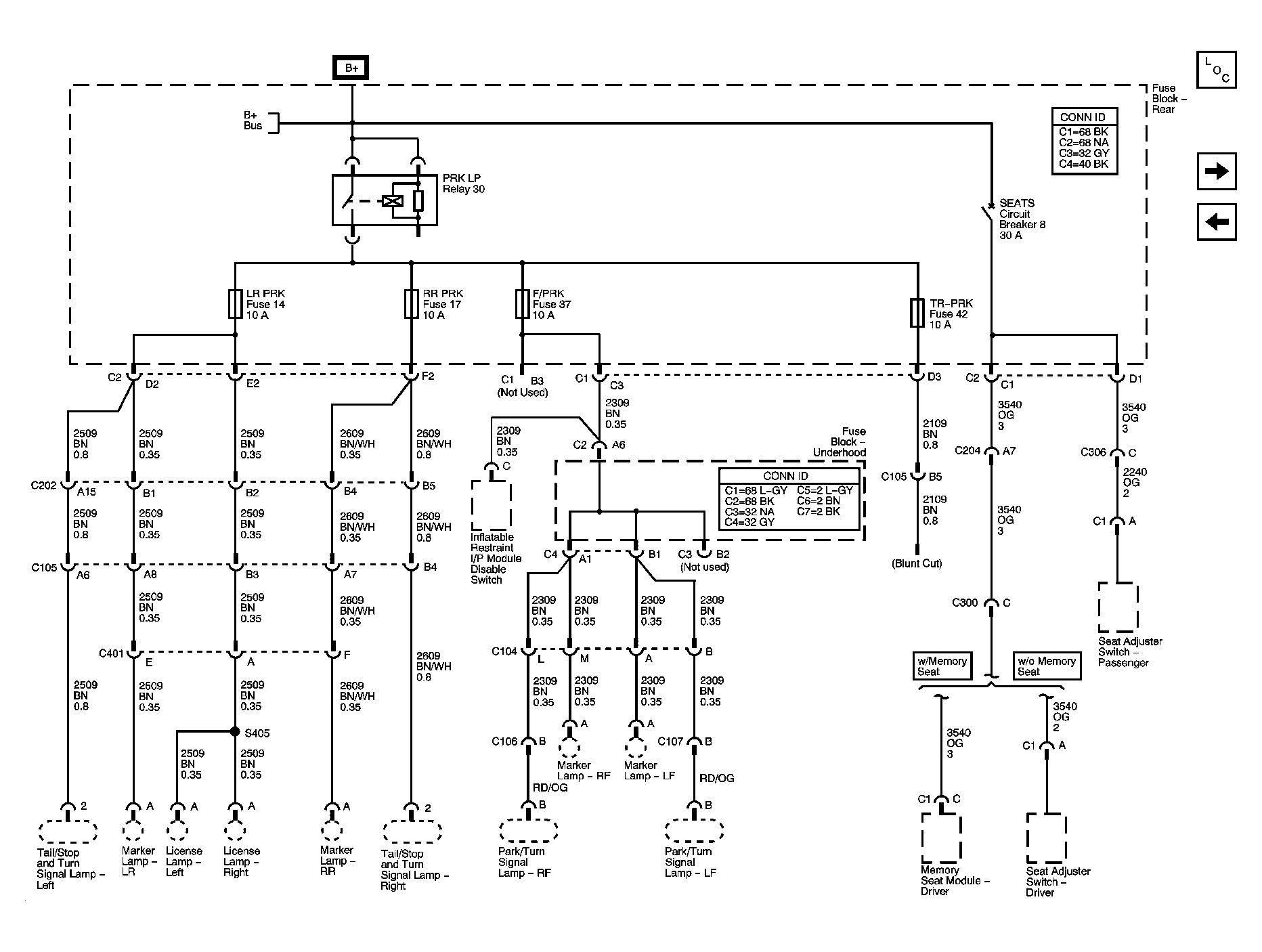

Fig 11: LR PRK, RR PRK, F/PRK and TR PRK Fuses, SEATS Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

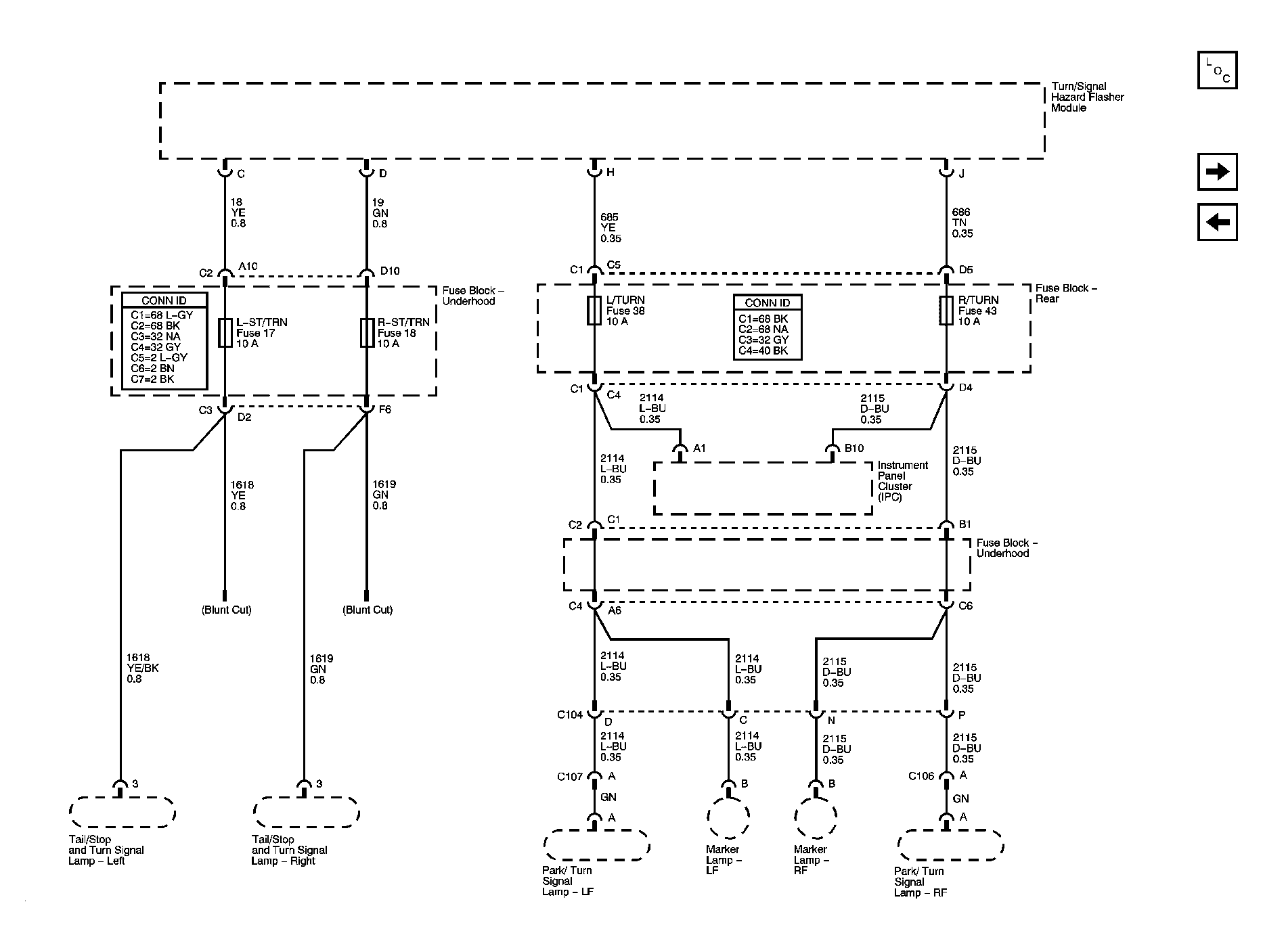

Fig 12: L-ST/TRN, R-ST/TRN, L/TURN and R/TURN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

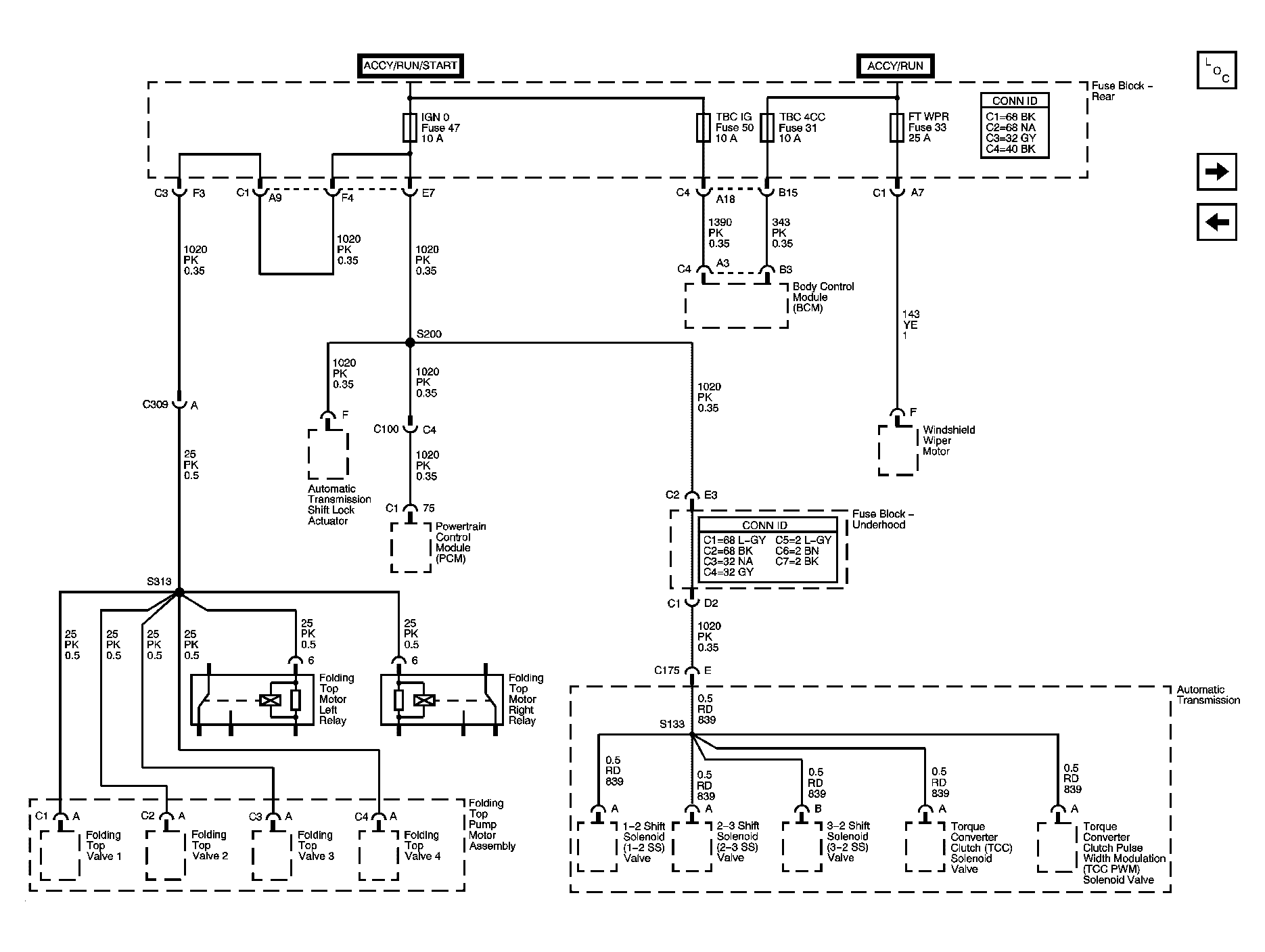

Fig 13: IGN 0, TBC IG, TBC 4CC and FT WPR Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

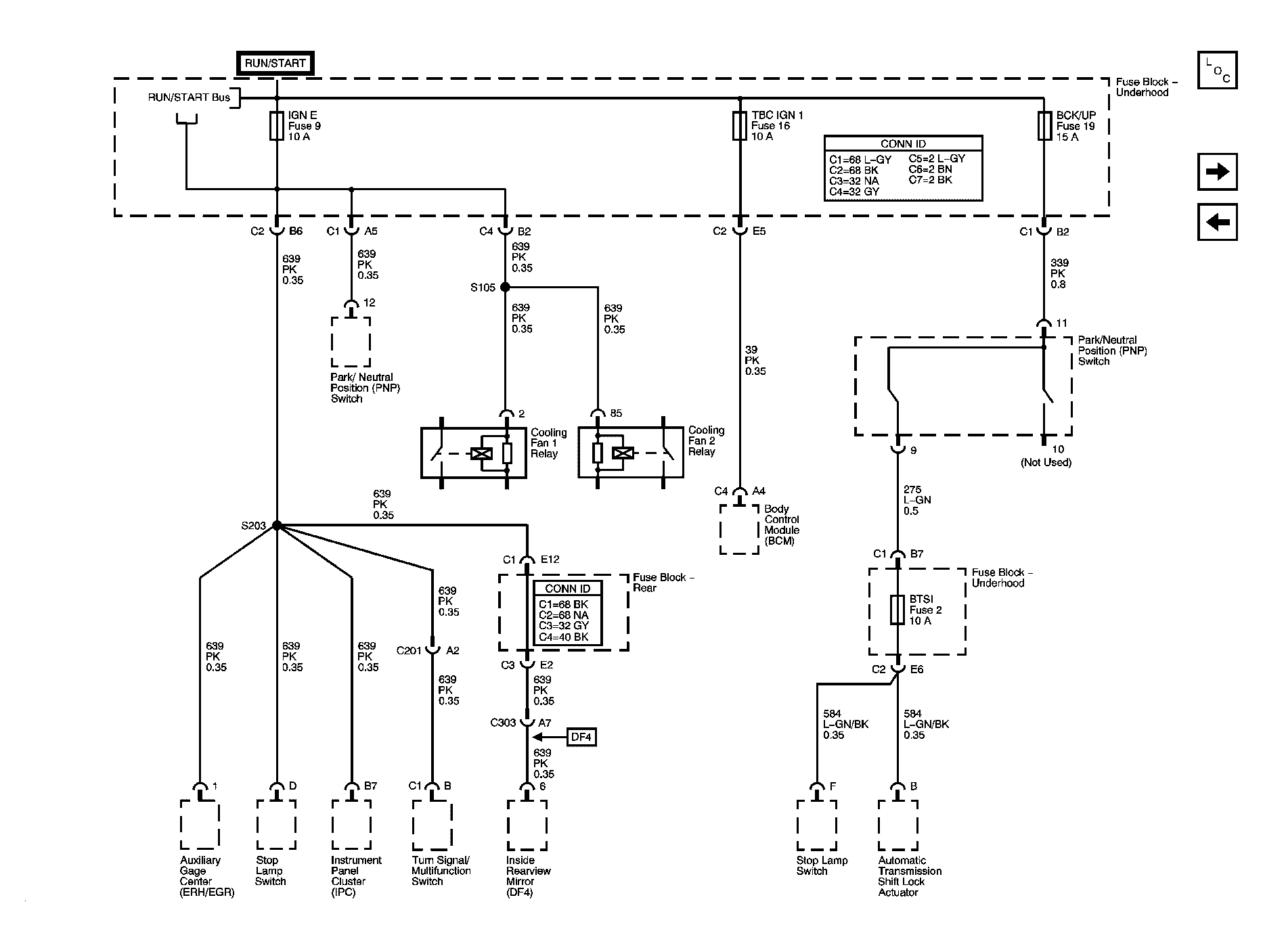

Fig 14: IGN E, TBC IGN 1, BACK UP and BTSI Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

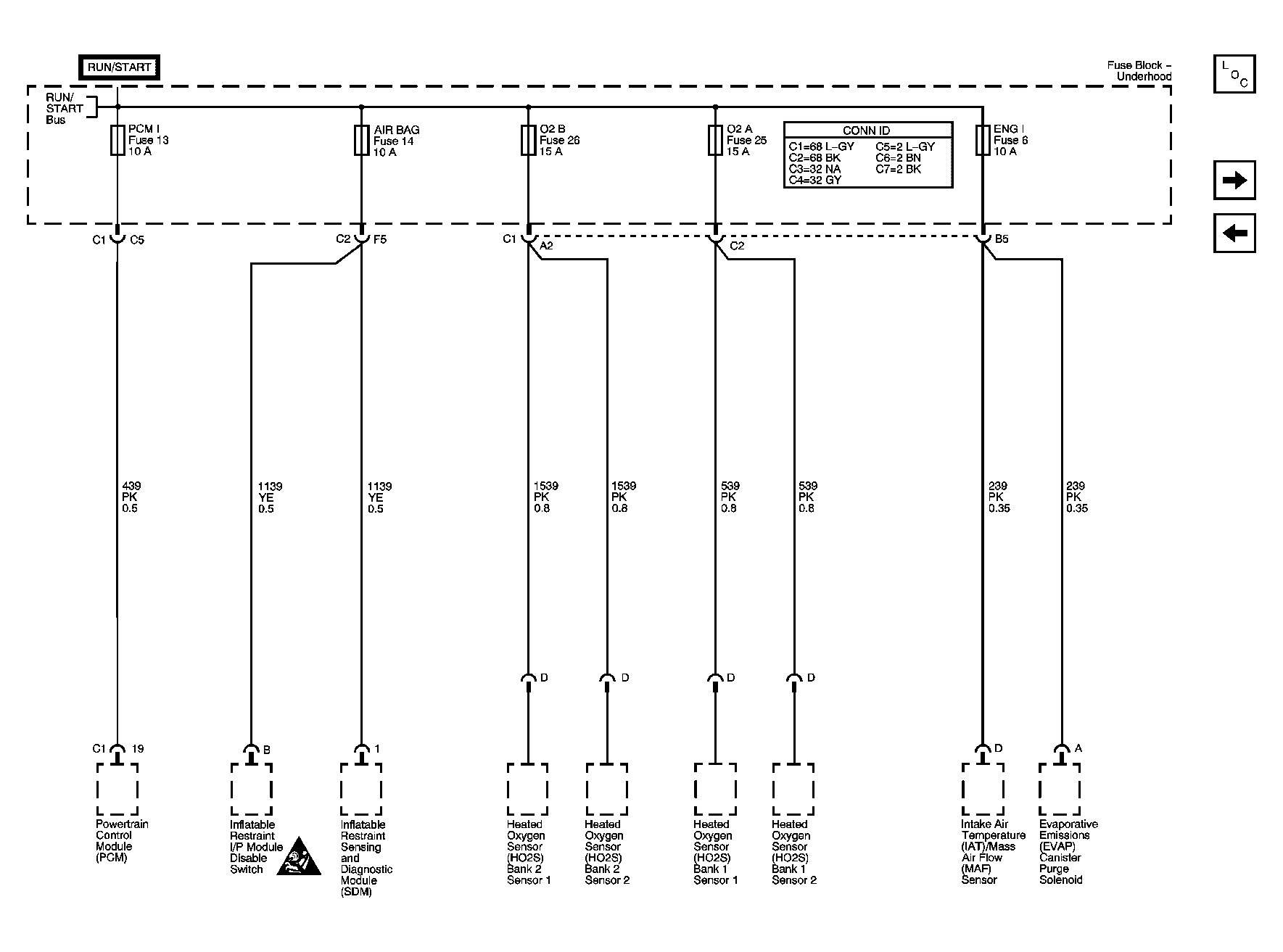

Fig 15: PCM I, SIR, O2 A, O2 B and ENG I Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 16: HVAC I and BRK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
