Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back frame.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts (1) and retain the seat back frame to the hinge assembly.

    Tighten:  Tighten the bolts to 53 N.m (39 lb ft).

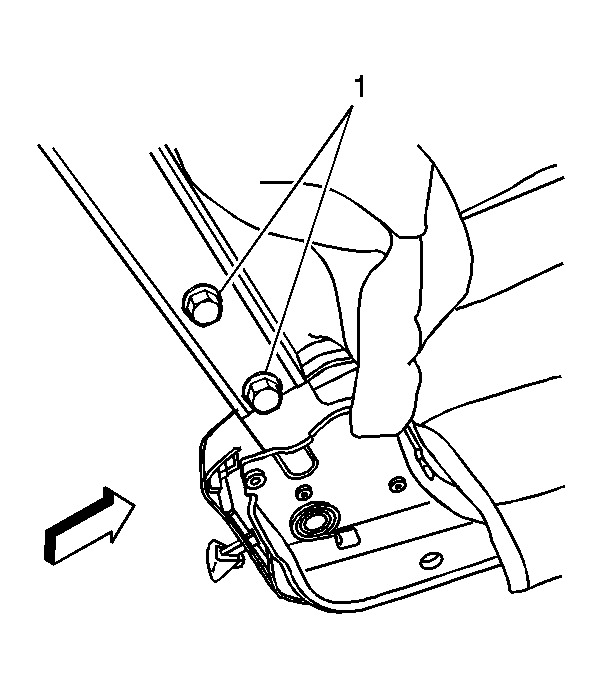

    3. Fig 1: View Of Seat Back Frame Bolts
    GM841683Courtesy of GENERAL MOTORS CORP.
  3. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Rear (50/50 Split - 60/40 Split)  or Seat Back Cover and Pad Replacement - Rear (Bench) .
